The new generation workhorse
Built to tackle the toughest demands while staying adaptable to tomorrow’s challenges.
Watch video

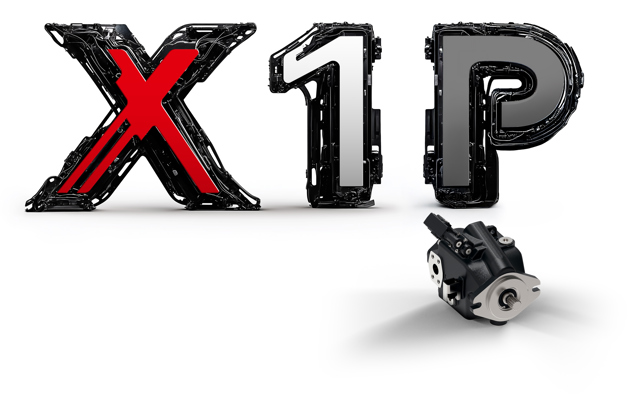

Introducing X1P, the next step in open circuit pump evolution.
Designed for durability and peak performance, X1P is built to tackle the toughest demands while staying adaptable to tomorrow’s challenges. This isn’t just another pump — it’s the new standard for those who refuse to compromise.
The new generation workhorse.

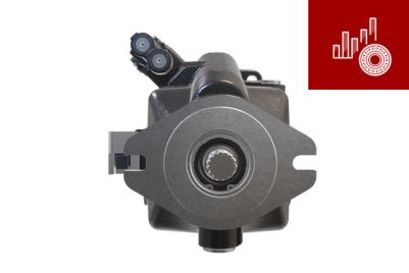

- 280 bar unleashed in the market’s shortest 75cc package
- Predictable flow delivery with substantially lower hysteresis
- Long-hour operator comfort with noise-optimized housing

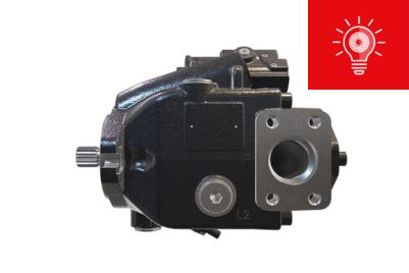

- Shortest 75cc pump on the market thanks to patent-pending swashplate bearing design — up to 25 mm
- Angular control mounting inherently reduces leak points
- Circularity is maximized by reusing many components designed for simplified remanufacturing

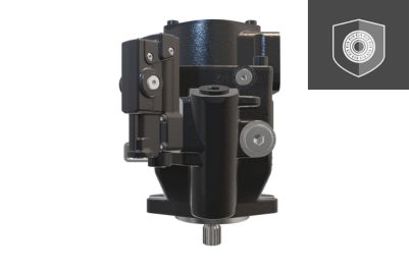

- Next-level robustness built from a stable of field-proven hardware
- An ultra-high standard temperature rating of 115°C brings toughness to the harshest conditions
Documents
Related products

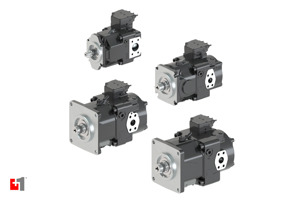

The D1P pump family meets the highest pressure and flow needs of new machine applications requiring variable displacement open-circuit flow. Designed for heavy-duty mobile applications, D1P pumps offer displacement options up to 260cc [15.87 in3], maximum working pressures of 350 bar [5,076 psi], and input speeds up to 2,500 rpm. These pumps are available globally with a variety of control options and are robust for harsh conditions.

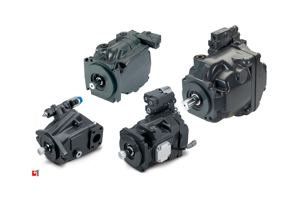

Series 45 family pumps are a high-performing and flexible option for new machine applications needing variable displacement open-circuit flow. With displacements from 25cc to 147cc [1.53 in3 to 8.97 in3], speeds up to 3,600 rpm, and pressures up to 310 bar [4,495 psi], these pumps are designed to exceed the demanding requirements of the mobile equipment marketplace. Each frame within the Series 45 family is uniquely designed to optimize performance, size, and cost. Series 45 pumps are produced in North America, Europe, and Asia.
Related applications
Space is limited on construction sites, and there are people working everywhere. Contractors need machines that can safely maneuver in a tight spot. At the same time they still need to be powerful enough to get the job done. At Danfoss, we deliver the components, software, and controls that enable your machines to run safely, efficiently and effectively.
Cranes and other large handling machines are required to operate within very specific load ranges. Danfoss provides pressure transmitters that supply load limiting systems with crucial data, safeguarding your equipment, your load, and your operator.
Rough, sloping terrain and cramped working conditions call for robust and reliable forestry machines. We make sure you can manage everything from cutting trees and transport to preparing the forest floor for replanting. We have the smart hydraulic solutions your machines need for precise and efficient forestry operations.
