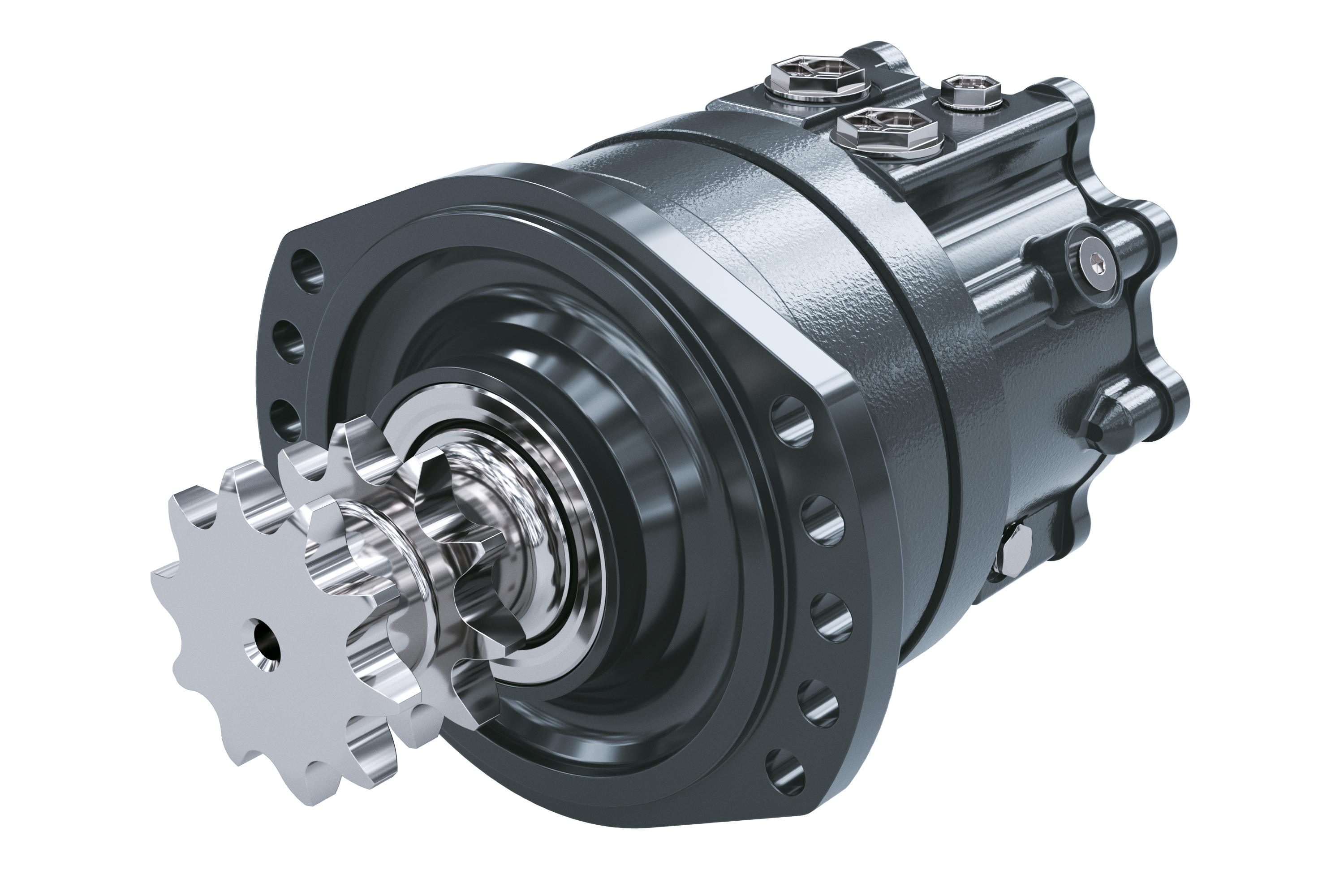

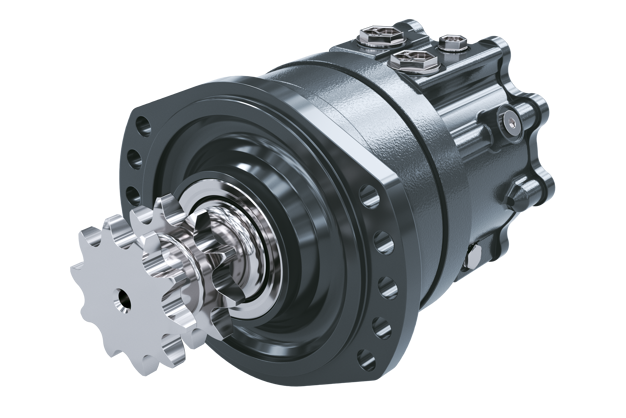

CLM S cam lobe motor

CLM 4 S

Mighty in power

The CLM S is the first in the new range of cam lobe motors from Danfoss, designed to match high performance and efficiency with the evolving demands from customers in the construction industry.
Designed for Skid Steer Loaders the CLM S is up to 33% shorter in length than other cam lobe motors, reducing space requirements and making installation easier.
THORX motors features a new and efficient two-speed technology that makes it possible to reduce shock at speed changeover by 70%, improving machine handling and operator comfort.
We offer rapid prototype delivery which will allow your application to get faster into the market.

Designed for construction

The CLM S motor is designed to fit perfectly for construction machines with chain drives, such as skid steer loaders, using existing and proven technology that Danfoss has refined to meet the high demand of today. These motors have been optimized in every way by taking into account the following factors: physical size, lifetime, features, and installation cost.

Features and benefits

Achieve better performance at low RPM and improve your high-speed efficiency with THORX motors.
THORX offer you the most efficient two-speed technology in the industry.
Improve robustness of chains and achieve easier integration and assembly of machine thanks to the compact size of THORX motors.
Improve two-speed shifting thanks to the THORX design which delivers 70% shock reduction and a consistent and short response time - even at low temperature.
The CLM S offer the strongest parking brake in the market. The brake is designed to withstand 100 dynamic emergency stops during machine lifetime.
The CLM S motors features a wide range of mounting interfaces and shaft options to suit perfectly onto your machine.

Unleash the power

Find out how THORX motors can unleash the power of your machine today

Product range

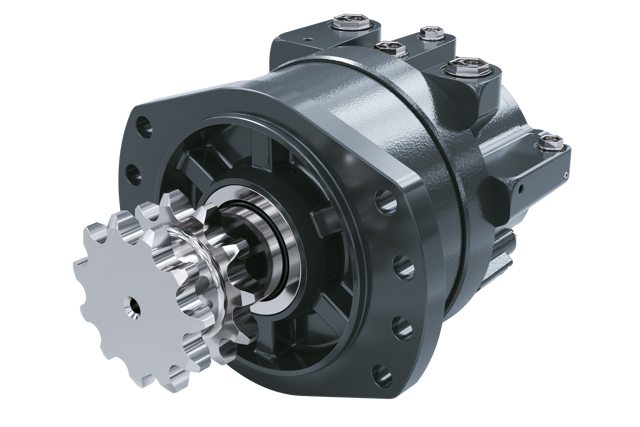

4 S

Features a market-leading compact size (221 mm in length), max displacement of 400 cc/rev, and max speed of 875 rpm.

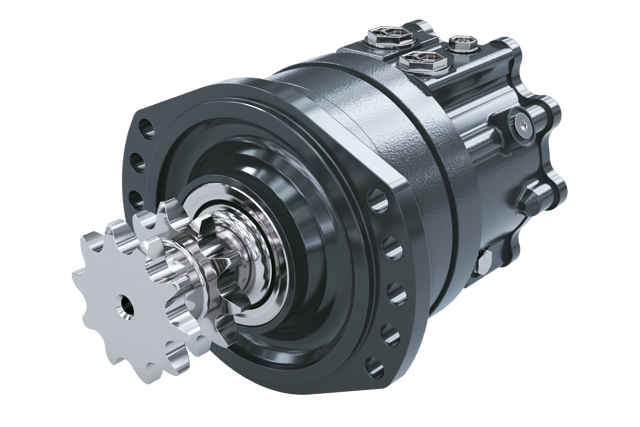

8 S

Ideal for larger skid steer loaders, the 8 S has a max displacement of 820 cc/rev, max speed of 465 rpm, and has a two-speed speed sensor option.

Documents

Documents
Type	Name	Language	Updated	Download	File type

Related products

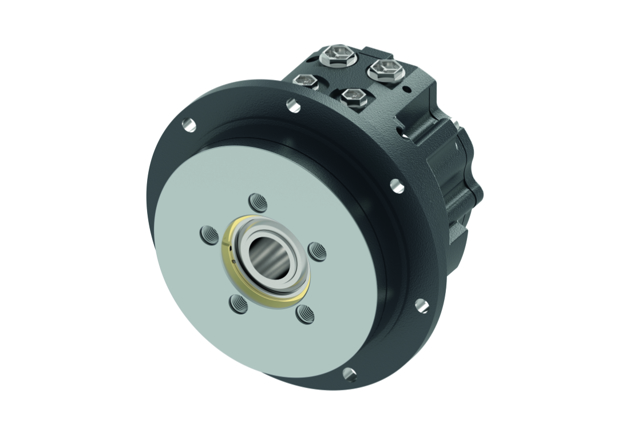

CLM C cam lobe motor

The new CLM 5 C motor is the perfect cam lobe motor for drum drives on road rollers and other types of compaction equipment.

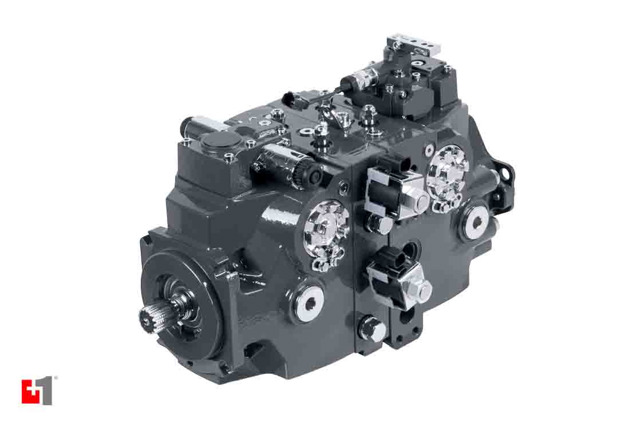

H1T tandem axial piston pumps

H1T tandem pump is the MVP of many applications – from skidsteers to loaders, harvesters, work platforms, sweepers and more

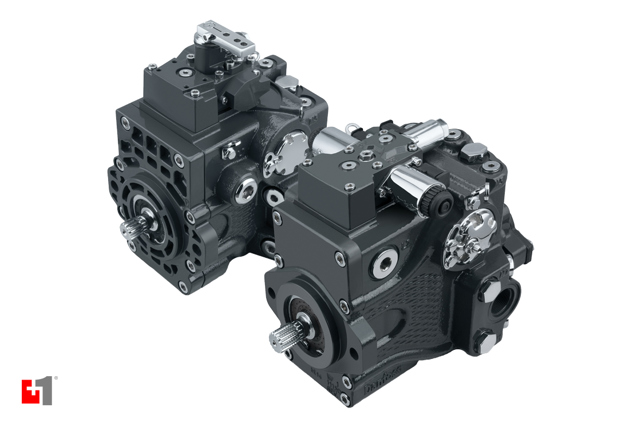

MP1 axial piston pumps

The Danfoss MP1 is the next evolution in closed circuit axial piston pumps. MP1 pumps offer the performance needed for today's small- to medium-sized equipment.

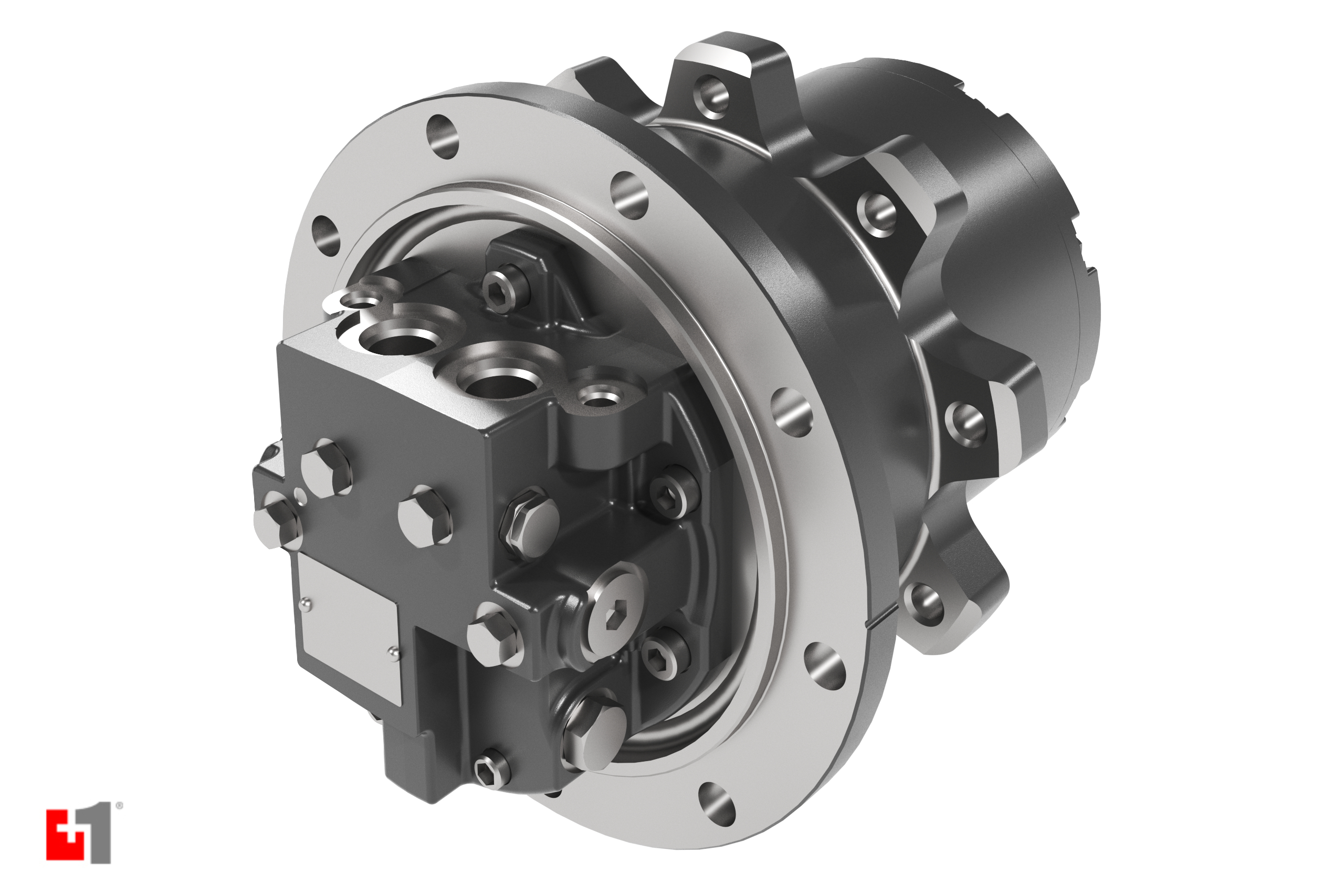

BMV integrated drive motor
