High starting torque and high overall efficiency

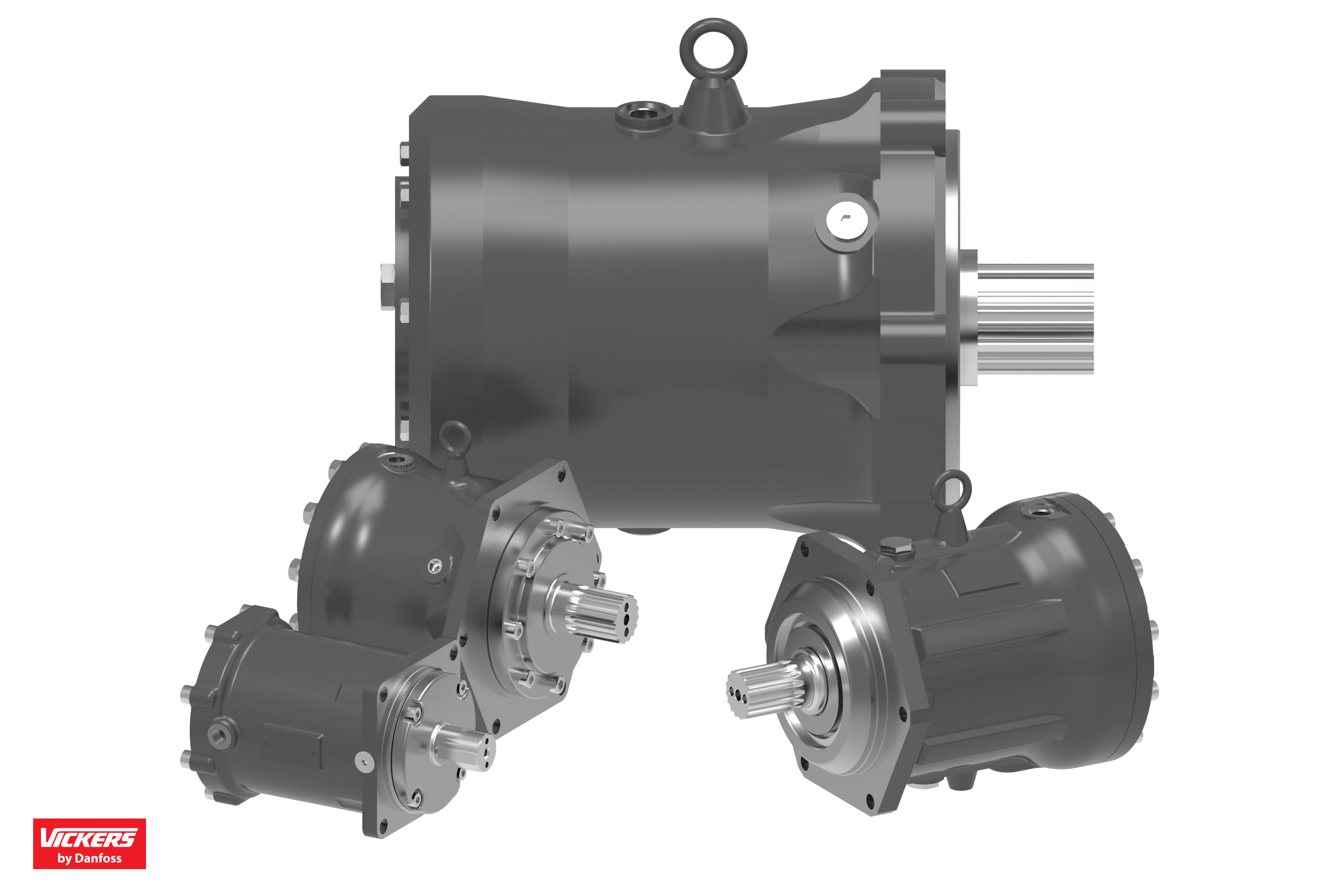

Perfect for applications such as directional drilling machinery, top head drives and marine winches, Dowmax® ME axial piston motors feature a double swash plate design and multiple opposed pistons.

Dowmax ME motors are part of the Vickers® by Danfoss line of industrial solutions​

  • Technology - Axial piston​
  • Displacement - 99-4,097cc (6 to 250 cu in)​
  • Continuous pressure rating - 275 bar (4,000 psi)

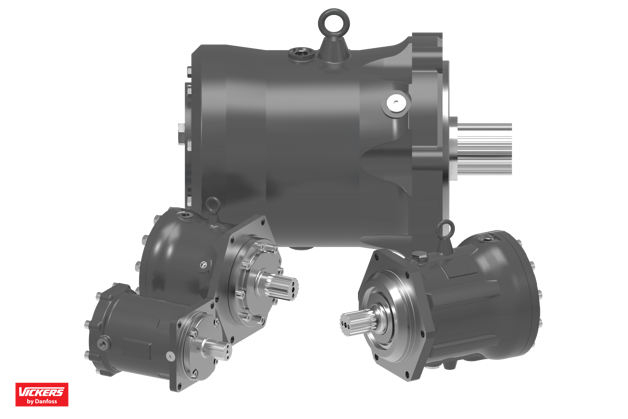

IS HYD Danfoss DOWMAX AXIAL PISTON MOTORS Bw2 V

Smooth operation at low speeds​

The Dowmax ME’s multiple pistons and double swash plate design allows for smoother operation at speeds as low as  1 rpm. Speed sensor options are available.​

Unaffected by thermal shock​

Good for starting at cold temperatures, Dowmax ME motors feature a flat, pressure-compensating valve plate that prevents thermal shock.

Options available for a wide range of applications​

Compact and easy to install, all Dowmax ME motors feature a robust construction with options for:​

  • 13 different displacements​
  • Numerous shaft styles​
  • Various mounting configurations ​
  • Options for mechanical brake, gear and more.

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide Dowmax ME motor User Guide - 日本語 Japanese Multiple 17 Apr, 2023 5.2 MB .pdf
User guide Dowmax ME Motor with Planetary Gear User Guide English United States 03 May, 2023 1.8 MB .pdf

Applications

Applications

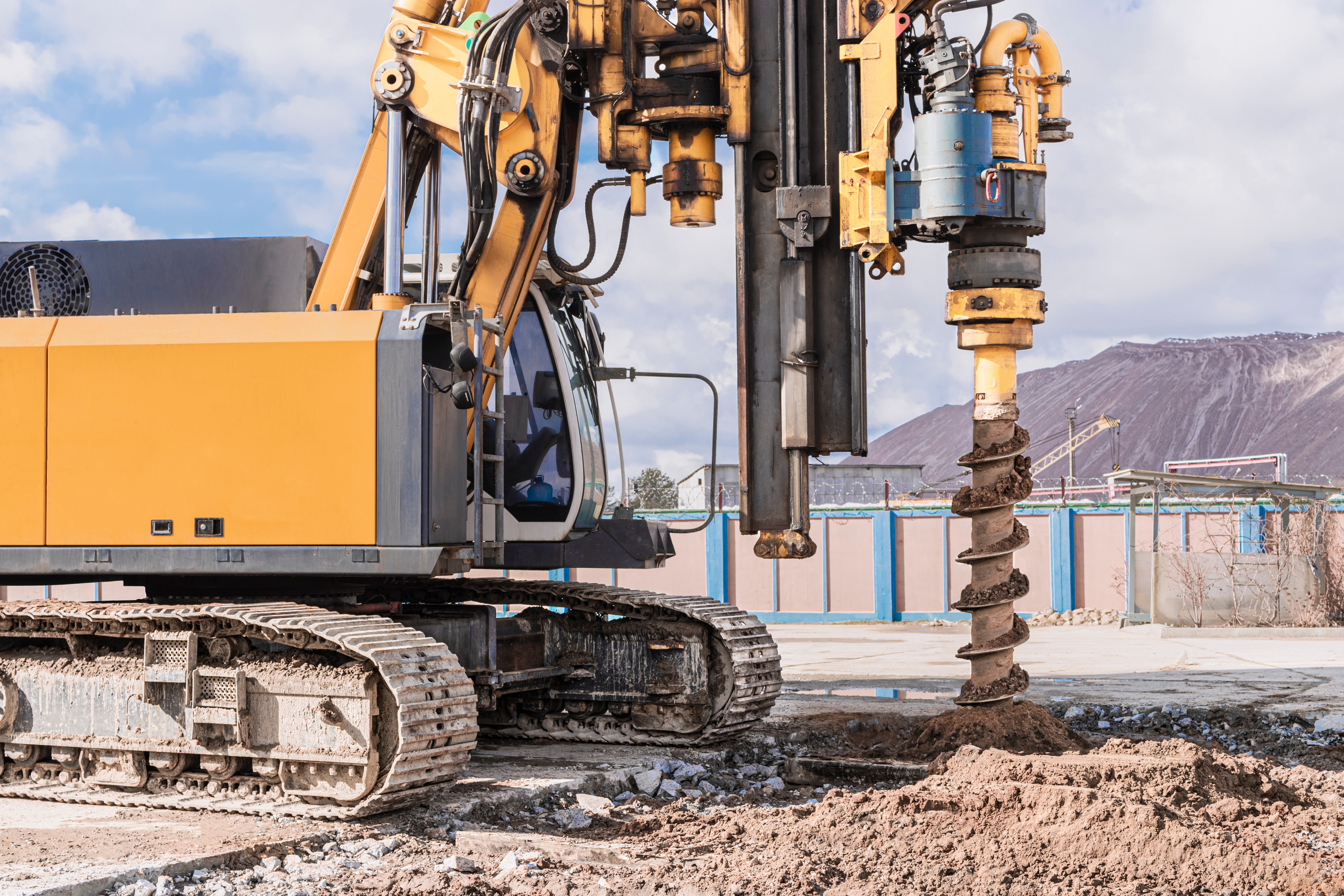

  • Directional drilling machinery​
  • Top head drives​
  • Marine winches​
  • Industrial drives​
  • Locks and dams
Designed to perform, built to last

​A leader in hydraulics for over 100 years, the Vickers by Danfoss portfolio of industrial solutions deliver legendary performance, even under the most extreme conditions.
