PVG Ex

PVG-EX proportional valve

Reliable in Ex hazardous areas

Our PVG-EX program is an explosion proof PVG designed to be used in Ex hazardous areas like mining and oil and gas industries.

The PVG-EX shares the same features as the standard PVG. It is a hydraulic load sensing (LS) valve designed to give maximum flexibility. From a simple load sensing directional valve, to an advanced electrically controlled load-independent proportional valve.

The PVG-EX modular system makes it possible to build up a valve group to meet the different functional requirements precisely. Furthermore, the compact external dimensions of the valve remain unchanged whatever combination is specified.

Features and benefits

Load-independent flow control:
- Oil flow to an individual function is independent of the load pressure of this function
- Oil flow to one function is independent of the load pressure of other functions
Section flow up to 130 lpm [34 US gal/min]
Good regulation characteristics
Load sense auxiliary ports for external adjustment of target pressure
Electrical, mechanical or hydraulic actuation
Energy-saving
Up to 12 basic modules per valve group
Several types of connection threads
Compact design and installation

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
User guide	PVG-Ex 32 128 256 Proportional Valve Group Technical Information	English	Multiple	01 Nov, 2022	31.1 MB	.pdf
Installation guide	PVG-EX Installation Guide	English	Multiple	01 Nov, 2022	25.7 MB	.pdf

Related products

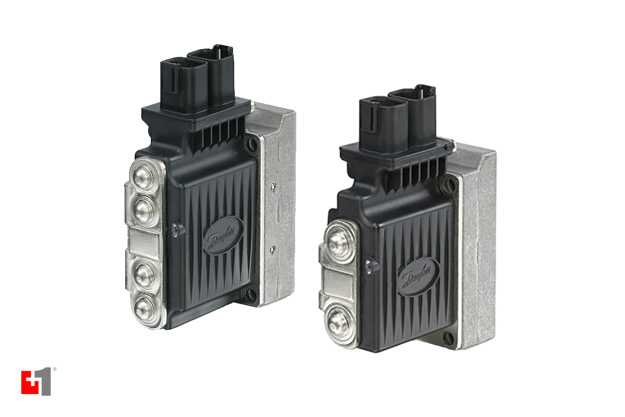

PVE S7 electrohydraulic actuators

The PVE S7 models are backwards compatible with PVE Series 4. The new PVE Series 7 has a number of proven-in-use features that deliver the high reliability expected of a Danfoss Power Solutions product.

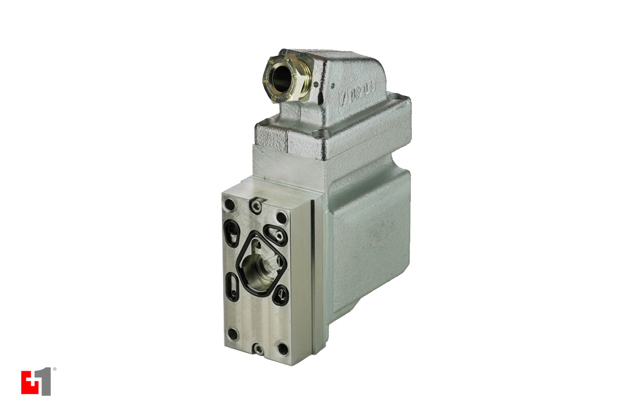

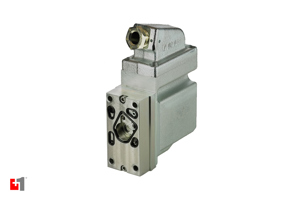

PVE-EX electrohydraulic actuators

PVE-EX protects the interior connectors and embedded electronics, while a protective coating on the exterior provides superior corrosion protection.

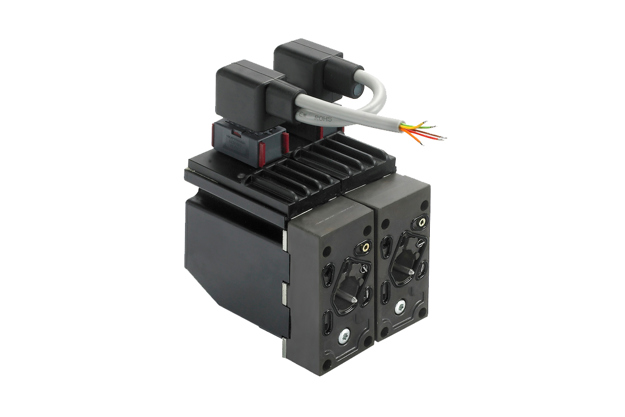

PVED electrohydraulic actuators

Get fast, accurate and intelligent operation with our plug and perform PVE actuators – under any operating and environmental conditions.

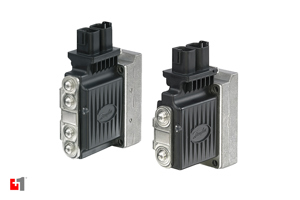

PVE electrohydraulic actuators
