Hydrokraft® heavy-duty closed-circuit piston pumps

  • Overview
  • Product range

Tandem Mounting

Get maximum installation flexibility with the compact size and tandem mounting capability of TVW series heavy-duty variable closed-circuit piston pumps.

Expanded functionality

Hydrokraft TVW series transmission pumps feature a through-drive design, an integrated FIST circuit, and a wide range of controls, which expands the pump’s application and functionality.

Multiple combinations to meet your needs

TVW Series pumps come with a wide range of available integrated charge and pilot pressure pump combinations for single and combination units. Their through-drive design allows for multiple pump installations from a single shaft.

Reliable operation and longer life

TVW series pumps feature axial piston pumps with a swash plate design for reliable operation and a longer life. Plus, the pump’s rotating and pressure-loaded parts are pressure-balanced for greater efficiency and serviceability.

Special design for closed-loop applications

Build complete closed-loop systems for charge flow and flushing using our standard transmissions circuits with integrated valves and filters.

Product range

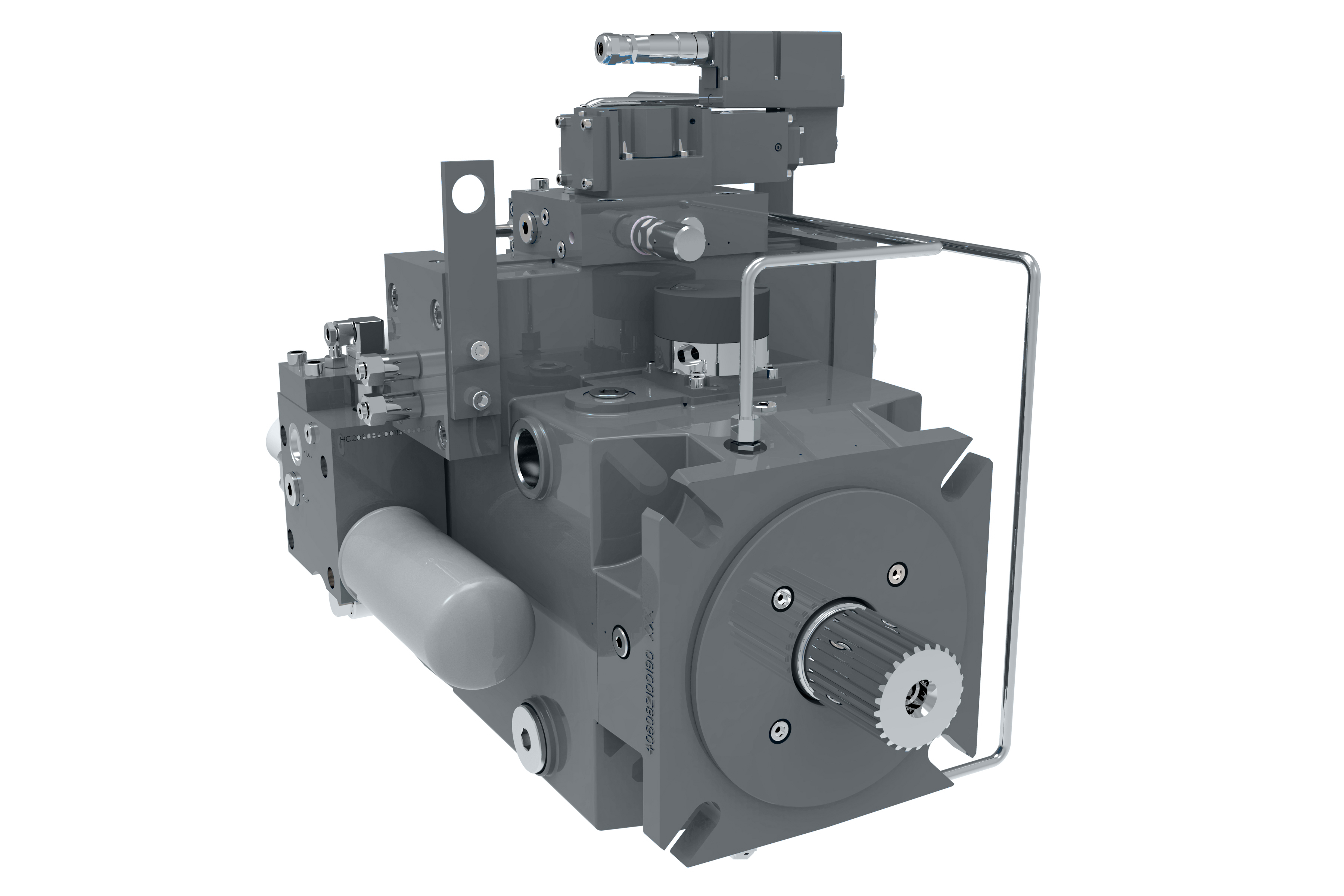

Hydrokraft TVW Series piston pumps

  • ​Oversize shaft and shaft bearings​
  • Large charge flow rates for low system temperature
  • Fast response times
  • Technology - Axial piston
  • Displacement – 130 - 750 cc (8.0 to 45.0 cu in)
  • Continuous pressure rating 350 bar (5,076 psi)
  • Peak pressure up to 420 bar (6090psi).
  • Rated speed up to 1800 rpm
