Winner™ by Danfoss - Cost-Effective Standard Performance Solutions

Built with the same commitment to quality as our premium products, Winner offers  a full line of solutions that can meet any standard performance need at a competitive price. Surrounded by a complete engineered system of qualified fittings and assembly machines, as well as outstanding value-added services, the Winner series is a dependable choice for leak-free performance, lower maintenance demands and reduced cost of ownership.

  • Meets EN and SAE industry specifications
  • Consistent design and build quality
  • Complete system-engineered offerings

Features

A full line of standard performance solutions that often surpass industry benchmarks in testing

Surrounded by a complete engineered system for all aspects of assembly and manufacturing, including qualified fittings

Produced with a commitment to manufacturing excellence: lean methodologies, clear quality guidelines and ISO 9001 certification

Brings access to comprehensive value-added engineering services

Fully documented capabilities, compatibility and assembly instructions

Carbon steel Winner fittings with Dura-Kote™ plating are rated for up to 1,000 hours of red rust corrosion resistance, exceeding SAE J514 standards

Benefits

A broad portfolio of cost-effective and dependable solutions that can meet any standard application need

Hoses and fittings qualified together for safe, leak-free operations that reduce maintenance costs and equipment downtime

Access to experienced engineers who can specify, design, test, and deliver entire hose assemblies quickly and efficiently

Value-added services that enhance competitiveness, productivity and agility in the market

Detailed supporting documentation minimizes the risk of assembly failures due to errors and enables the best possible performance

The confidence and convenience of working with one world-class supplier that can support you anywhere on the planet with short lead times and reliable delivery

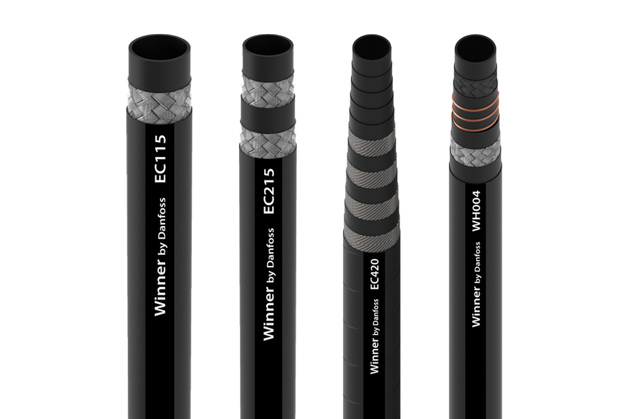

Winner EC115 (1SC) is a one-wire braided hydraulic hose designed for moderate applications that still require critical hose certifications.

Key applications: Hydraulic systems with petroleum and water-based fluids, suction and return manifolds, main engine gear lube, steering

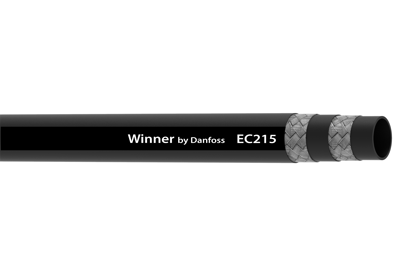

Winner EC215 (2SC) is a two-wire braided hydraulic hose designed for moderate applications that still require critical hose certifications.

Key applications: Hydraulic systems with petroleum and water-based fluids, suction and return manifolds, main engine gear lube, steering

Winner EC118 (1SC) is a 210-bar constant pressure hydraulic hose designed for moderate applications that still require critical hose certifications. One-wire braided for size 4’ to 8’ and two-wire braided for sizes 10’-18’.

Key applications: Agricultural applications such as tractors, planters and harvesters with hydraulic systems with petroleum and water-based fluids, suction and return manifolds, main engine gear lube, steering

Winner EC082 (1SC) is a one-wire braided flexible hose designed for pilot lines. Its low outer diameter and better bending radius, compared to normal hydraulic hoses of the same internal diameter, make it easier to route the pilot line hoses appropriately in small spaces.

Key applications: Pilot lines and hydraulic systems with petroleum and water-based fluids.

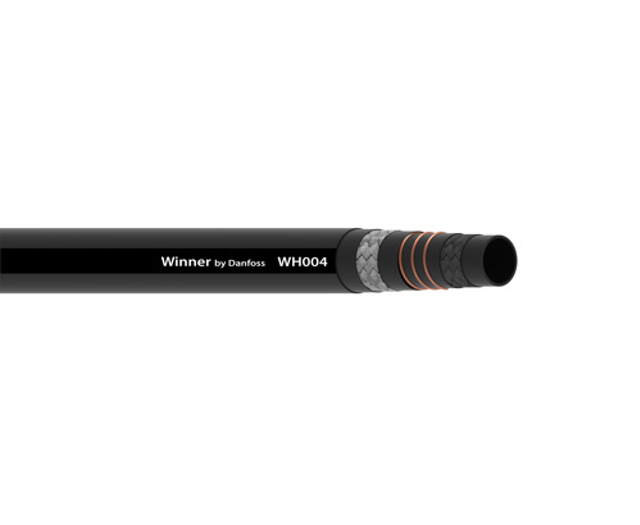

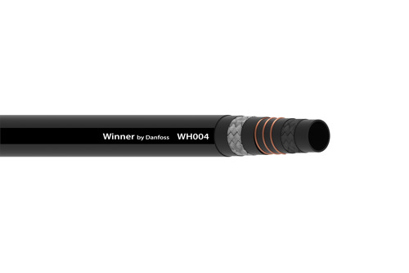

Winner WH004 (R4) is a textile suction and return hose featuring helical and anti-static wire and oil-resistant NBR tubing. High flexibility and a small bending radius make it easy to install and route.

Key applications: Suction and return manifolds for hydraulics, crude fuel, lubricating oils, gasoline, air, water, and chemical transfer

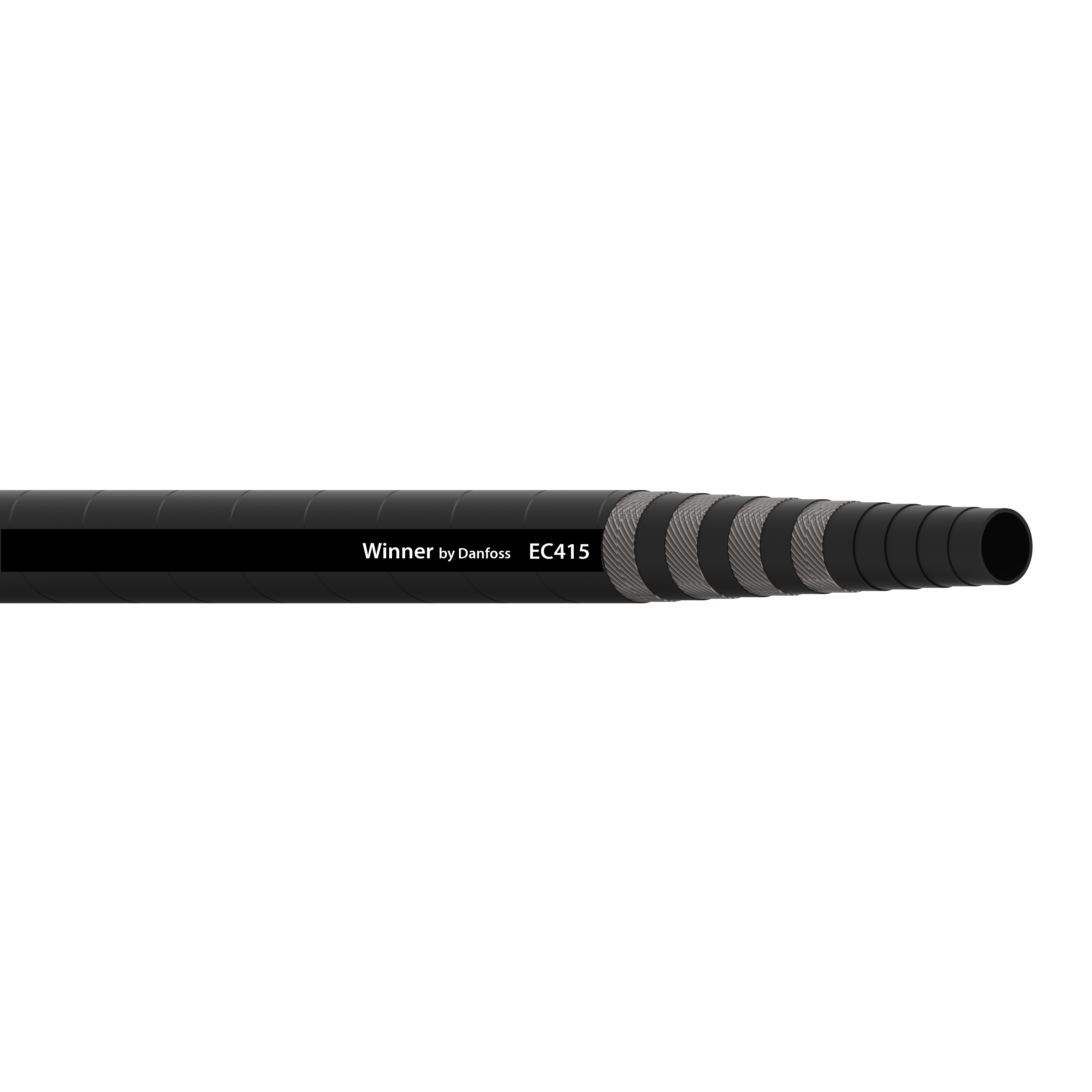

Winner EC415 (R12) is a four wire spiral hose according to SAE 100R12 for Americas.

Key applications: Hydraulic systems service of high pressure with petroleum and water based fluids, for general use.

Winner EC512 (4SH) is a four wire spiral hose according to EN 856 4SH for Europe Middle East and Africa.

Key applications: Hydraulic systems service of high pressure with petroleum and water based fluids, for general use.

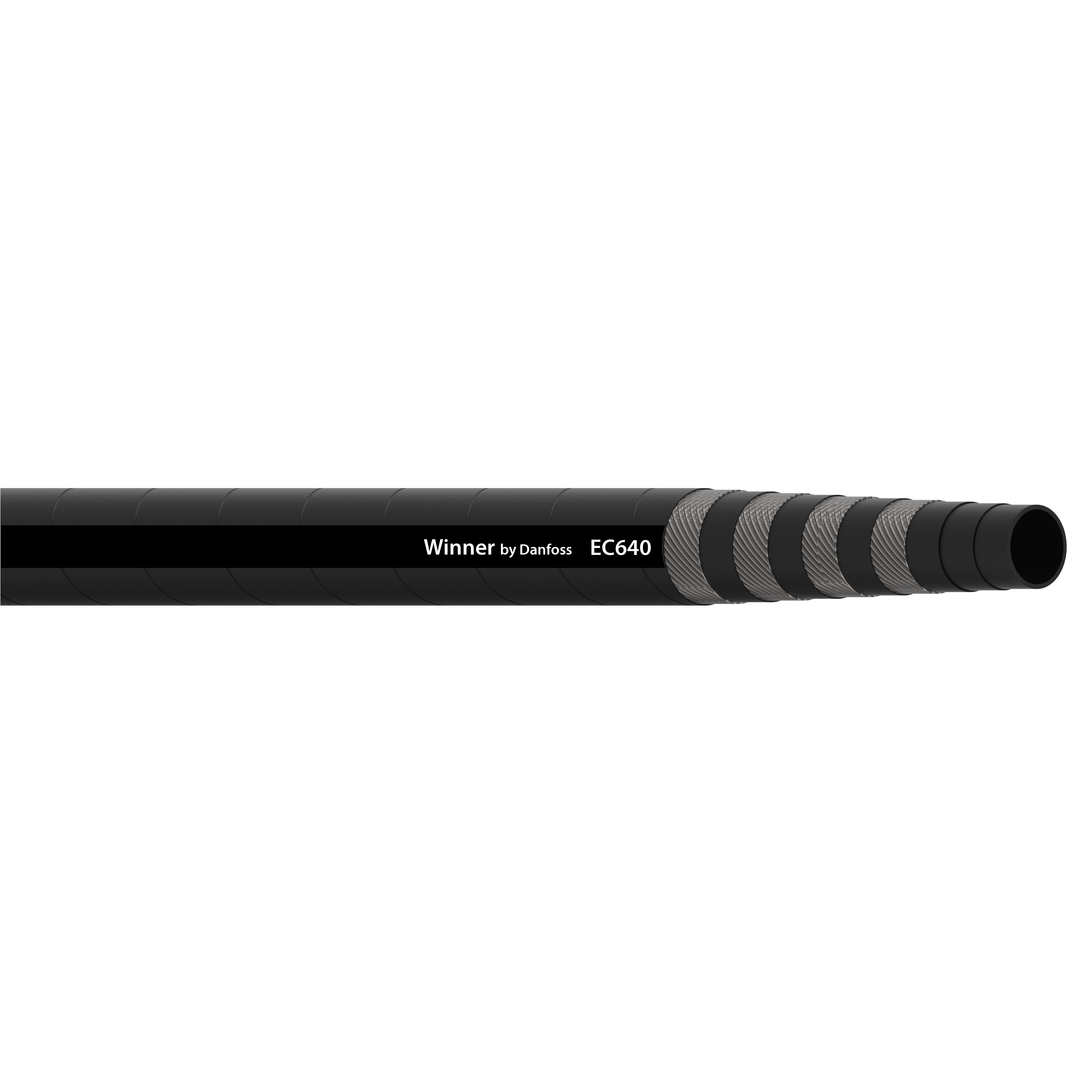

Winner EC640 (R15) is a four&six wire spiral hose according to ISO 18752-CC, SAE100 R15 for Asia Pacific regions.

Key applications: Hydraulic systems service of high pressure with petroleum and water based fluids, for general use.
