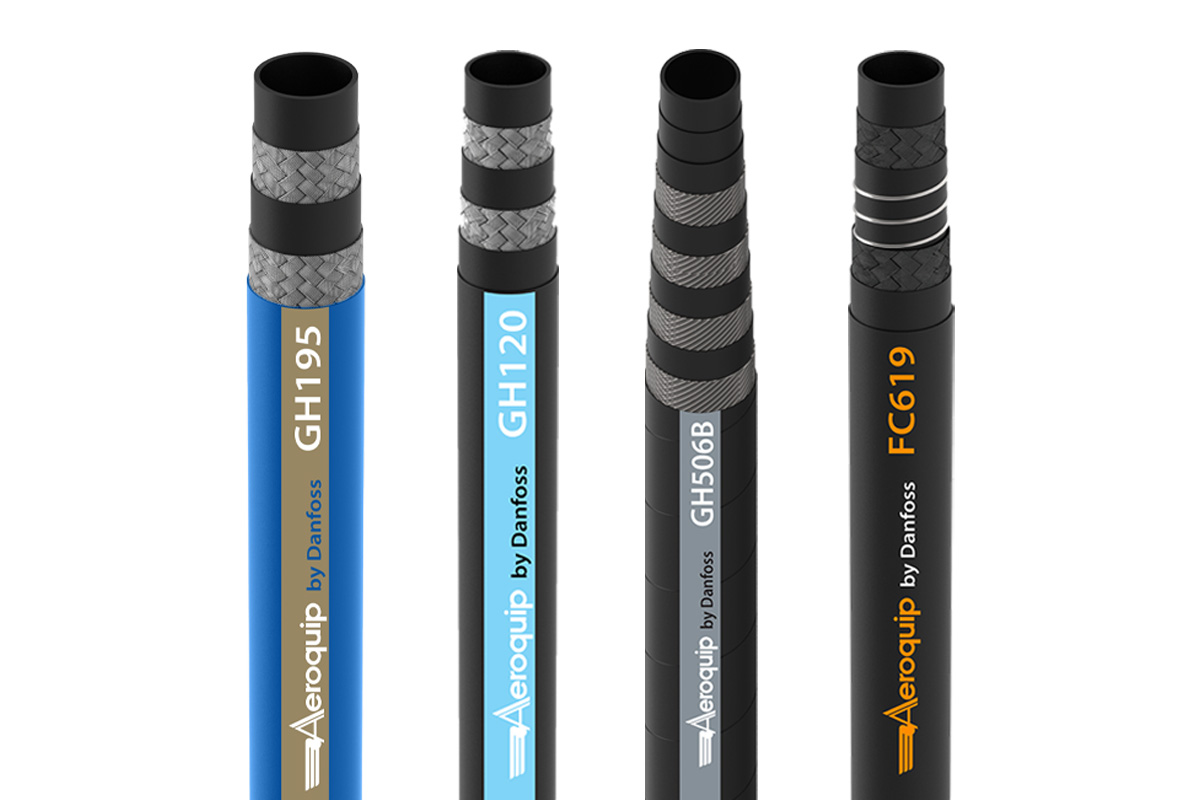

Aeroquip premium speciality hoses - for specific challenges

Discover Danfoss premium speciality hoses for high- and low-temperature applications, with superior durability and versatility.

High- and low-temperature hoses

Danfoss AQP hoses offer unmatched reliability and durability in high- and low-temperature applications. Constructed with patented elastomeric materials, it outlasts conventional hoses up to five times longer. With an extreme temperature range of up to +150˚C (+302˚F) and to -57˚C (-70˚F) and compatibility with a variety of fluid types, it provides excellent performance above SAE and EN standards. Using AQP hose can help reduce inventory and streamline operations by eliminating the need for multiple hoses for different fluid types.

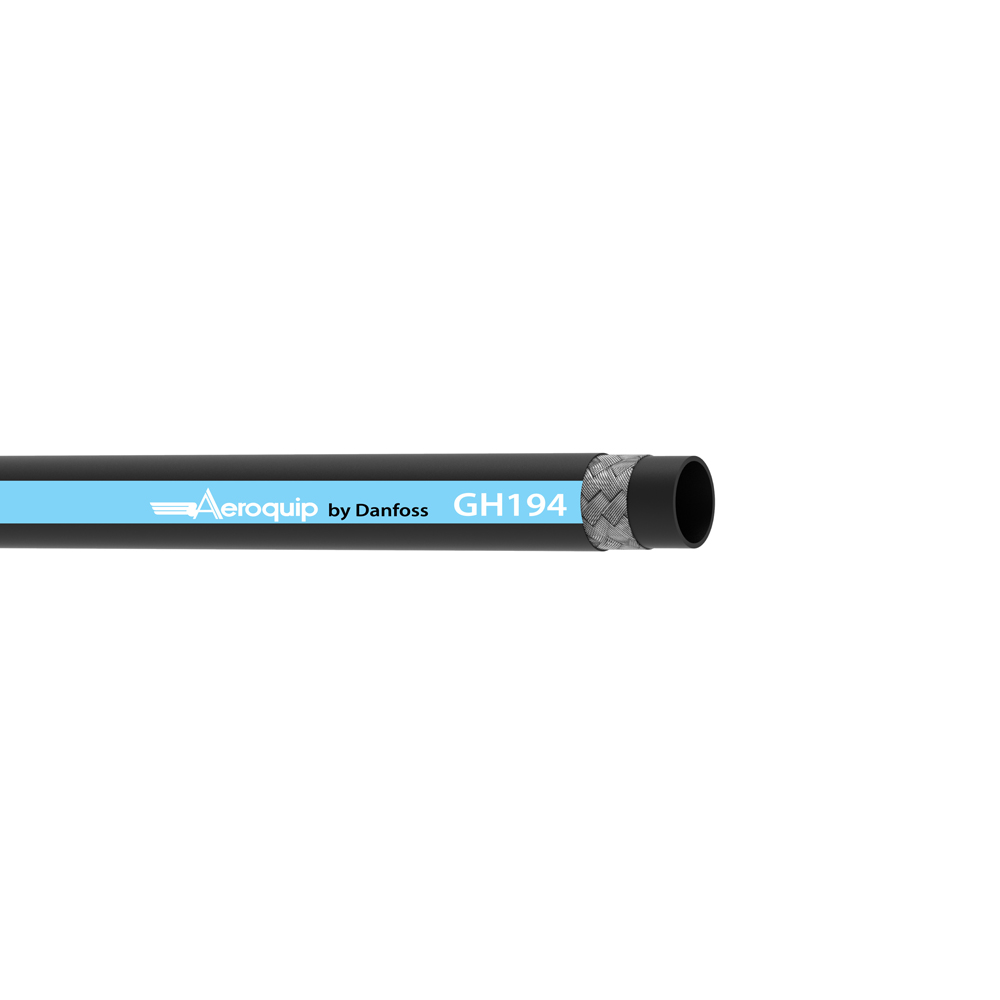

Aeroquip GH194 AQP high temp one wire braided hose (1SC)

With excellent fluid compatibility and broad temperature resistance from -40°C to 150°C (-40°F to 302°F), GH194 hoses significantly outperform the EN 853 standard, offering:

33% higher temperature rating
6% better pressure rating
Support for 50,000 more impulse cycles at 150°C than standard options support at 100°C

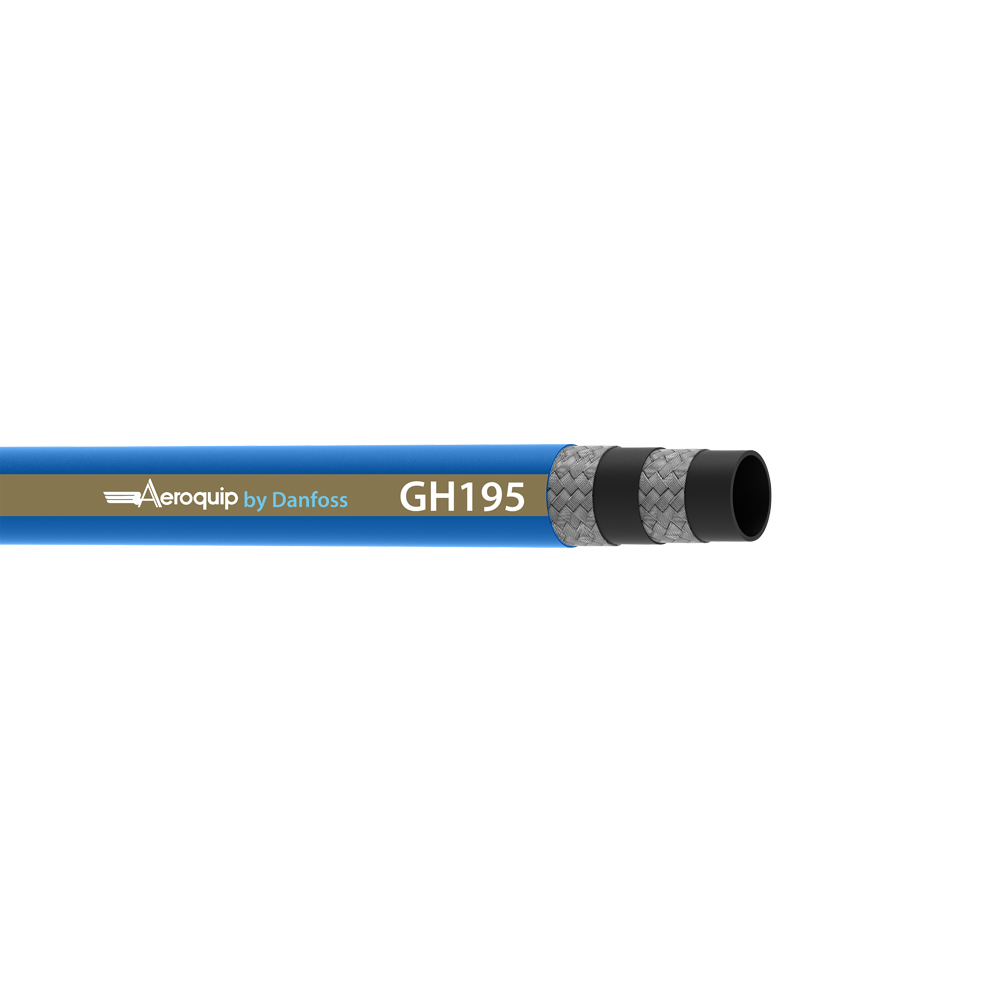

Aeroquip GH195 AQP high temp two wire braided hose (2SC)

With excellent fluid compatibility and an operating temperature tolerance up to 150°C (302˚F), GH195 hoses significantly outperform the EN 853 standard, offering:

33% higher temperature rating
10% better average pressure rating (in sizes -4 to -16)
Support for the same number of impulse cycles at 150°C that standard options support at 100°C

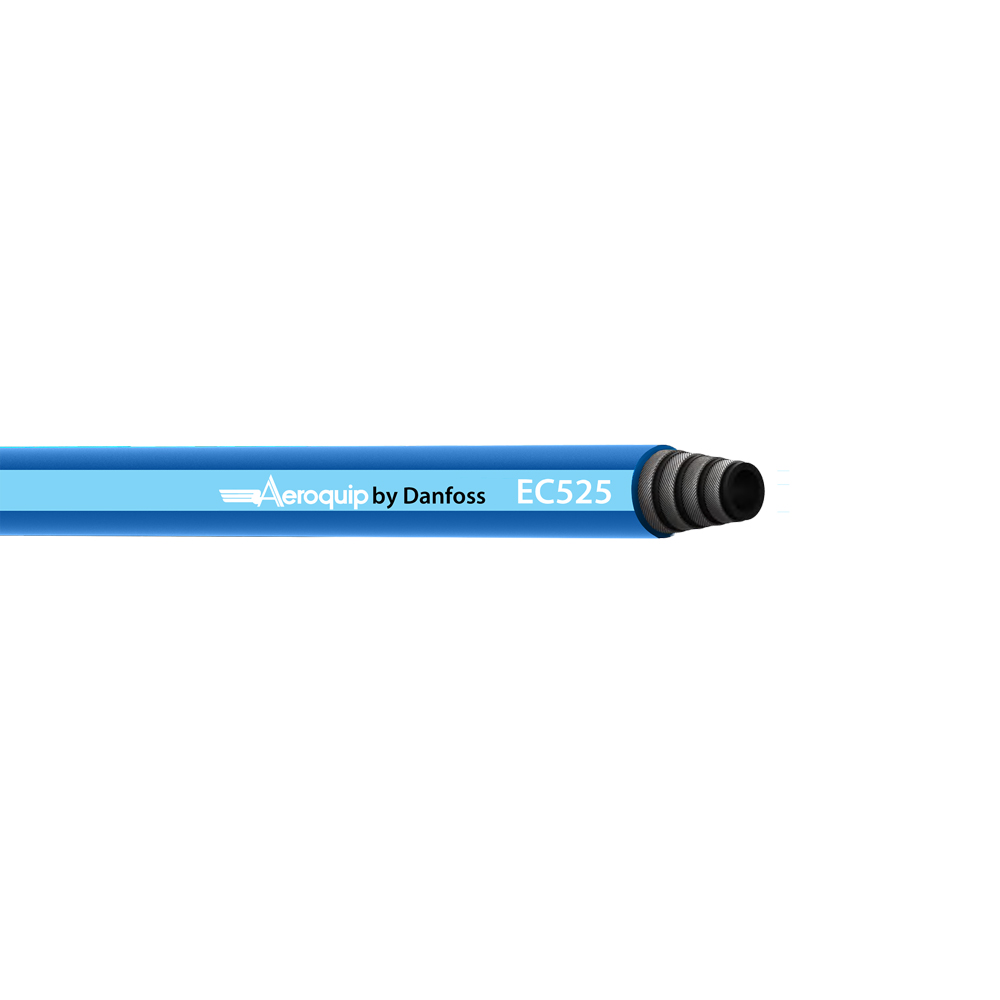

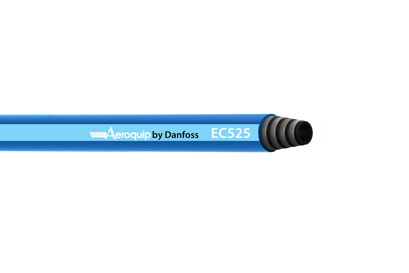

Aeroquip EC525 AQP high temperature four spiral hydraulic hose (100R12)

Suited to demanding high pressure and high temperature applications, EC525 hoses significantly outperform the SAE J517-100R12 and EN 856 R12 standard, offering:

23% higher maximum operating temperature
19% higher average operating pressure
A high-rated impulse cycle lifetime even at 150°C

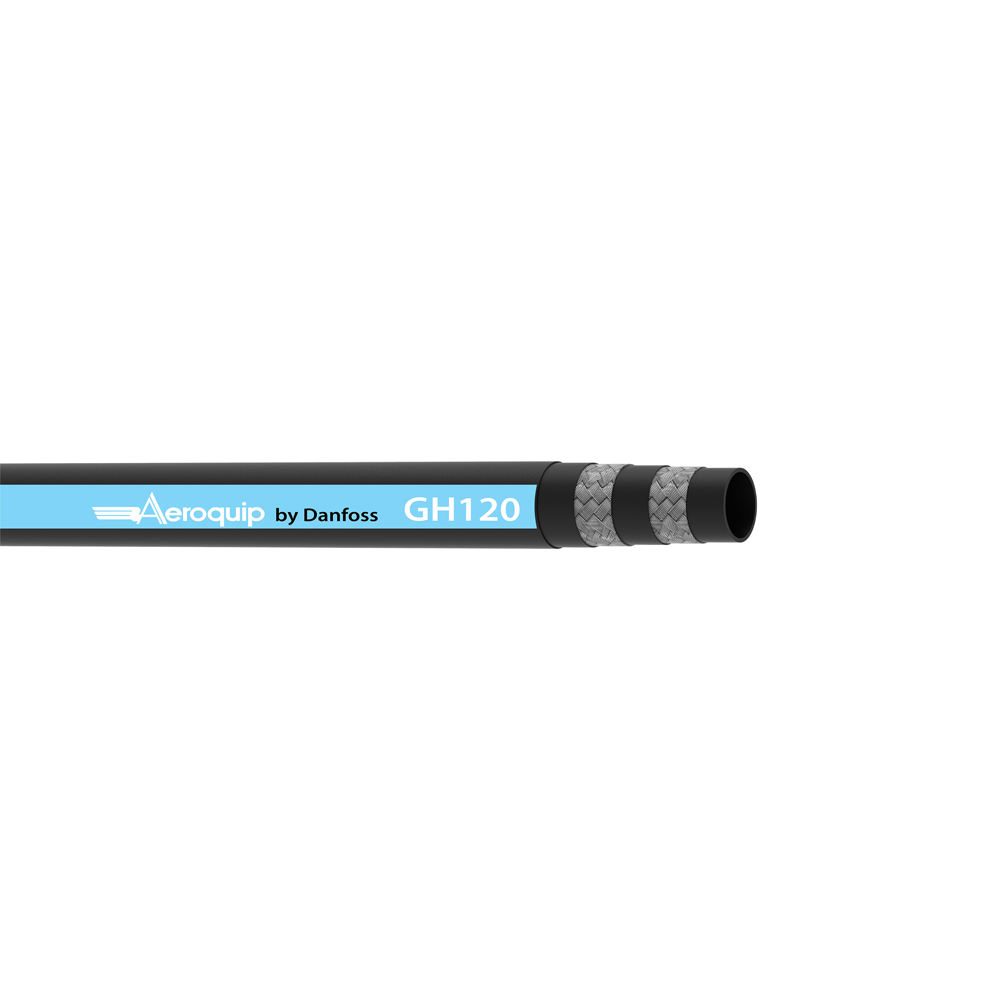

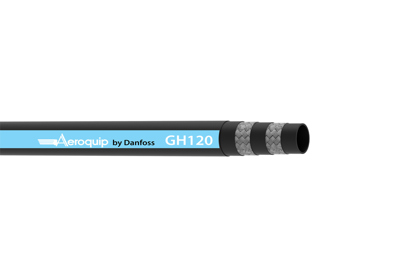

Aeroquip GH120 low temperature two wire braided hydraulic hose (2SC)

With an operating temperature tolerance as low as -57˚C (-70˚F) and a tight bending radius that makes assembly installation faster, easier, and more cost-efficient, GH120 hoses significantly outperform the EN 857 standard, offering: Suited to demanding high pressure and low temperature applications, EC810 hoses significantly outperform the SAE J517-100R12 and EN 856 R12 standard, offering:

26% lower temperature rating
9% better average pressure rating (in sizes -4 to -16)
35% tighter minimum bending radius
300,000 impulse cycle lifetime at 100°C, far above the standard requirement of 200,000 cycles

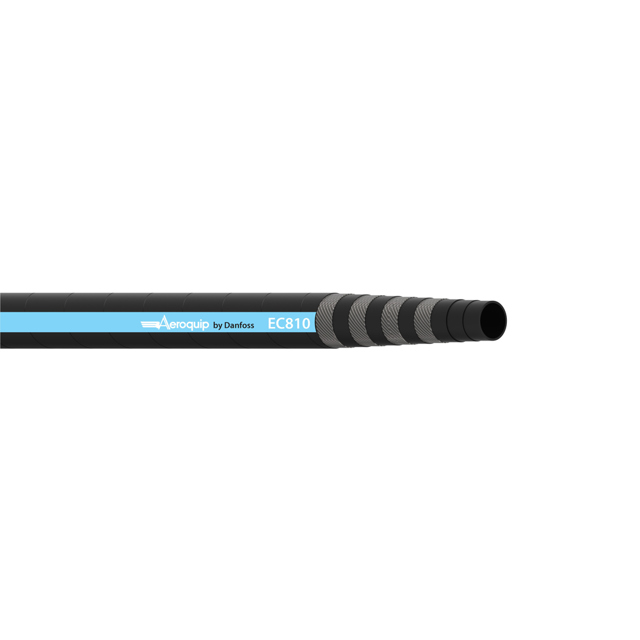

Aeroquip EC810 low temperature four/six spiral hydraulic hose (100R12)

Suited to demanding high pressure and low temperature applications, EC810 hoses significantly outperform the SAE J517-100R12 and EN 856 R12 standard, offering:

43% lower minimum temperature rating
39% higher average operating pressure

Suction hoses

Danfoss suction hoses are designed with AQP inner tube technology, providing better temperature resistance and chemical durability for longer-lasting performance in various applications. The SAE 100 R4 textile reinforced hydraulic hoses is primarily used for oil suction and delivery in hydraulic systems and consists of a tube, reinforcement, and cover. The high-quality, black, smooth, and oil-resistant synthetic rubber tube makes it a versatile hose for oil delivery.

Demanding operating conditions, such as high temperatures or harsh chemicals, can easily degrade the efficiency, performance and safety of hydraulic suction hoses. Engineered with patented AQP technology for superior temperature resistance and chemical durability, our textile- reinforced suction hoses deliver longer-lasting performance in a wide range of applications. With an extremely high vacuum rating, our suction hoses are also very resistant to collapsing or buckling, enabling more reliable and efficient operations.

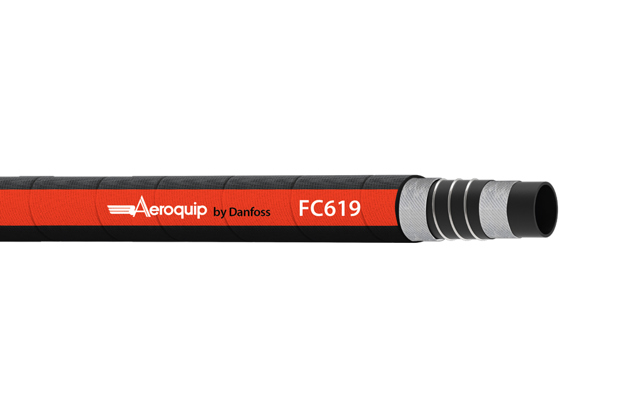

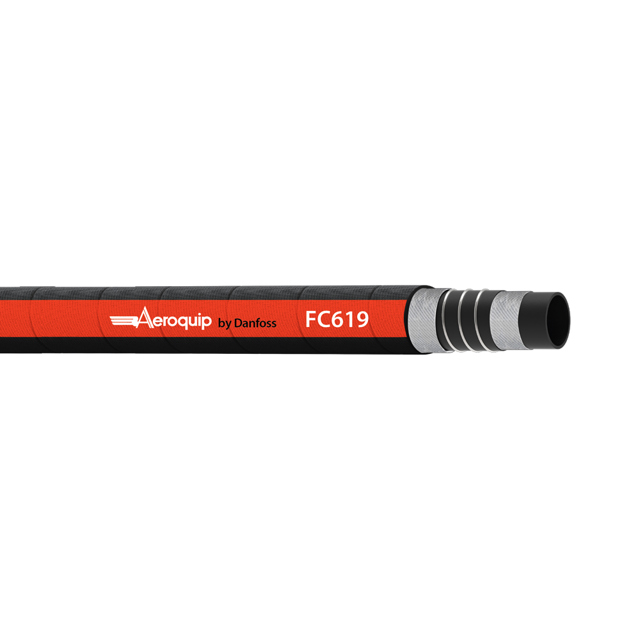

Aeroquip FC619 suction one wire braided hose (R4)

With a tighter bending radius that simplifies installation and broad chemical resistance, FC619 hoses significantly outper- form the SAE 100R4 standard, offering:

35% higher maximum operating temperature
1/3 the minimum bending radius (in sizes -12 to -48)
More than a 5X higher vacuum rating

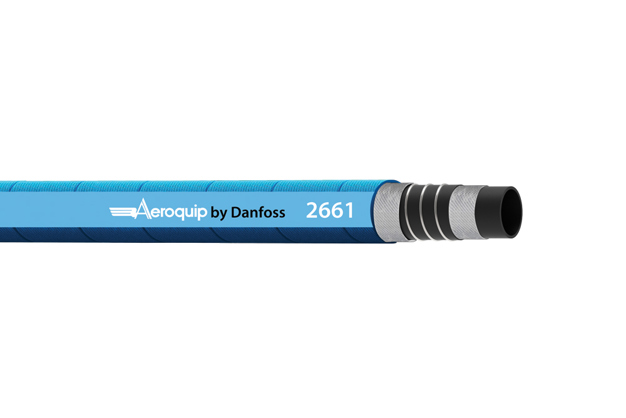

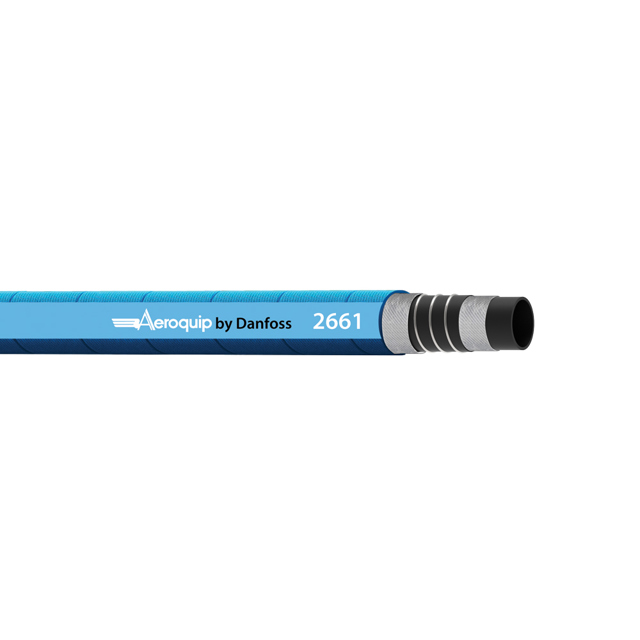

Aeroquip 2661 AQP high temperature wire-inserted suction hose (R4)

With an excellent working pressure rating and broad chemical resistance, 2661 hoses significantly outperform the SAE 100R4 standard, offering:

49% higher maximum operating temperature up to 149°C
Average 6% higher working pressure rating
More than a 5X higher vacuum rating

Hoses with Maximum Abrasion Resistance

To ensure maximum abrasion resistance, choose our high-performance hoses that come with the Bruiser Ultra-Abrasion resistant rover, providing 700 times higher abrasion resistance. Our hoses are designed for applications that involve very high pressure and are subjected to surges or flexing, such as construction equipment, mining, and high-performance industrial markets where maximum abrasion resistance is required.

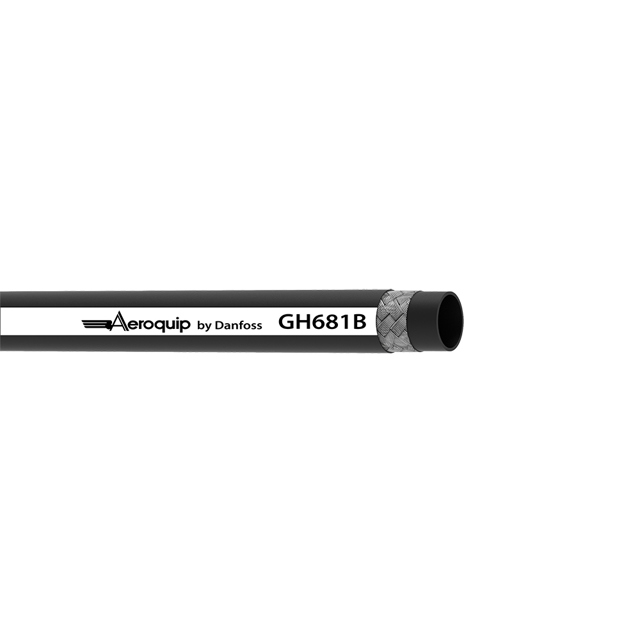

Aeroquip GH681B BRUISER ultra-abrasion resistant one wire braided hose (1SC)

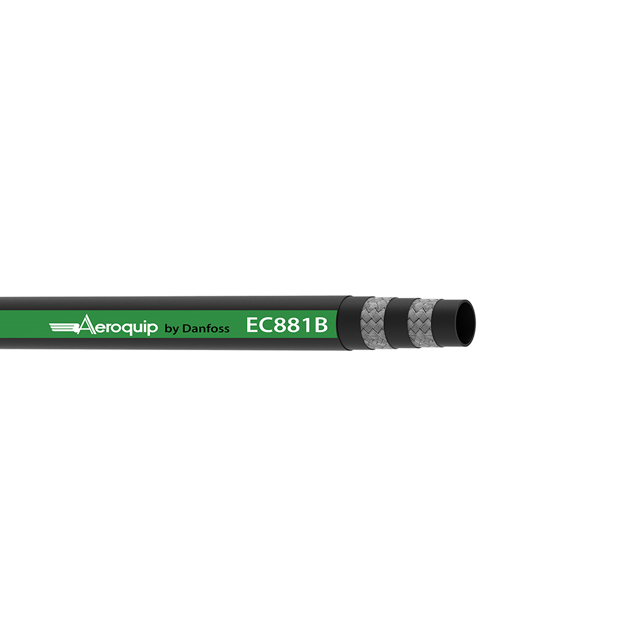

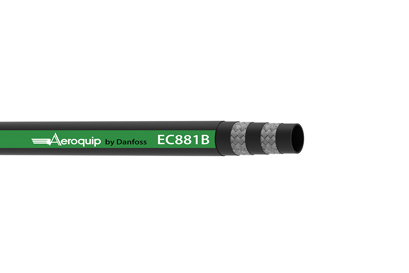

Aeroquip EC881B BRUISER ultra-abrasion resistant two wire braided hose (2SC)

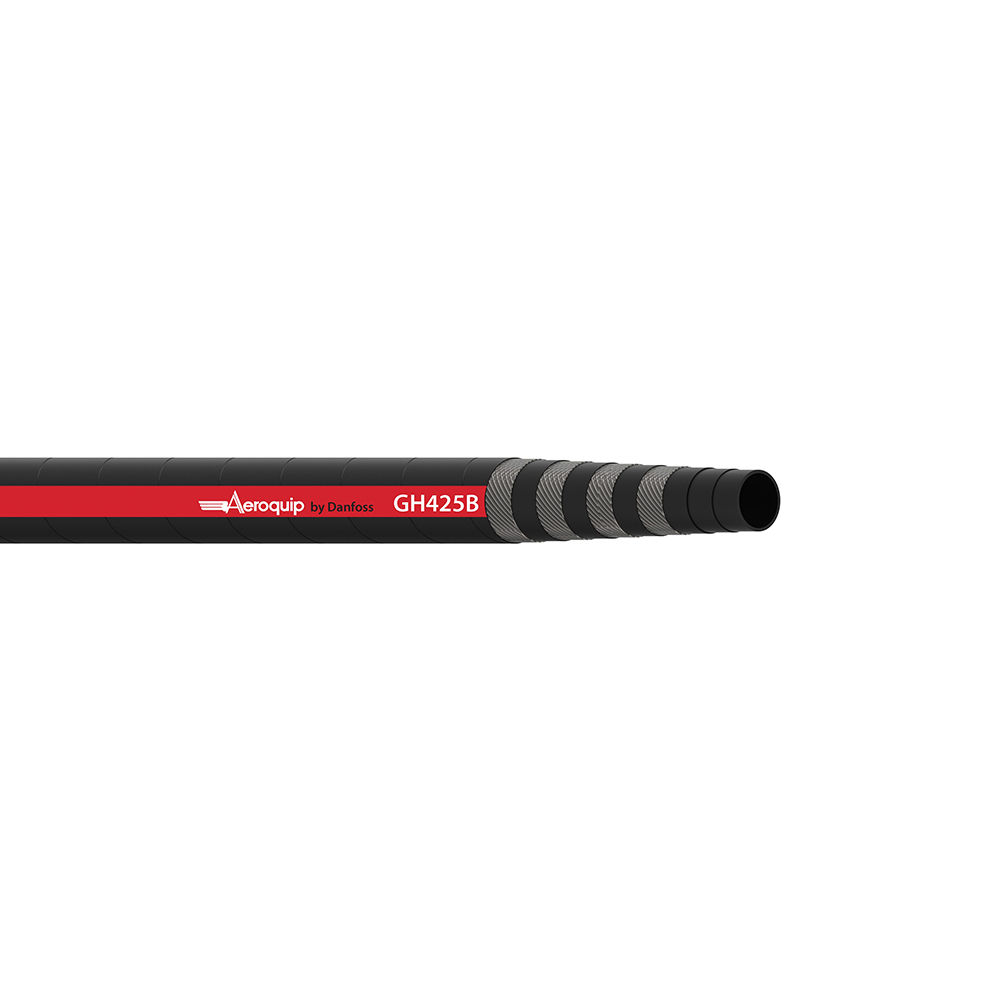

Aeroquip GH425B BRUISER ultra-abrasion resistant four wire spiral hose (4SP)

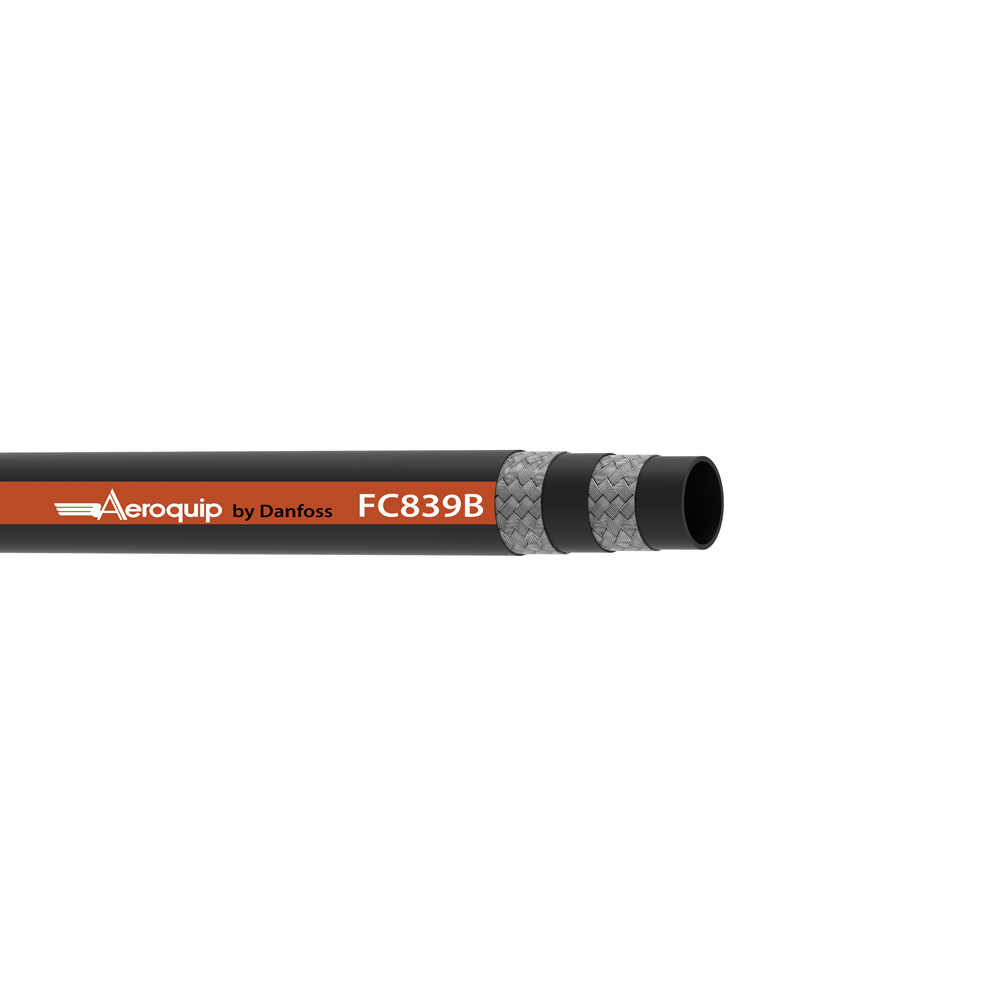

Aeroquip FC839B BRUISER ultra-abrasion resistant one and two wire braided hose (R17)

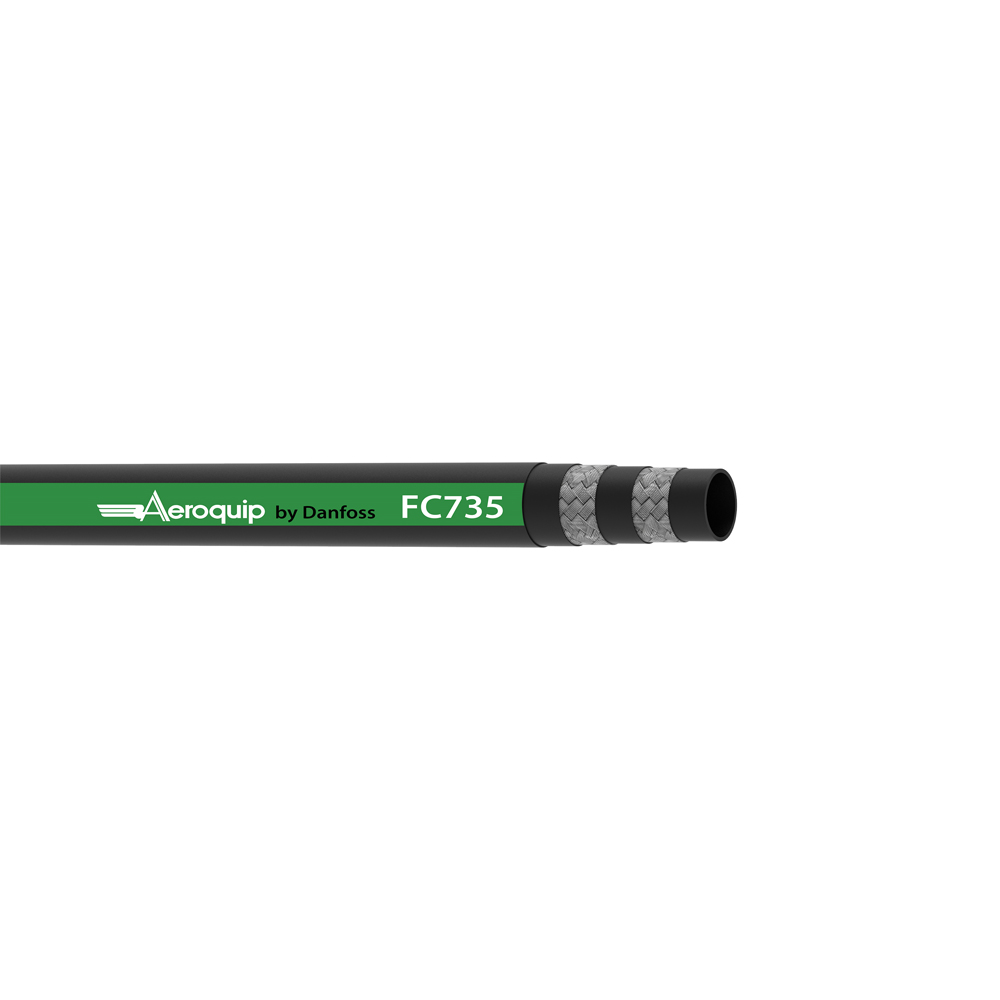

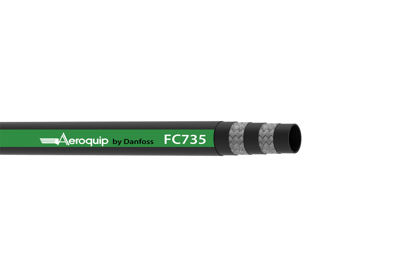

Aeroquip FC735 BRUISER ultra-abrasion resistant two wire braided hose (2SC)

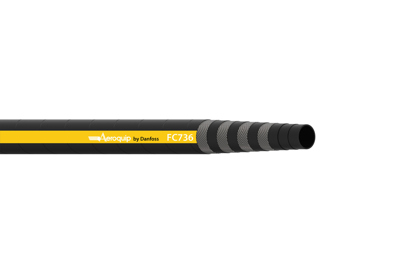

Aeroquip FC736 BRUISER ultra-abrasion resistant four spiral wire high pressure hose ( R12)

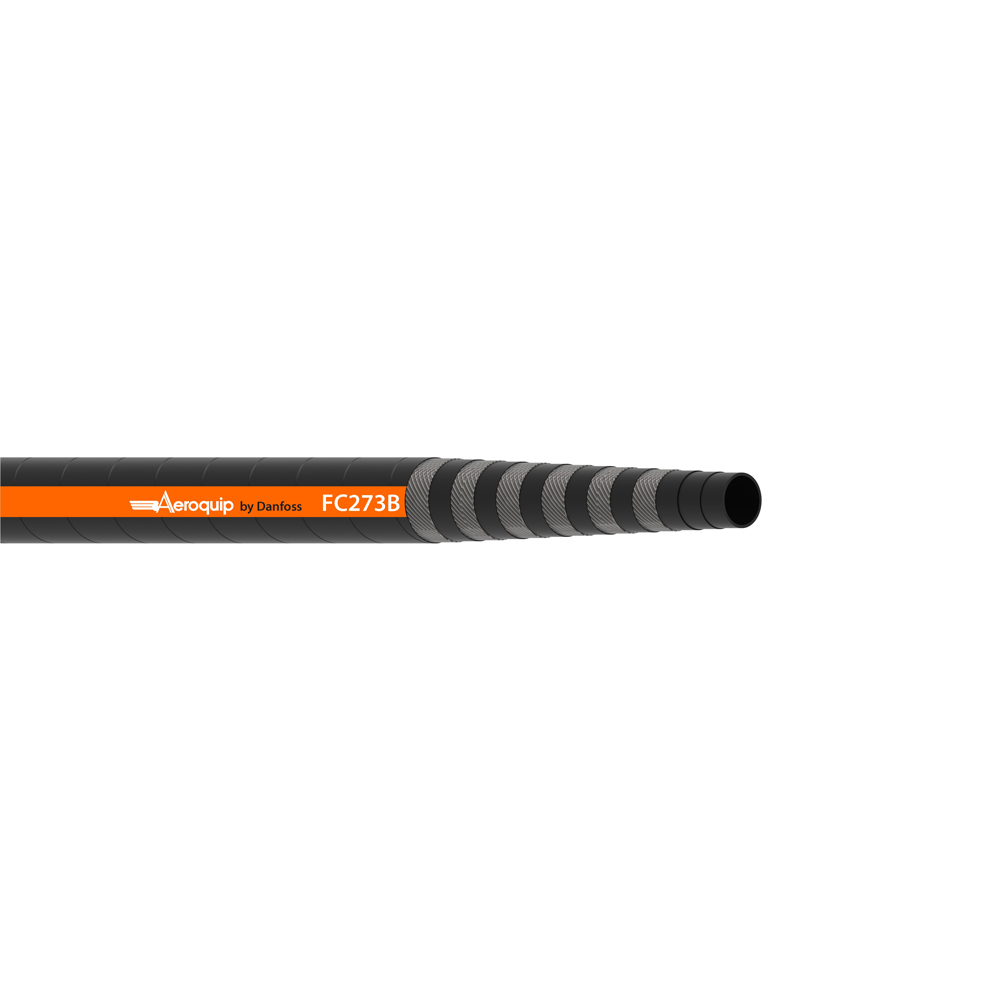

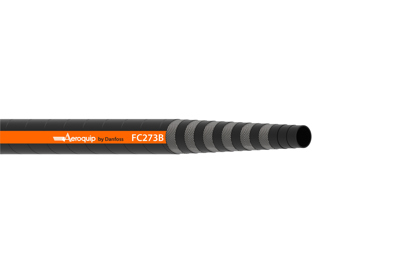

Aeroquip FC273B BRUISER ultra-abrasion resistant four and six spiral wire hose (R13)
