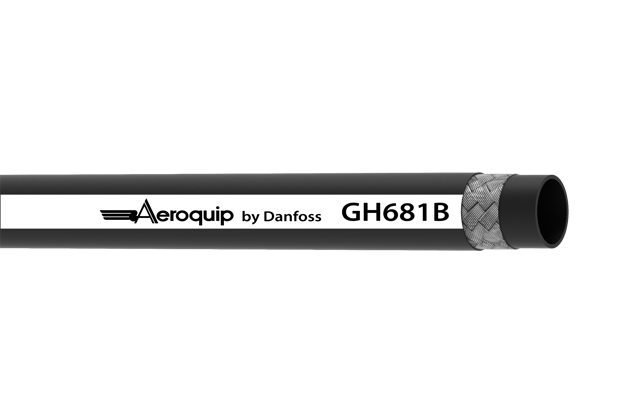

Aeroquip® GH681 one wire braided hose

  • Overview
  • Documents
  • Related applications
  • Resources

Our one wire braided technical champion combines high durability, flexibility, and pressure tolerance for more efficient, leak-free operations

The new generation of Aeroquip™ GH681 one wire braided hoses combines a longer in-application life, with a higher pressure rating and greater flexibility to enable leak-free operations. Our GH681 hose can even replace two-wire braided options in some applications, for instance when your pressure and temperature requirements fall somewhere between the two hose types.

Features

Qualified to one million impulse cycles

Highest pressure rating among premium one-wire braided hoses, 14% above standard​

Average of 33% better bending radius than standard, and even higher in some hose sizes​

26% broader operating temperature range than standard, from -46°C (-50°F) up to 126°C (260°F)​

Up to 8X more abrasion resistance than standard synthetic hose covers with Danfoss Dura-Tuff® cover​

Available with Danfoss Bruiser® cover offering 700 times higher abrasion resistance than standard for very heavy-duty applications​

Comes with Danfoss Global TTC non-skive one-piece fittings rated for Class 0 leakage

Benefits

6X the life expectancy of standard EN857 Type 1SC hoses lowers maintenance costs and increases safety

Usable in a broader range of hydraulic systems where two-wire braided hoses may have been required in the past, reducing design and use complexity

Higher operating temperature protects against heat in demanding environments, enabling longer hose life, lower maintenance costs, and use in broader applications

Greater flexibility enables use in really tight spaces, allowing more design freedom, lower assembly costs, and reduced machine weight that increases fuel-efficiency

Higher abrasion resistance lessens a leading cause of hose failure, increasing in-application life and reducing maintenance costs

High-performance fittings enable better sealing and leak-free operations

Documents

Documents
Type Name Language Valid for Updated Download File type
Fact sheet Aeroquip by Danfoss GH681 Fact Sheet English Multiple 26 Jul, 2023 2.6 MB .pdf
Catalog Americas Aeroquip Rubber Hydraulic Hose and Fittings Catalog English Multiple 05 Jan, 2024 82.2 MB .pdf
Catalog APAC Core Rubber Hydraulic Hose Products English Multiple 08 Apr, 2024 18.8 MB .pdf
Catalog China Core Rubber Hydraulic Hoses Catalog Chinese (CN) China 22 Aug, 2023 3.3 MB .pdf
Catalog EMEA Core Rubber Hydraulic Hose Products English Multiple 08 Apr, 2024 18.2 MB .pdf
Application guide Fluid Conveyance Application Guide EMEA English Multiple 05 Jan, 2023 17.8 MB .pdf
Brochure Fluid Conveyance Services Guide English Multiple 14 Apr, 2023 1.8 MB .pdf
