Compact and user-friendly
The most popular size of production machine, the ET5020/ET5025 can crimp all braided and spiral hoses in sizes -12, -16, and -20. Compact, user-friendly construction enables high productivity, safety and ease-of-use, while solid master dies allow crimping of all fitting types. Available with an optional controller.
Features and benefits
Production machine with HiLo cylinder – high performance and low warm building
Adjustable crimp diameter by digital touch control panel (complete Danfoss hose designs with crimp diameter)
Choose ET5025 for bigger sizes and higher force
Slide bearing technology
Fixed 6-o’clock die
Large opening
Low noise & ergonomic design
CE compliant, recommended for Europe, Middle- East and Africa
Product range
-
if (isSmallPicture) {
The ET4200/4250’s compact construction allows for ergonomic working, while long master dies enable crimping of 90° elbow fittings up to 1¼”.
-
if (isSmallPicture) {

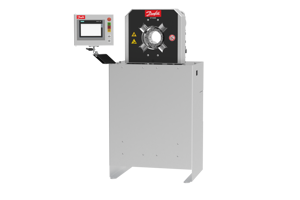

With a wider opening and a stronger crimping force than other workshop machines, the ET4500 offers a capacity that’s almost at the level of production machines, but at a much lower cost.
-
if (isSmallPicture) {
Portable, cost-effective, and easy to use, the ET4100 is the perfect choice for field servicing. It also features the biggest opening in the market—enabling it to support more hoses than most manual crimpers.
-
if (isSmallPicture) {

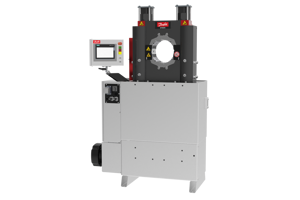

Designed for operator safety, improved ergonomics, increased hose size capability, ease of use, and maximum productivity, the ET5070 can meet almost any challenge across a broad range of hose sizes and construction types.
-
if (isSmallPicture) {

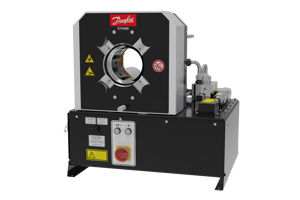

Danfoss ET4400 crimper offers the higher force and larger machine opening needed to crimp large bore hose assemblies.
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| User guide | Danfoss C.2 Control Panel User manual | English | Multiple | 19 Jun, 2023 | 2.9 MB | |
| User guide | ET5020 Crimper User manual | English | Multiple | 07 Nov, 2022 | 3.8 MB | |
| User guide | ET5025 Crimper User manual | English | Multiple | 07 Nov, 2022 | 3.8 MB | |
| Catalog | Tooling products Master catalog EMEA | English | Multiple | 16 Jan, 2023 | 40.4 MB |
