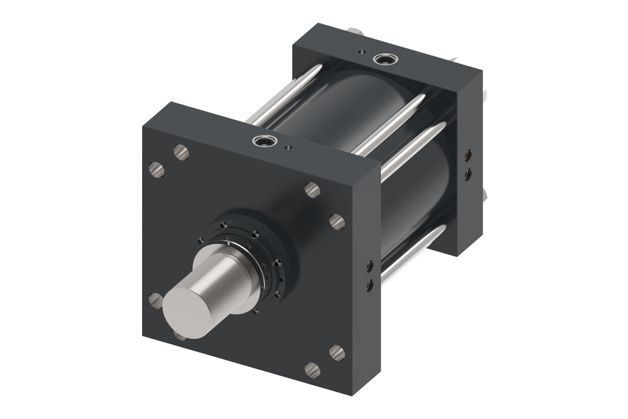

Tie-rod hydraulic cylinders

Safety, serviceability and heavy-duty features

Improve the performance and safety of your hydraulic systems with Vickers by Danfoss complete line of tie-rod hydraulic cylinders. Available in ISO metric and NFPA industry standards, our tie-rod cylinders offer a wide range of bore and stroke sizes combined with robust features to withstand extreme environmental conditions and constant use.

Productivity - easy installation and maintenance
Durability - made to last
Dependability - reliable and safe operation

Easy interchangeability
-Interchangeable mounts to allow for drop in replacement
Designed for easy low cost serviceability
-Special tools not required
-Unitized rod cartridge design for easy seal installation
Designed for long life
-High strength steel heads, caps and tubing
-Rolled tie-rod threads
Direct replacement for other manufacturers models
- Wide range of models and sizes to meet your application requirements

Product range

G series heavy-duty large-bore tie-rod cylinders

Danfoss large-bore tie-rod NFPA cylinders (G series) are made of nitride steel bearings to provide high load capacity and corrosion resistance, to meet and exceed the needs of the toughest hydraulic systems.

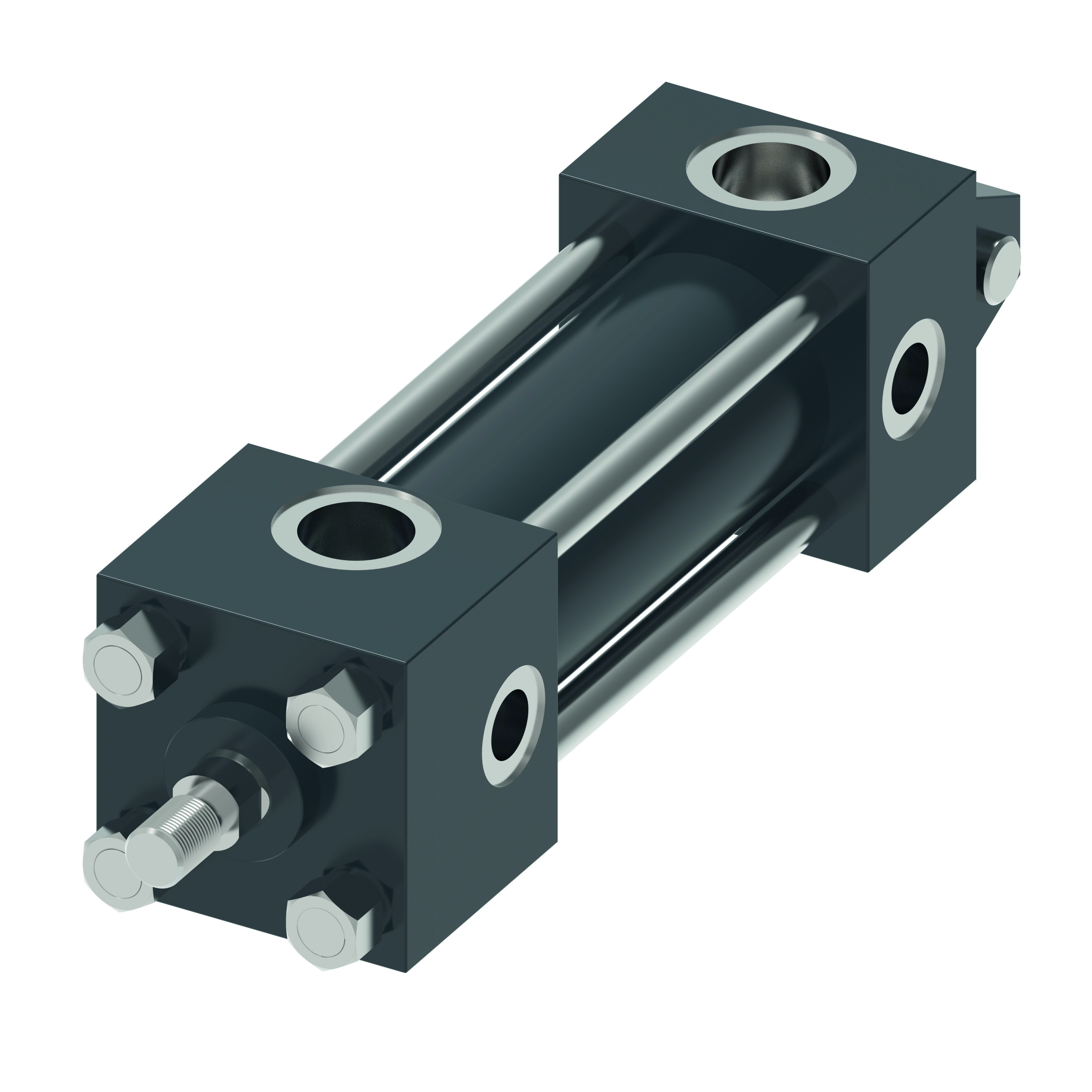

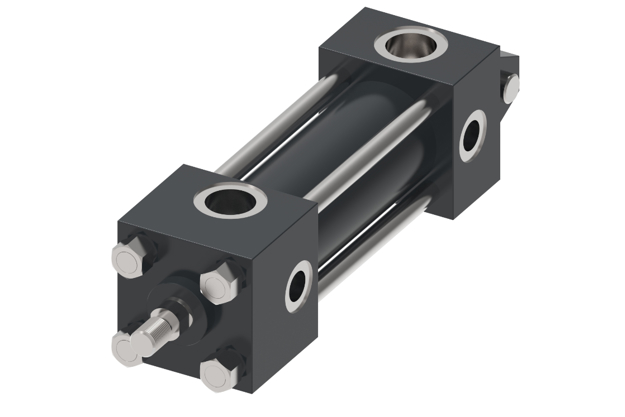

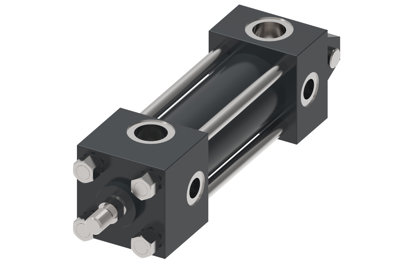

IHM and TV series heavy-duty tie-rod ISO 6149 metric cylinders

Danfoss tie-rod heavy-duty ISO Metric cylinders can be used in many applications including plastics, machine tool and primary metals. IHM and TV series cylinders are constructed with durable gray iron bearings, and meet ISO industry standards.

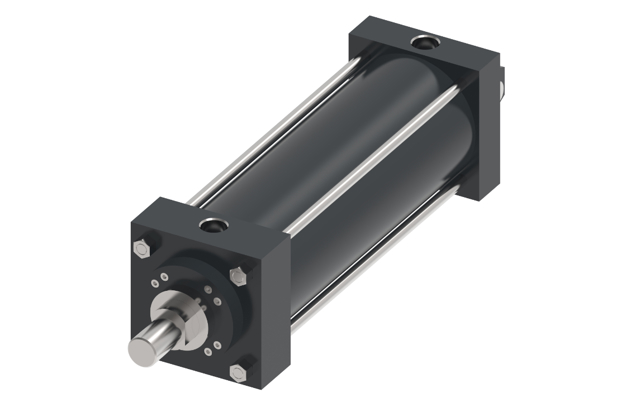

R series medium-duty tie-rod NFPA cylinders

Danfoss's tie-rod medium-duty NFPA cylinders improve performance, reliability and serviceability for applications in plastics, molding equipment and machine tool. The Danfoss Vickers RE and Hydro-Line R5 series cylinders come in 19 different mounting styles and standard bore sizes from 1 in to 20 in.

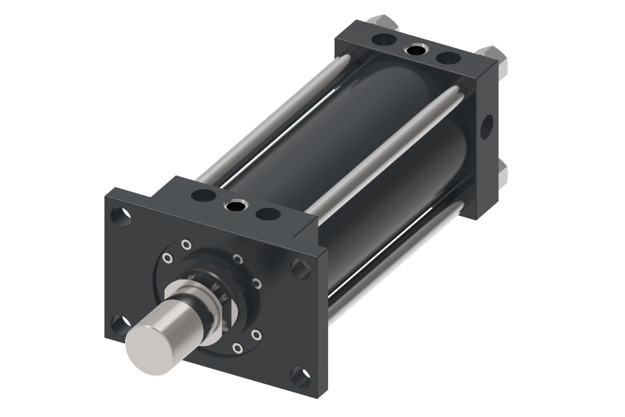

N series heavy-duty tie-rod NFPA cylinders

Danfoss’s N series offers NFPA-compliant industrial tie-rod cylinders that improve the safety and performance of hydraulic systems. Our N series cylinders feature a unitized rod cartridge that improves reliability, and a captive and tapered cushion valve that increases safety.

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Brochure	Cylinders Product Overview and Selection Guide	English	Multiple	17 Apr, 2025	6.3 MB	.pdf
Fact sheet	Tie Rod Cylinders for Wind Turbines	English	Multiple	04 Aug, 2023	485.2 KB	.pdf
Fact sheet	Vickers® by Danfoss Cylinders Core Product Offering	English	Multiple	25 Aug, 2023	240.3 KB	.pdf

Applications

• Plastic molding • Ship steering

• Machine tool • Metal forming and cutting

• Ship steering • Dam gates

• Entertainment • Pulp and paper mills

• Hydroelectric turbine governor control
