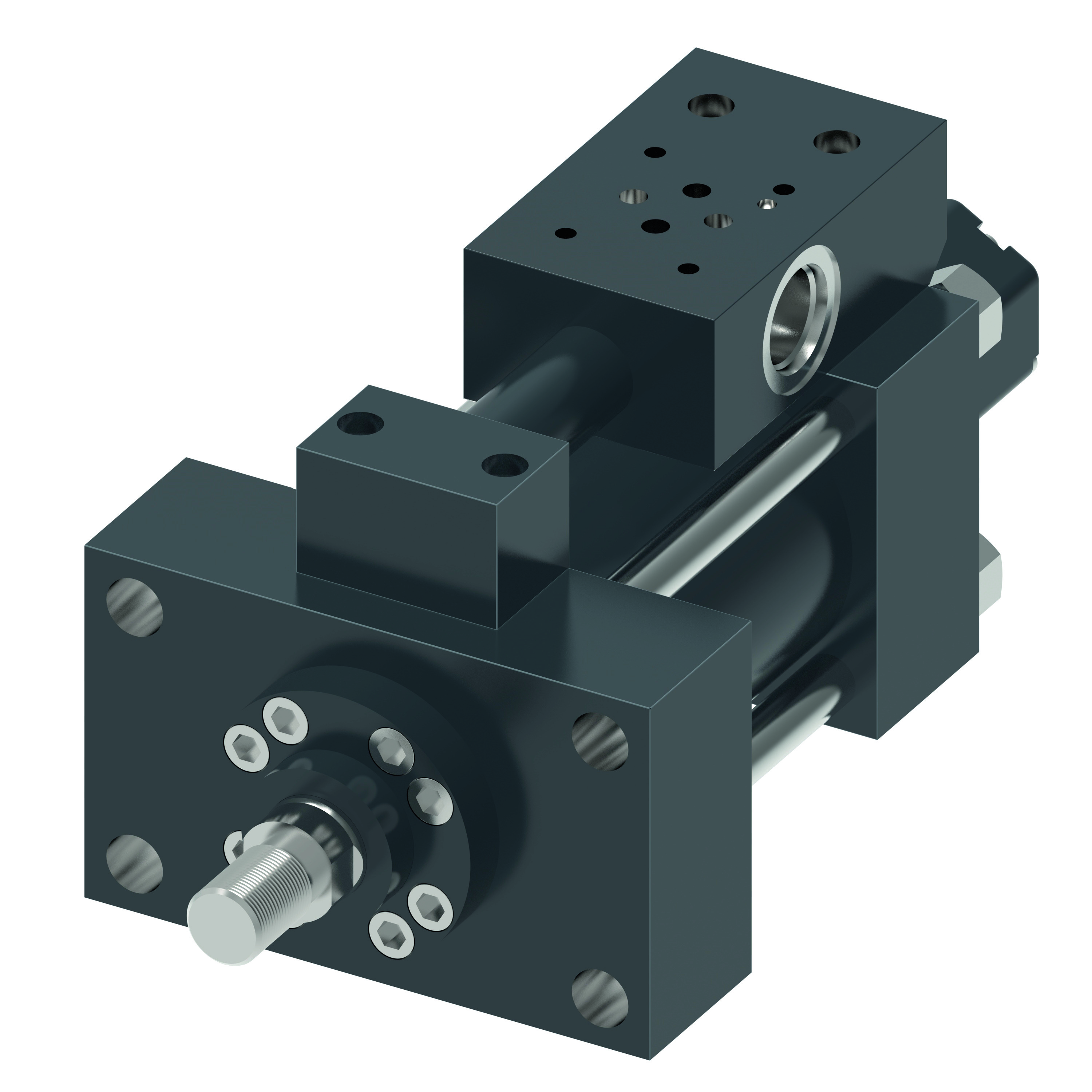

Electrohydraulic cylinders – EH series

Closed-loop motion control

Vickers by Danfoss electrohydraulic cylinders (EH series) simplify your supply chain by combining a high-performance cylinder, precision feedback transducer and control valve mount in a single package. For advanced closed-loop motion control, valves can be mounted onto the configured cylinder and adjusted to your precise specifications.

  • Time savings - no need to integrate separate components
  • Cost savings - single-source solution reduces costs
  • Design flexibility - wide range of styles, mountings, sizes and valves

Streamlined, cost-saving technology

By integrating all components, our electrohydraulic cylinder eliminates the need for a separate hydraulic manifold, plumbing between the control valve and cylinder, transducer mounting bracket and other complex configurations. This offers significant cost savings over custom assemblies.

Save time

Simplified plumbing and electrical connections combined with a programmable AxisPro valve eliminates repetitive setups.

Increase production

Programmable motion control enables faster cycles than conventional hydraulic circuitry. Infinite positioning with high repeatability can improve yield in the production cycle.

Documents

Documents
Type Name Language Valid for Updated Download File type
Brochure Cylinders Product Overview and Selection Guide English Multiple 07 Sep, 2023 4.7 MB .pdf
Fact sheet EH Series Electrohydraulic Cylinder English Multiple 02 Feb, 2023 113.3 KB .pdf
Fact sheet Tie Rod Cylinders for Wind Turbines English Multiple 04 Aug, 2023 485.2 KB .pdf
Fact sheet Vickers® by Danfoss Cylinders Core Product Offering English Multiple 25 Aug, 2023 240.3 KB .pdf
