Danfoss Turbocor oil-free compressor technology

The world’s leader in oil-free compressor technology

Danfoss is the leading manufacturer of oil free compressors and is the pioneer of the Danfoss Turbocor® compressor - the world’s first oil-free magnetic bearing compressor for the HVAC industry.

Danfoss Turbocor® compressors use advanced technology to deliver high efficiency and low sound levels in a compact footprint.  Industry leading performance is achieved by using oil free, magnetic bearings that provide world class efficiency and zero performance degradation over the life of the compressor.  Permanent magnet motors and variable speed drives provide unmatched full and part load efficiency.

Danfoss Turbocor® oil-free centrifugal compressors have the flexibility to be used in air cooled, water cooled or evaporative cooled chillers operating in wide range of applications such as comfort cooling, low temperature process, ice storage and heat recovery.  This flexibility has resulted in over 70,000 compressors installed in jobsites around the world.

Danfoss Turbocor® compressors are manufactured in Tallahassee, Florida and Shanghai, China in a ISO 9001:2015 and ISO 14001:2015 certified facility.  Sales and service centers are located in the USA, Europe and Asia to serve customers around the world.

Danfoss Turbocor® technology has been recognized with awards from many prestigious organizations including the USA EPA, AHRI/ASHRAE USA, Natural Resources Canada and the Institute of Refrigeration – England.

Features and benefits

40 to 400 TR compressors for chillers and heat pumps

A pioneering oil-free centrifugal technology for best-in-class lifetime costs in chillers

A compact, lightweight and quiet solution

Compatible with low GWP refrigerants R1234ze, R513A and R515B

ETL Listed and CE Compliant

Turbo tool - Danfoss

TurboTool®

Compressor service for Danfoss Turbocor® compressors is easier than ever with the Danfoss TurboTool® App. You can troubleshoot potential issues right from your mobile phone by entering the symptoms into the app and instantly receive a list of recommendations for how to resolve the problem.

For OEM customers

Danfoss serves large HVAC chiller manufacturers (OEMs) with the Danfoss Turbocor® portfolio of compressors. With factories, sales and service located throughout the world, our distinguished OEM customers bring innovative, reliable centrifugal chiller systems with Danfoss Turbocor compressors to the HVAC market place.

Contact your OEM for Turbocor® product support. We sell our compressors to OEM chiller manufacturers only. Search below for an OEM in your region.

OEM login OEM customers

Oil-free compressors maintain consistent performance over time

Danfoss conducted a study to see how long term operation affected performance on Danfoss Turbocor® compressors. The results showed that oil-free, magnetic bearing compressors maintained consistent performance even after 10+ years of operation.

Energy efficiency – the trillion-dollar opportunity

Energy efficiency – the trillion-dollar opportunity

From the homes we live in, the places we work and the stores we rely on to our food production, water purification and transport – energy efficiency is where the future of a sustainable existence starts.

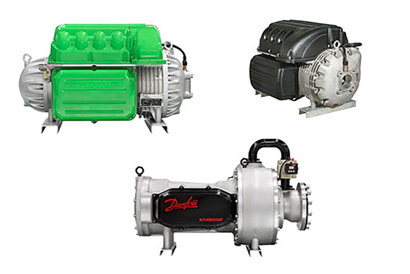

Product range

  • Turbocor® - TG - Danfoss
    Turbocor® - TGS

    Danfoss Turbocor model TGS oil free compressors are available in 5 different models ranging from 40 tons to 150 / 140 kW to 540 kW utilizing ultra-low GWP R1234ze or R515B.

  • Turbocor® - TT - Danfoss
    Turbocor® - TTS

    Danfoss Turbocor®model TTS oil free compressors are available in four different models ranging from 60 tons to 200 tons / 200 to 700 kW utilizing R134a or low GWP R513A.

  • TTH TGH compressor for Turbocor
    Turbocor® - TTH / TGH

    Danfoss Turbocor® model TTH / TGH oil free compressors, optimized for high lift applications are available in two different models utilizing R134a or R513A (107 tons / 376 kW) or ultra-low GWP R1234ze  and R515B (82 tons / 288 kW).

  • Turbocor® - VTT - Danfoss
    Turbocor® - VTT

    Danfoss Turbocor® model VTT oil free compressor is available with a capacity up to 400 tons / 1430 kW using R134a.  This compressor is designed for water and evaporative cooled chiller applications.

Documents

Type Name Language Valid for Updated Download File type
Brochure Danfoss Turbocor Compressor Specification Sheet English Multiple 18 Feb, 2020 2.2 MB .pdf
Price list Danfoss Turbocor Price Guide English Multiple 03 Jun, 2020 1.0 MB .pdf

Related documentation

More literature related to compressors and condensing units.

Related solutions

  • Danfoss oil-free solutions
    Oil-free solutions

    Today’s HVAC systems have high demands. HVAC systems are not only required to meet energy and performance standards but also provide building owners with exceptional benefits.

Learning

Danfoss Turbocor® Learning Center

Danfoss offers a series of online training materials for technicians working on Danfoss Turbocor® oil-free compressors—further extending the support and learning resources to help users and OEMs maintain long-lasting performance.  A series of 12 e-lessons provide a helpful overview of the unique oil-free technology, and why it’s different from a conventional compressor.

The 12 new Turbocor® e-lessons are available free and on-demand through the Danfoss Learning portal.  For more information, visit: https://www.danfoss.com/en/service-and-support/learning/

Danfoss also offers a wide range of face to face Turbocor® training resources—including comprehensive two-day training events at our Tallahassee plant or on-site training for larger groups.  If you require additional information, contact us at: turbocor.training@danfoss.com

Registration and contact information for face to face training

  • Go to the Service Training Webpage below to register for service and repair courses
  • Contact our training group at turbocor.training@danfoss.com for information on courses not listed on our catalog

Register by completing the registration form and send to:

Danfoss Turbocor Compressors Inc.
DTC Learning Center
1769 E. Paul Dirac Drive
Tallahassee, FL 32310
Ph: +1 (850) 504-4800
Fax: +1 (850) 201-2901
E-mail: turbocor.training@danfoss.com

Class size is limited and is offered on a first-registered, first-attend basis. If a class is full, we will inform you about attending an alternate course date. DTC reserves the right to change class dates or cancel classes.

Service and Support videos

Service and Support videos

Danfoss offers the most comprehensive library of service videos in the industry to help you with troubleshooting Danfoss Turbocor® compressors in the field. These videos are available in English, French, Italian, German, Spanish and Chinese for our global customers. Check out our expanded playlist of videos on our YouTube channel.

Case studies

  • Denmark's new climate-friendly hospitality giant depends on Turbocor® oil-free chiller
    Denmark's new climate-friendly hospitality giant depends on Turbocor® oil-free chiller

    The new Alsik hotel in Southern Denmark sets a higher standard in energy-efficiency and is built to reach 76% CO₂-neutrality. A main contributor is the 900-kW chillers by Clint (a company of G.I. Industrial Holding) which features award-winning Danfoss Turbocor oil-free compressors.

  • TT- Turbocor Danfoss
    Oil-free compressors maintain consistent performance over time

    Danfoss conducted a study to see how long term operation affected performance on Danfoss Turbocor® compressors. The results showed that oil-free, magnetic bearing compressors maintained consistent performance even after 10+ years of operation.

  • Data center cooling danfoss
    Data center cooling

    A world leading company in wireless technologies opt for three 1,400-ton chillers powered by 21 Danfoss Turbocor™ compressors to improve efficiency and lower costs at data center.

  • hotel with chiller danfoss
    Hotel with chiller retrofit

    Inverter chiller retrofit brings huge savings in a five star hotel installation, operating and maintenance costs, with compact Danfoss inverter oil–free compressor Turbocor®.

News

  • Danfoss releases “world’s smallest” EEV for small A/C and IT cooling
    Danfoss releases “world’s smallest” EEV for small A/C and IT cooling
    Monday, April 27, 2020

    Danfoss has unveiled what is believed to be the world’s smallest Electronic Expansion Valve (EEV) for small A/C and CRAC units, allowing OEMs to drive greater system efficiency, reliability and quieter operations.

  • R32-qualified components - Danfoss
    Danfoss announces a comprehensive range of R32-qualified components
    Monday, March 2, 2020

    In response to a global shift away from R410A and R22, Danfoss has added a complete portfolio of components to help OEMs develop air conditioning systems with R32.

  • AHR Expo 2020
    Rooftop components and solutions to be on display at AHR Expo 2020
    Wednesday, January 29, 2020

    AHR Expo 2020 will include a preview of Danfoss' extensive portfolio of rooftop components that combine to help OMEs tackle seasonal efficiency and refrigerant changes, increase part-load efficiency, and switch to low-GWP refrigerants.

Avoid counterfeits

Identify and fight counterfeits of Danfoss products

Watch out for counterfeits to protect your image

Fake products give your business as well as our company a bad name. Therefore, we are doing everything we can to fight the counterfeits. Read more about how to make sure that the product you buy is genuine Danfoss quality.
