Compact and versatile

Danfoss TWA Basic and ABRA Basic Zone Valve Packs are a cost effective and convenient way to control specific zones within your system.

They are used to electrically activate valves on hot and chilled water applications where slow opening and closing is desirable to eliminate water hammer associated with quick acting valves.

Features and benefits

Low power consumption

Silent operation

Do not cause water hammer

Easily installed or removed

Products

ABRA-A5 actuator included:

  • 24VAC/DC, 2.0 VA
  • ON/OFF (NC)
  • 4.0mm stem travel
  • Cable: pre-wired, 3 ft. (1 m) w/ end-switch

Solder union valve included:

  • Size: ½" or ¾"
  • Cv: 1.6 or 2.7



Code No. Model Connection  Description
ABRA54200 ABRA-A5 Basic ½" Sweat, 1.6Cv 082F1110 24V actuator with end switch, 013G8042 -1/2” sweat union valve
ABRA54400 ABRA-A5 Basic ¾" Sweat, 2.7Cv 082F1110 24V actuator with end switch, 013G8044 -3/4” sweat union valve

​

TWA-A Actuator included:

  • 24VAC, 2.0 VA
  • ON/OFF (NC) valve position indicator
  • 4 wire w/ end-switch

Solder union valve included:

  • Size: ½" or ¾"
  • Cv: 1.6 or 2.7



Code No. Model Connection Description
TWA42000 TWA Basic ½" Sweat, 1.6Cv 088H3114 24V actuator with end switch. 013G8042 -1/2”
sweat union valve
TWA44000 TWA Basic ¾" Sweat, 2.7Cv 088H3114 24V actuator with end switch. 013G8044 -3/4”
sweat union valve

Documents

Documents
Type Name Language Valid for Updated Download File type
Data sheet ABRA-A5 Actuator for RA2000 Datasheet English United States 10 Mar, 2016 652.5 KB .pdf
Data sheet RA2000 Thermostatic Radiator Valve and Operator Datasheet English United States 09 Mar, 2014 1.0 MB .pdf
Catalog RA2000 Thermostatic Radiator Valve, Electric Zone Valve & Pressure Bypass Valve Catalog_VKGWC122 English United States 21 Jun, 2015 1.3 MB .pdf
Data sheet TWA Series Electric Actuator Datasheet English United States 16 Jan, 2017 877.8 KB .pdf

Related products

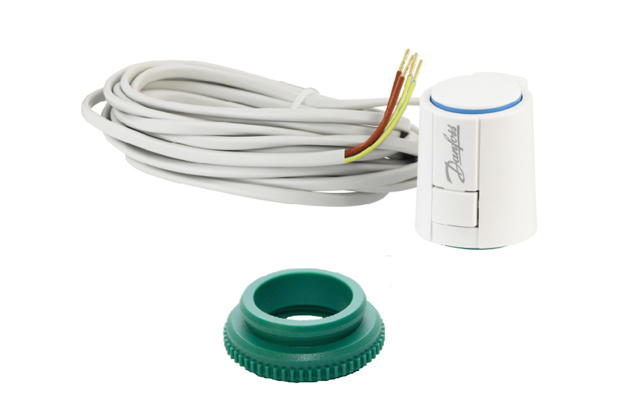

  • ABRA-A5 Electric Thermal Actuator, ON/OFF
    ABRA-A5 Electric Thermal Actuator, ON/OFF
    The ABRA-A5 ON/OFF zone valve actuator has been specifically designed for use with Danfoss RA2000, RA-C, and RA15/6 series of valves used for heating and cooling applications.

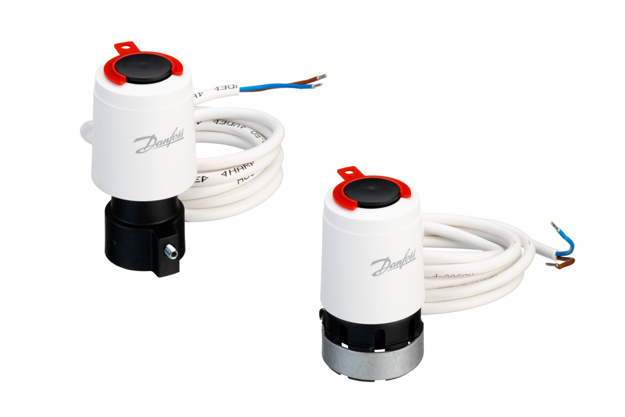

  • TWA Actuators
    TWA-A and TWA-V Actuators
    TWA actuators are used to electrically activate valves on hot water heating systems, where slow opening and closing is desirable to eliminate water hammer associated with quick acting valves.
  • Thermostatic radiator valves
    Thermostatic radiator valves
    Robustly built and designed to meet the rigors of the residential, commercial and industrial sectors, a comprehensive range of Danfoss RA2000 thermostatic radiator valves is available for hot water, one-pipe steam, and two-pipe low pressure steam systems.
  • RA2000 radiator operators
    Radiator operators
    Danfoss RA2000 radiator operators maintain constant desired room temperatures, individually room by room and help to reduce energy consumption.
