For RA2000 valves...

The ABRA-A5 ON/OFF zone valve actuator has been specifically designed for use with Danfoss RA2000, RA-C, and RA15/6 series of valves used for heating and cooling applications. Additional base adapters are offered for the potential use of the ABRA-A5 to other non-Danfoss valve bodies.

Features and benefits

4.0mm stem travel

Normally closed (NC) actuator without power

Low power consumption: 1W

Actuator installed in any orientation

Position indicator

Silent operation


Code No. 082F1110
Model ABRA-A5 Actuator 24VAC 1.0VA
Type NC 4 wire with end switch
Required Valve Body RA2000
Applications Chilled or hot water
Included RA2000 Adapter ring (Code No. VA780000) is included, but only necessary if replacement is required.
Code No. Description
VA330000 Uponor manifold
VA50H Honeywell Braukmann (except 110 Series)
VA54H MMA, Macon
VA640000 RTI (Pettinaroli) manifold
VA780000 Danfoss RA2000
VA80H Heimeier, Overtrop (since 1997), TACO (Alpha actuator, since 2005), Embassy manifold


Type Name Language Valid for Updated Download File type
Installation guide ABRA A5 Actuator for RA2000 Instructions VISKF122 English United States 08 Jul, 2016 607.8 KB .pdf
Data sheet ABRA-A5 Actuator for RA2000 Datasheet English Multiple 11 Mar, 2016 663.6 KB .pdf
Catalog RA2000 Thermostatic Radiator Valve, Electric Zone Valve & Pressure Bypass Valve Catalog English Multiple 22 Jun, 2015 1.3 MB .pdf

Related products

  • ABNM-A5 Thermal Actuator, 0-10V

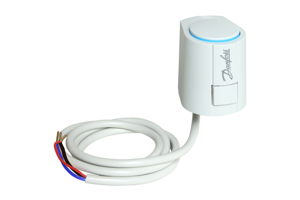

    ABNM-A5 Thermal Actuator, 0-10V

    The ABNM-A5 thermal actuator is a 0-10V, proportional actuator designed for use with RA2000 thermostatic radiator valves in heating and cooling applications.

  • ABV Adjustable Flow Limitation and Manual Operation Actuator

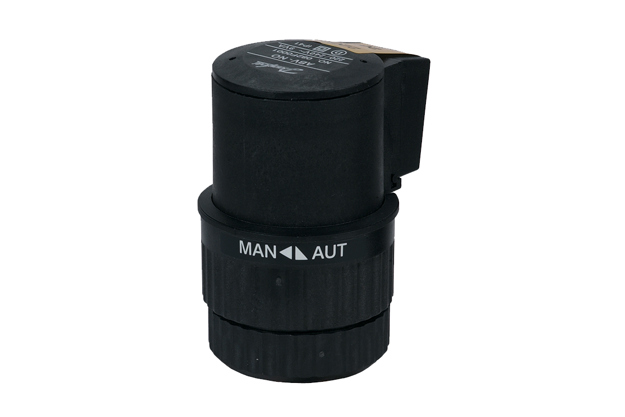

    ABV Adjustable Flow Limitation and Manual Operation Actuator

    ABV is a thermo-hydraulic actuator for two point control used to control floor temperature, floor heating systems, hot-water service systems, zone valves and district heating systems.

  • TWA Actuators

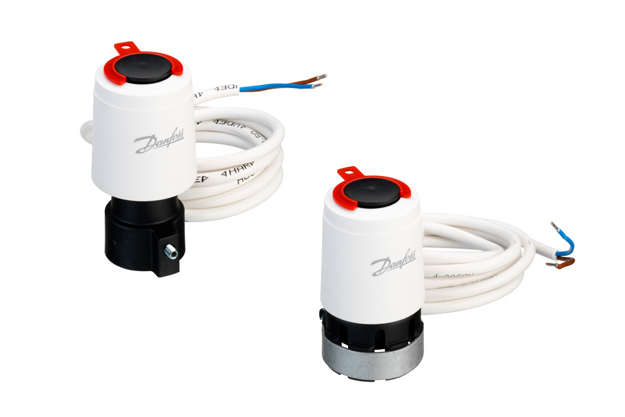

    TWA-A and TWA-V Actuators

    TWA actuators are used to electrically activate valves on hot water heating systems, where slow opening and closing is desirable to eliminate water hammer associated with quick acting valves.

  • Thermostatic radiator valves

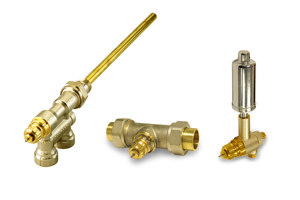

    Thermostatic radiator valves

    Robustly built and designed to meet the rigors of the residential, commercial and industrial sectors, a comprehensive range of Danfoss RA2000 thermostatic radiator valves is available for hot water, one-pipe steam, and two-pipe low pressure steam systems.

  • zone valve packs

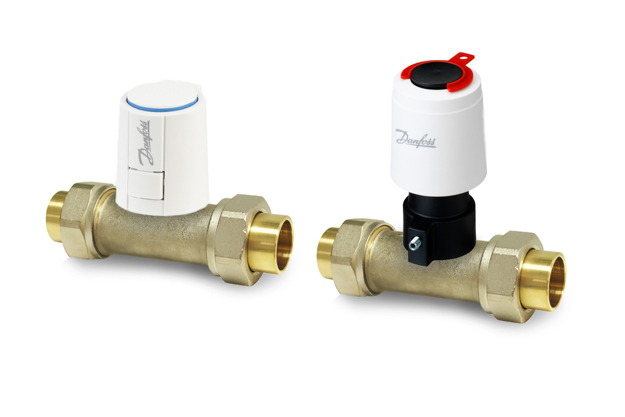

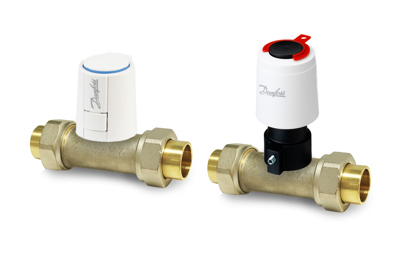

    Zone valve packs
