Electric zone valve actuators

TWA actuators electrically activate valves on hot water heating systems, where slow opening and closing is desirable to eliminate water hammer associated with quick acting valves.

The 24VAC, 2.0 VA actuators are available in a normally closed or normally open position, and with or without a valve position indicator.

Products

TWA-A Actuator
24VAC 2.0 VA c/w valve position indicator.

Code No. Type Required Valve Body
088H3110 NC RA2000
088H3111 NO RA2000
088H3114 NC 4 Wire w/
end switch
RA2000

NC=Normally Closed, NO=Normally Open.

TWA-V Actuator
24VAC 2.0 VA

Code No. Type Required Valve Body

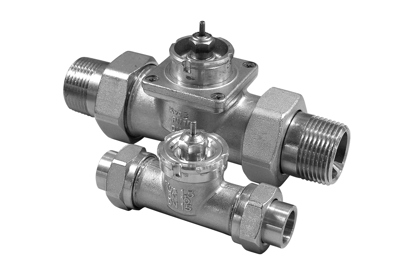

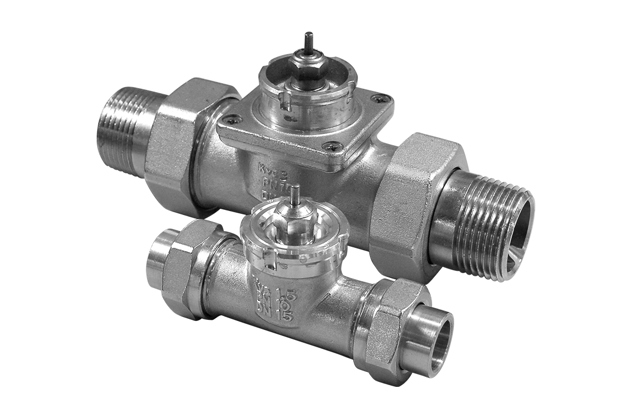

088H3120 NC VMT (065F0102 or 065F0104 only)
088H3121 NO VMT (065F0102 or 065F0104 only)

NC=Normally Closed, NO=Normally Open

Documents

Documents
Type Name Language Valid for Updated Download File type
Catalog Hydronic Specialties Catalog English Multiple 21 Mar, 2017 2.0 MB .pdf
Catalog RA2000 Thermostatic Radiator Valve, Electric Zone Valve & Pressure Bypass Valve Catalog English Multiple 22 Jun, 2015 1.3 MB .pdf
Data sheet TWA Series Electric Actuator Datasheet English United States 17 Jan, 2017 886.0 KB .pdf
