The temperature transmitters convert an input signal from a temperature-dependent resistor into a standardized Volt or mA output signal, allowing you to define a temperature range specific to the process you need to control.
The temperature transmitters are designed for use in harsh industrial environments where reliable, robust, and accurate equipment is required. They are equipped with a wide selection of process and electrical connections. Plus, each transmitter can be delivered with a 33mm extension length, making it possible to measure temperatures up to 200 °C without damaging the built-in electronics.
The temperature transmitters can be applied in various heating and cooling applications where accurate temperature measurement is paramount to the process control (e.g., engine cooling systems, oil temperature monitoring, HVACR systems, air compressors, etc.)
Features and benefits
-
Designed for use in harsh industrial environments where reliable, robust and accurate equipment is required
-
All metal enclosure parts made of stainless steel (AISI 316)
-
Output signals: 4–20 mA or Ratiometric 10–90%
-
A wide selection of process and electrical connections
-
Ultra compact design
-
Temperature range from -50 to 200 °C
-
Sensor pockets available for applications where emptying the system is not an option
-
Based on Pt 1000 technology

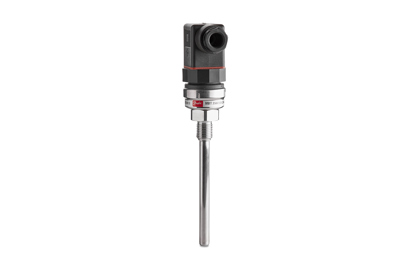

MBT 3560 features:
- Sensor pockets available for applications where emptying the system is not an option

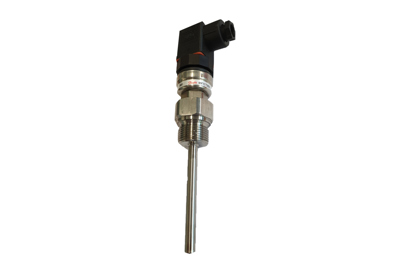

MBT 5550 features:
- Designed with detachable thermowell MBT 120, enabling the replacement of the transmitter while the application is in operation
- NKK marine approved

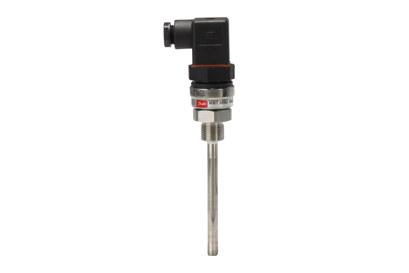

MBT 5560 features:
- Sensor pockets available for applications where emptying the system is not an option
- All relevant marine approvals
