High-pressure pumps for tap water applications

Tailor-made pumps for reliable and clean solutions

With Danfoss high-pressure PAH pumps tailored to tap water applications, you will get one of the most reliable and clean solutions for your high-pressure application. The pumps are, among others, used in firefighting, dust suppression and water hydraulic applications. To avoid any kind of contamination, the PAH pumps use only water as lubricant, no oil is needed.

At the same time, the performance levels of the pumps are high to ensure optimum reliability of your solution and to reduce the energy bill. The simple pump design ensures easy maintenance and long service life.

View the 3D model

Danfoss PAH pumps are available with or without motor and are approved for use up to 160 barg (2,321 psig) and they offer a wide flow range from 2.0 to 187 l/min (0.7 to 49.4 gpm). The Danfoss PAH pumps are approved for use up to 160 barg (2,321 psig) and they offer a wide flow range from 2.0 to 187 l/min (0.7 to 49.4 gpm).

The compact size, low weight and durable materials of the axial piston pumps allow flexible configuration, vertically or horizontally, in almost any environment. The pumps offer service intervals up to 8,000 hours. The Total Cost of Ownership of the Danfoss pumps is lower than for any other high-pressure pumps in the market due to the high efficiency, operation and maintenance costs.

Features and benefits

Zero risk of oil contamination thanks to the pump's ultra-clean technology, where no oil is needed
Best in class reliability
High energy efficiency, low CO₂ emissions
Compact design, low weight, easy configuration
Long service life, only stainless steel used
Market leading Total Cost of Ownership (TCO)

Pump animation

Learn how an axial piston pump works in this video animation

Product range

PAH 20-32 high-pressure pump

Pressure range: Max outlet pressure: 80 barg/1,160 psig (PAH 20) - 160 barg/2,321 psig (PAH 25-32)
Inlet pressure cont.: 0-4 barg/0-58 psig
Flow range: 12.4-53.8 l/min - 3.28-14.21 gpm
Speed: 700-1,800 rpm

PAH 50-100 high-pressure pump

Pressure range: Max outlet pressure: 80 barg/1,160 psig (PAH 50) - 160 barg/2,321 psig (PAH 63-80) - 80 barg/1,160 psig (PAH 100)
Inlet pressure cont.: 0-4 barg/0-58 psig
Flow range: 30.8-187 l/min (8.14-49.4 gpm)
Speed: 700-1,800 (PAH 50) 700-2,400 (PAH 63-80) 700-1,500 (PAH 100)

PAH 10-12.5 high-pressure pump

Pressure range: Max outlet pressure: 160 barg/2,321 psig
Inlet pressure cont.: 0-4 barg/0-58 psig
Flow range: 6.1-20.3 l/min - 1.61-5.36 gpm
Speed: 700-1,800 rpm

PAH 2-6.3 high-pressure pump

Pressure range: Max outlet pressure: 140 barg/2,031 psig.
Inlet pressure cont.: 0-4 barg/0-58 psig
Flow range: 1-10.1 l/min/0.26-2.67 gpm
Speed: 700-1,800 rpm

Pumps for fire fighting

Explore the benefits of using PAH for high-pressure water mist systems

Is this the world's most versatile pump?

The PAH pump is used within many different industries.

Learn more

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Brochure	Danfoss high-pressure pumps - cleaner mist for faster production of quality lumber	English	United States	20 May, 2021	316.5 KB	.pdf
Brochure	Danfoss high-pressure pumps - cleaner mist for faster production of quality lumber	English	Multiple	20 May, 2021	371.0 KB	.pdf
Data sheet	Data sheet PAH pumps	German	Multiple	05 Jul, 2022	1.6 MB	.pdf
Data sheet	Data sheet PAH pumps	Swedish	Sweden	05 Jul, 2022	1.5 MB	.pdf
Data sheet	Data sheet PAH pumps	English	Multiple	12 Apr, 2023	2.6 MB	.pdf
Data sheet	Data sheet PAH pumps	French	Multiple	05 Jul, 2022	1.6 MB	.pdf

Related products

VDH/VDHT directional valves for high-pressure flow direction control - Danfoss

Solenoid valves for high-pressure applications

The VDH/VDHT solenoid valves are used to control the flow direction in high-pressure water applications. The valves are available for a wide range of flows and pressures.

Danfoss VPH and VRH pressure relief valves for high-pressure applications

Pressure relief valves VPH/VRH

Reliable pressure relief valves for high-pressure applications. The relief valve is used for protecting the components of a system against overload as a result of a pressure peak.

VCM and VCH check valves for high-pressure applications

VCM and VCH are check valves suitable for industrial water and seawater reverse osmosis applications. Both valves are made in corrosion resistant material which can handle high-pressure and corrosive media.

Related applications

Coming soon...

Case stories

Danfoss components provide precise humidity control

A cold-mist system using a Danfoss PAH pump, a drive, valves and nozzles enhances the quality and yield of selected grades while reducing CAPEX and OPEX. This efficient solution ensures precise humidity control for optimized performance.

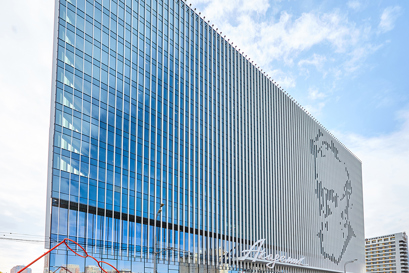

Danfoss pumps free up commercial space for rent

Compact and reliable Danfoss PAH high-pressure pumps were chosen to power the fire suppression system in a Moscow office complex, ensuring efficient and dependable safety performance in a critical application.

Danfoss pumps chosen to protect Chinese cultural heritage from fire

Danfoss PAH high-pressure pumps were selected to power an advanced high-pressure water mist fire suppression system in China. These pumps provide reliable, efficient, and compact performance, ensuring optimal safety and protection in critical applications.

NorStar specifies reliable Danfoss pumps to power innovative aeroponic irrigation system

PAH pumps help providing a reliable clean pressure for fogoponic irrigation system used for growing potato seeds. The fact that the PAH pumps use no oil for lubrication is very important. This means that no contamination can be spread and put the high-value production at risk.

Finnish sawmill doubles humidification capacity with the same Danfoss PAH pump

Danfoss pump doubles capacity as cost efficiently as possible and without sacrificing reliability.

H₂O engineering uses Danfoss high-pressure pump to make fine wine even better in Napa Valley

Danfoss pump helps enabling winery to fine-tune processes more precisely. Small footprint and simple maintenance are valuable add-ons.
