Add-on Valves for H1 Motors

Where to buy

Taking H1 Motors to even more applications

Danfoss is pleased to offer a variety of add-on valves for our family of H1B bent-axis motors, expanding the motor’s application to open-circuit systems.

Our CBVs (counterbalance valves) enhance system performance by improving system efficiency, and features reduced pressure drop, integrated pressure relief valves, simplifying system integration and reducing time-to-market.  Choose DN25A for 80 and 110cc H1B, DN32A for the 160cc, or DN32B for 210 and 250cc.

The new FHPRV (full-flow high pressure relief valve) is a bolt-on valve that provides overpressure protection in high-power applications.

Danfoss Power Solutions H1B with Counterbalance Valves

Take Danfoss' proven H1B bent-axis motors to open-circuit propel applications with our CBV (counterbalance valve) solution. Ideal for when propel isn't the machine's primary function, but when smooth travel and controlled braking are required.

Danfoss Power Solutions H1B with Counterbalance Valves

Features and benefits

Counterbalance Valves:

  1. H1B + CBV: aligned designs and proven technology to generate the perfect match – with quick and easy installation
  2. Longer spool stroke, resulting in higher performance and smoother reaction
  3. Highly flexible and configurable due to the variety of spool and damping characteristics – this means precise and repeatable control – and optimized productivity
  4. Integrated brake release for the external brake and anti-cavitation valve – modularity enabling fast adaption and customization when needed
  5. Reduced pressure drop rates gives your machine increased efficiency and improved energy efficiency



FHPRV:

  1. Provides high-flow pressure relief at the motor - critical for motor protection in demanding applications
  2. Prevents damage to the motor and pump during extended overpressure situations
  3. Full-flow relief functionality without a significant increase in motor size or circuit complexity
  4. Can be used in either closed-circuit or open-circuit applications

Our valves are ideal for a wide variety of systems:

  • Wheeled and crawler excavators
  • Crawler and truck cranes
  • Drilling and pipe-handling applications
  • Rotating attachments (e.g. rotary tiller)

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide Counterbalance valve systems for H1B motors in open circuits technical information English Multiple 01 Apr, 2024 3.9 MB .pdf
User guide Full flow high pressure relief valve for H1B motors technical information English Multiple 12 Feb, 2025 2.9 MB .pdf
Data sheet H1 160cc Bent Axis Variable Motor with Counterbalance Valve DN32A Data Sheet English Multiple 09 May, 2023 1.6 MB .pdf
Data sheet H1 210/250cc Bent Axis Variable Motor with Counterbalance Valve DN32B Data Sheet English Multiple 09 May, 2023 1.8 MB .pdf
Data sheet H1 80cc and 110cc Bent Axis Variable Motor with Counterbalance Valve DN25A Data Sheet English Multiple 22 Jan, 2024 3.0 MB .pdf

Related products

H1B 110cc Bent Axis Motor
H1B bent axis variable motors

Danfoss’ powerful and popular H1B Bent-Axis Variable Closed-Circuit Motor is available in multiple displacements: 60, 80, 110, 160, 210, and 250cc.  Available with electric proportional control or electric two-position control, it can also be used in open-circuit applications with the available counterbalance valve.
Fixed displacement bent-axis hydraulic motor

Danfoss H1F fixed displacement, bent-axis hydraulic motors can be used in open- and closed-circuit applications. With proven H1 technology and up to 95% efficiency, H1F also features a short length and 32-degree angle.

Hydraulic integrated circuit HIC
Hydraulic integrated circuit (HIC)

Danfoss ICS specializes in Hydraulic Integrated Circuits (HICs) allowing customers to use our broad portfolio of cartridge valves to create innovative solutions for optimal machine control and performance.

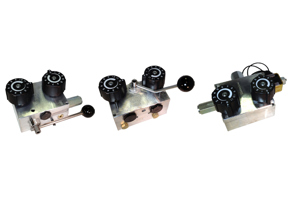

Spreader HICs
