Reliable power in the toughest conditions

Engineered to excel in demanding industrial applications, Hydrokraft heavy-duty open-circuit piston pumps feature variable and fixed displacements, a modular design and flexible mounting options. Use Hydrokraft piston pumps for tough applications such as primary metals power units, marine cranes, and thrusters.

Fitting for a wide range of applications

Hydrokraft open-circuit piston pumps feature industry-standard mounting capabilities and a modular construction, making these open-circuit pumps a perfect fit for many applications. Choose from fixed or variable Hydrokraft options in sizes to meet your needs: PVX, PVW, PFX, PFW, PVZ.

Increased durability, decreased noise levels

The pumps come in a robust housing enclosure, which increases pump durability and reduces operating noise. Their tension-rod design also contributes to quieter operation.

Reliable and long-lasting

Hydrokraft open-circuit piston pumps are axial piston pumps with a swash plate design for reliable operation and a longer life. Plus, their rotating and pressure-loaded parts are pressure-balanced for greater efficiency and serviceability.

Mobile pump installations and combinations

  • Through-drive design allows for multiple pump installations from a single shaft
  • Foot mounting option allows for easy bedplate installation
  • Multiple pump combinations available

Product range

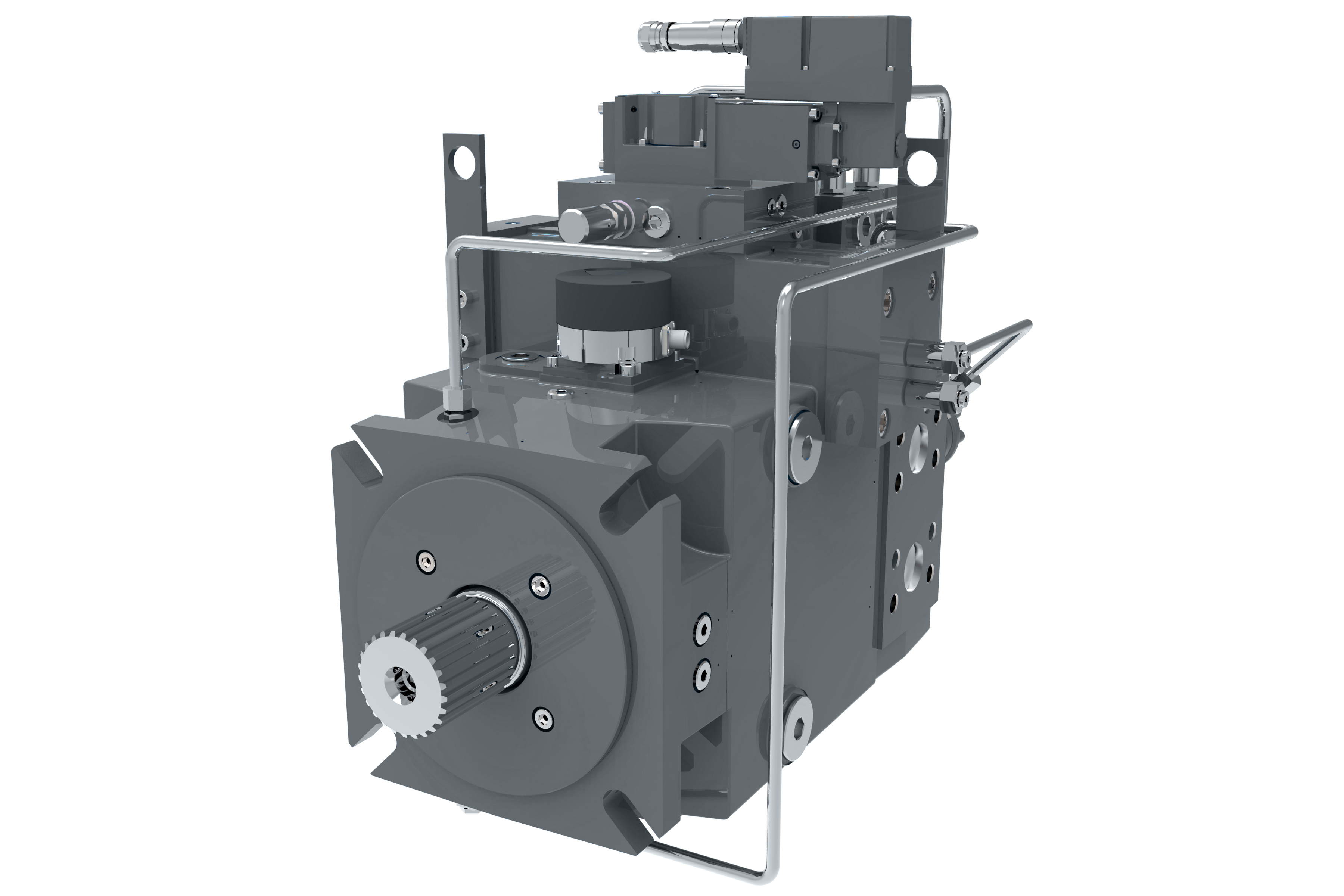

PVX/PFX

Hydrokraft PVX pumps are widely used where their range of specialized pump controls can optimize circuits.

  • Oversize shafts and bearings
  • Integrated pilot pump, filter and pressure relief valves available
  • Modular design gives these pumps a wide range of applications
  • Fast response times
  • Technology: Axial Piston
  • Displacements from 66 - 250 cc [4 to 15.2 cu in]
  • Continuous operating pressure 350 bar (5076psi)
  • Peak pressure up to 420 bar (6090 psi)
  • Rated speed up to 1800 rev/min

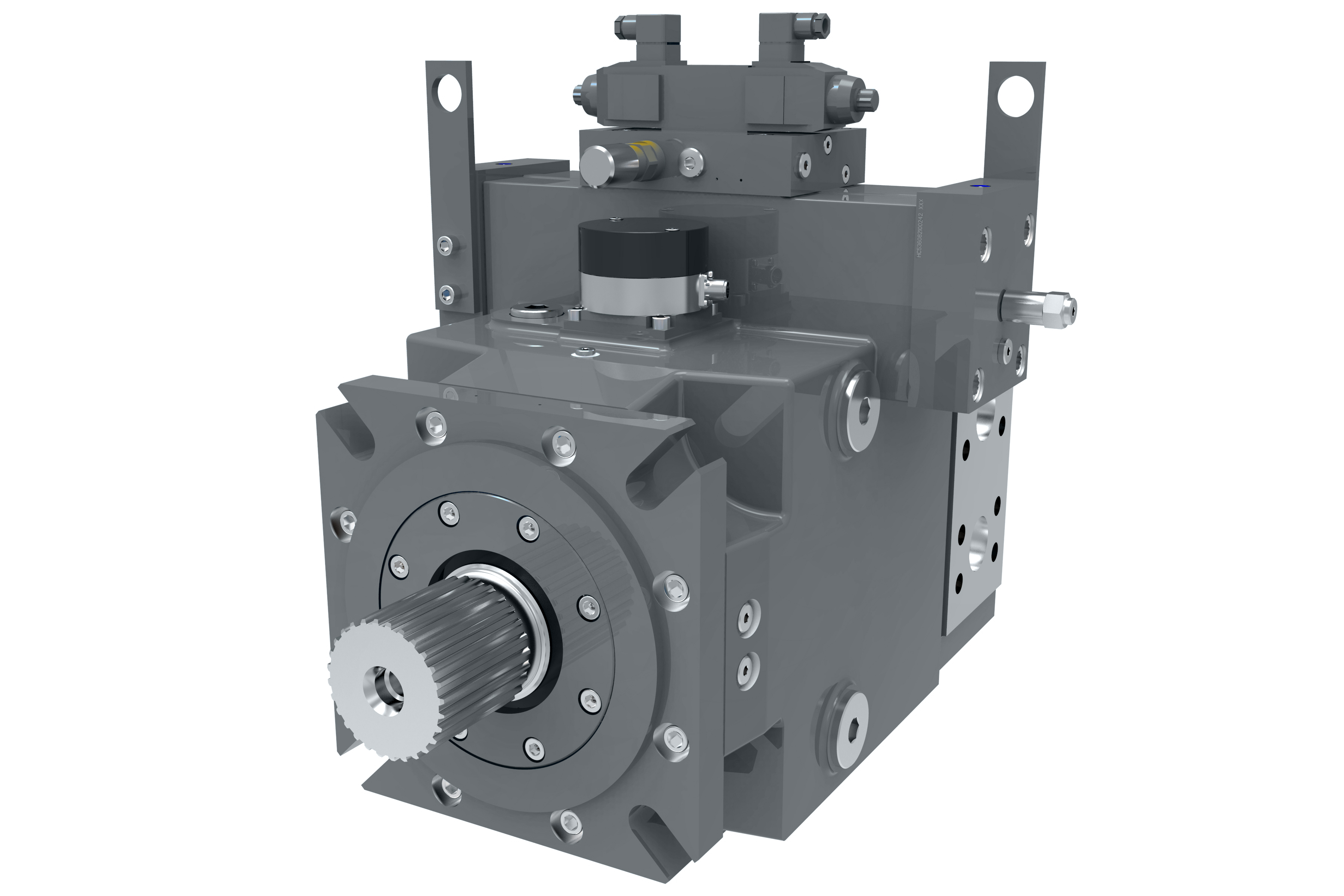

PVW/PFW

The PVWS pumps have a perpendicular style control mechanism, allowing tandem pump combinations with short lengths

  • Oversize shaft and bearings
  • Integrated pilot pump, filter and pressure relief valves available
  • Modular design gives these pumps a wide range of applications
  • Fast response times
  • Technology: Axial Piston
  • Displacements from 130 - 750 cc [7.9 to 45.7 cu in]
  • Continuous operating pressure 350 bar (5076psi)
  • Peak pressure up to 420 bar (6090 psi)
  • Rated speed up to 1800 rev/min

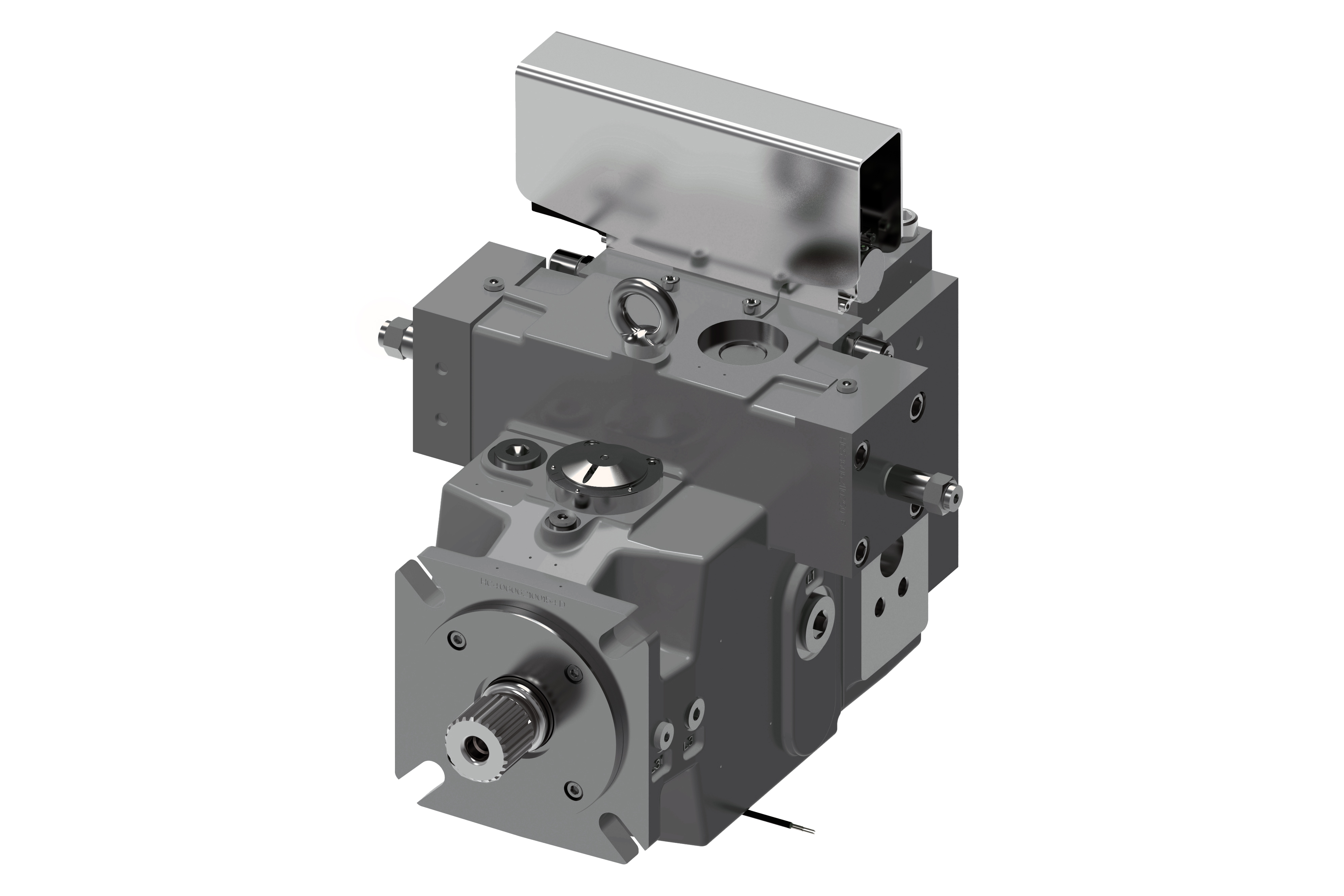

PVZ 130/180cc

The Hydrokraft PVZ pump with integrated KBF proportional valves is a proven solution for niche marine applications.

  • Built-in control via a Vickers by Danfoss KBF proportional valve
  • 48,000-hour service life operating at full ratings
  • Capable of clockwise and counterclockwise operation
  • Additional check-valve block prevents cavitations during reverse operation
  • Technology: Axial Piston
  • Displacements from 130 - 180 cc [7.9 to 10.98 cu in]
  • Continuous pressure 300 bar (4300 psi).
  • Peak pressure up to 450 bar (6500 psi).
  • Rated speed up to 1800 rev/min

Documents

Documents
Type Name Language Valid for Updated Download File type
Case story MAN Diesel & Turbo and Its Licensees Hydrokraft™ Piston Pumps English Multiple 20 Jul, 2023 490.6 KB .pdf
Data sheet PVZ-130/180 Hydrokraft Pump with KBF Product Data Sheet English Multiple 01 Nov, 2023 3.3 MB .pdf
Brochure Vickers® by Danfoss Hydraulics - Used in Civil Engineering English Multiple 17 Aug, 2023 980.0 KB .pdf
