We offer a full range of skive, non-skive, and reusable fittings for braided hoses used in medium- and high-pressure hydraulic systems. Our fittings provide leak-free performance, identification markings for ease of assembly, and optional added corrosion resistance.
- DURA-KOTE PLATING - Superior corrosion resistance
- INNOVATIVE DESIGN - Deliver performance and maximum uptime
- SYSTEM ENGINEERED - Extend hose assembly life
The next generation technology of Danfoss’ fittings are compatible with the high-performance and standard hose styles combining best-in-class technologies to meet and exceed the highest globally recognized standards for one- and two-wire braid hydraulic hose assemblies.
The total array of over 550 TTC fittings meets virtually all customer thread styles and configurations. The resulting hose assemblies provide superior performance in the demanding applications often encountered within mobile and industrial equipment.
Easy Assembly - the fittings have a scribe line around the circumference of the socket to easily identify the location where the die cage is positioned for crimping.

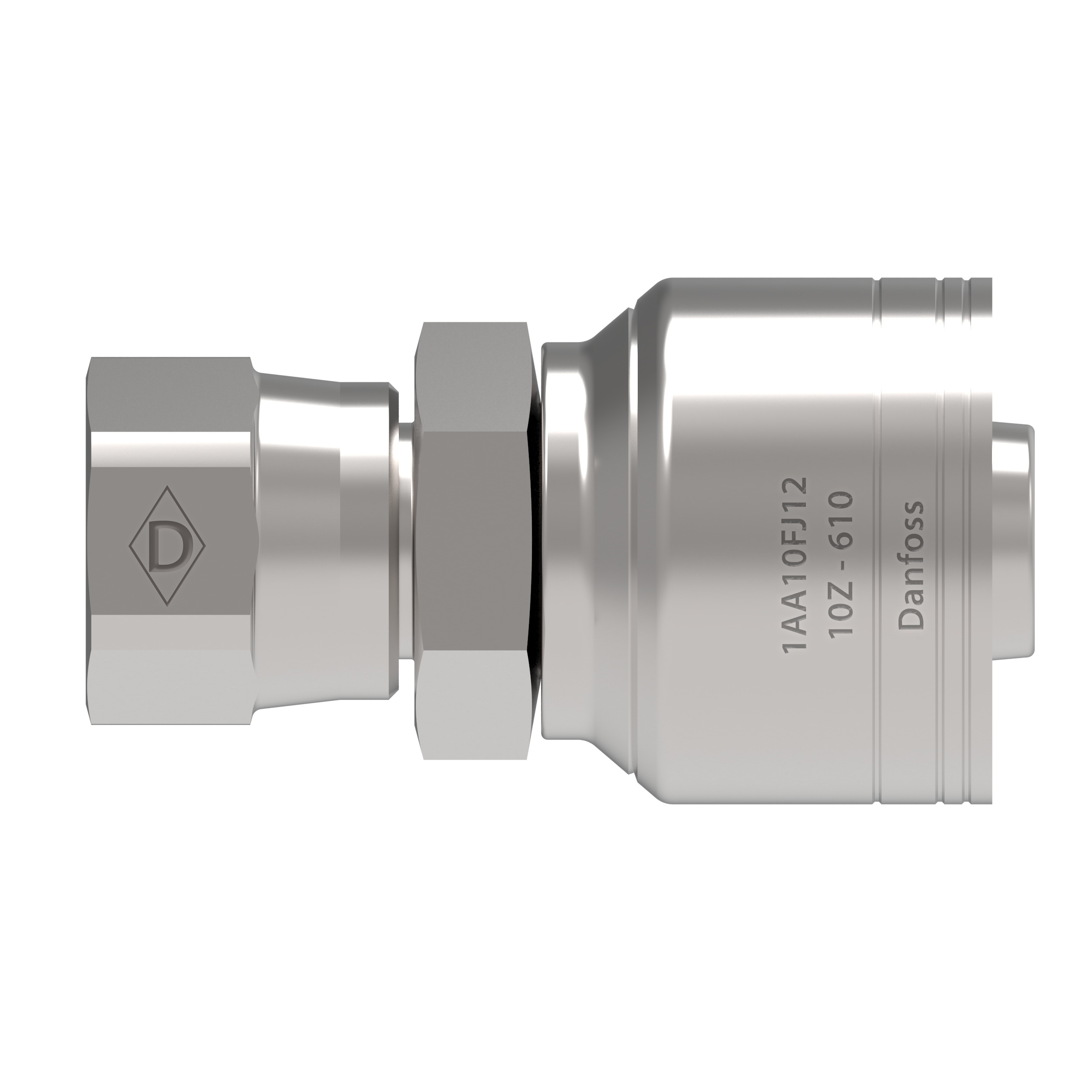

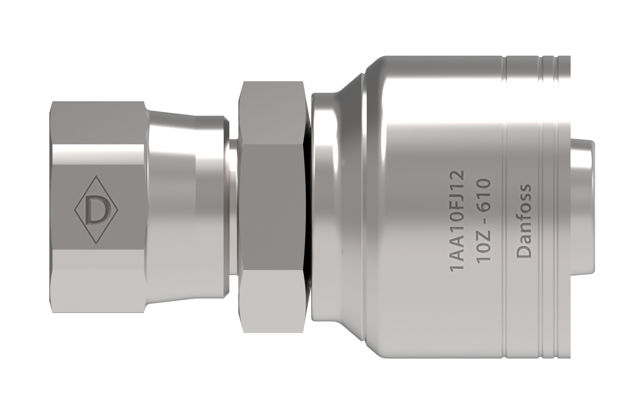

- Premium 1A TTC series and Z series braided hose fittings features and benefits
- Advanced “Through-the cover” design provides higher operating and burst pressure
- Flat crimp for easier routing
- Compatible with multiple hose styles to accommodate most application needs
- Dura-Kote™ plating technology for up to 1,000 hours of corrosion resistance
- Bite-the-wire technology for best-in-class connection and sealing
- SAE J1176 class-zero leakage with approved hose styles
- Over 550 1A series part numbers are available to provide the perfect design match
- MatchMate identification system provides markings on hoses, fittings, and dies to enable quick and easy assembly

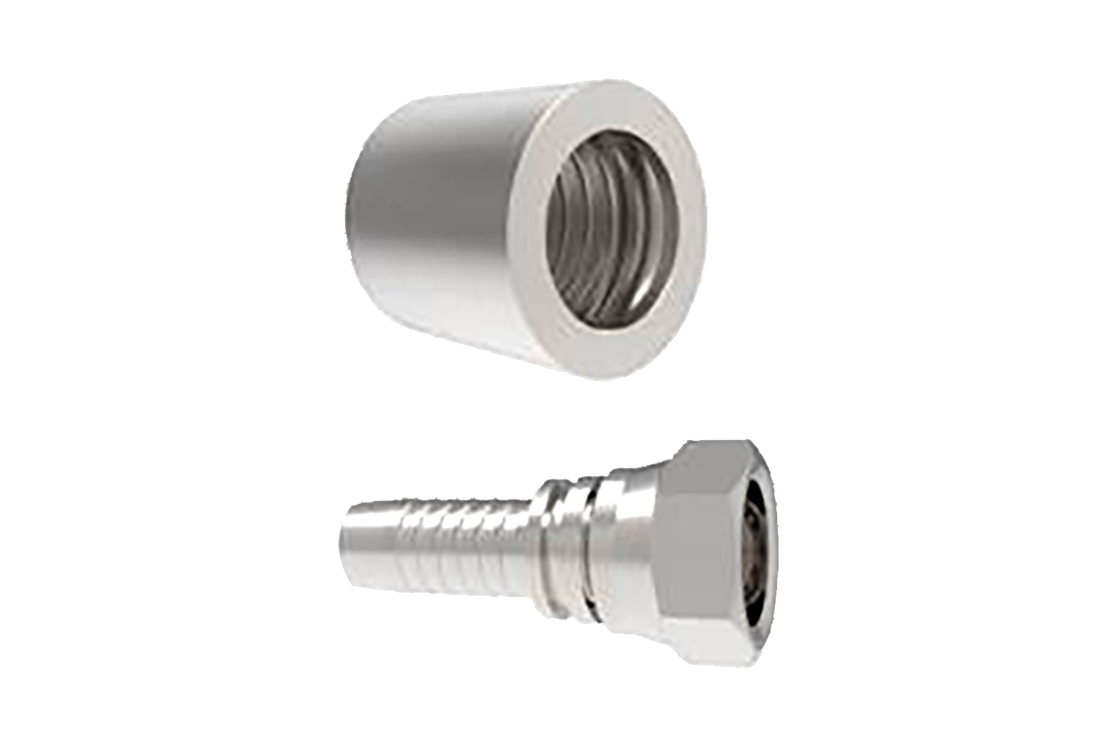

This competitive two-piece hose fitting is qualified for use with Winner standard hoses. Non-skive for easier and quicker assembly, as well as safe and leak-free connections. The same nipple part number for wire braided standard hoses can also be used for these hoses, just by utilizing a different socket.
Winner two-piece fittings (Standard) braided hose fittings features and benefits
- Non-skive, two-piece crimp fitting
- One nipple part number for both one- and two-wire braided standard hoses
- Meets industry specifications when used with the standard hoses
- Clear silver hexavalent chromium-free plating
Dura-seal technology
Class " 0 " leakage protection. This patent-pending innovation from Danfoss eliminates hose assembly cool-down leakage, while extending hose assembly life, reducing equipment down-time.
Dura-Kote plating advantage
Danfoss hose fittings now come with Dura-Kote plating, which gives you up to 1,000 hours of corrosion resistance. Dura-Kote is an innovative plating technology offers more corrosive protection for longer life, lower replacement costs, and improved appearance. This corrosion protection decreases the likelihood of leaking, which means less equipment downtime and greater productivity. Plus, there are no compatibility issues with Dura-Kote plating. The Danfoss hose fittings you rely on today will look, feel, and perform exactly the same.
- Same form and functional capabilities
- Same torque values and pressure ratings
- Same silver appearance
- Same procedures for assembly
Corrosion spreads- choose your components wisely! In a 650-hour salt spray test, Danfoss’ family of components showed no corrosion migration in comparison to an assembly that combined an Danfoss fitting with competitor components. This test illustrates why it is so important to choose Danfoss components for your entire hose assembly.
