Advanced display features with unparalleled sunlight viewability

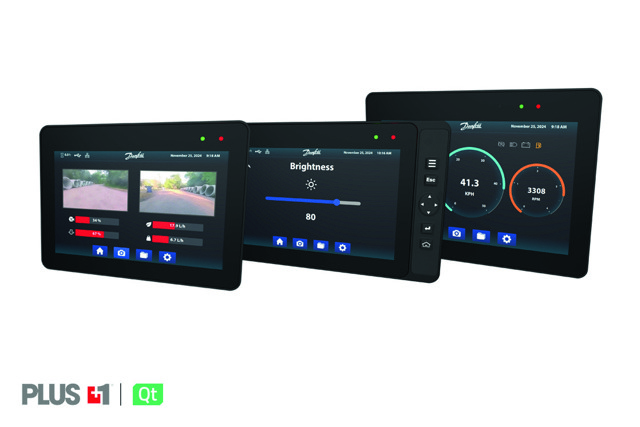

The Danfoss DM1000 and DM1200 series (10” and 12”) bring modern features and extreme durability to the mobile off-highway cab experience. At the same time adding new and advanced features to the DM display line.

The DM1X00 family of fully configurable displays, features outstanding viewability making information easily accessible. The display’s high brightness, optical bonding and anti-glare screen technologies provide market leading sunlight viewability in the light hours. At the same time the embedded light sensor helps adjust brightness automatically in low light. This is improving the productivity in all hours of the day. The high-resolution display experience is enhanced by IPS LCD technology bringing great color clarity at wide viewing angles.

While delivering an outstanding 800 MHz i.MX6 performance, the DM1X00 series is built to withstand harsh operating environments with its IP66 and IP67 rating. The water-resistant screen, allowing for multi-touch while wearing gloves.

The new large screen size displays extend the performance by adding wireless options. This allows our customers the ability to service machines easily with PLUS+1® Service Tool. Without connecting a cable to the machine. Read and update machine parameters, gather analytics, or download applications to PLUS+1® programmable hardware over Bluetooth® or Wi-Fi.

Integrated infotainment features such as the file viewer and media player let the operator view documents and media files. This by using the audio line out to connect to the vehicle speaker system.

Features and benefits

16:9 wide screen ratio (1280 x 800 resolution)

Flat front design and minimal bezel

Advanced camera solutions viewing up to 4 cameras and while displaying up to 2 at the time

Ethernet, USB 2.0 high speed

Option for WiFi, Bluetooth® and GNSS

Options for keypad with either 8 buttons on each side (16 total) or 8 buttons plus navigation panel (16 total)

Multicolor optical signal (2 RGB LEDs)

Integrated ambient light sensor for automatically adjusting brightness to lighting conditions

Easy programming with the PLUS+1® Widget library

Documents

Documents
Type Name Language Valid for Updated Download File type
Data sheet PLUS+1® DM1x00 Series Displays Data Sheet Chinese (CN) Multiple 24 Nov, 2020 1.5 MB .pdf
Data sheet PLUS+1® DM1x00 Series Displays Data Sheet English Multiple 07 Feb, 2022 1.3 MB .pdf
User guide PLUS+1® DM1x00 Series Displays Technical Information French Multiple 26 Jul, 2021 5.4 MB .pdf
User guide PLUS+1® DM1x00 Series Displays Technical Information German Multiple 21 Jun, 2021 5.4 MB .pdf
User guide PLUS+1® DM1x00 Series Displays Technical Information Italian Multiple 26 Jul, 2021 5.4 MB .pdf
User guide PLUS+1® DM1x00 Series Displays Technical Information English Multiple 07 Feb, 2022 5.4 MB .pdf
Operating guide PLUS+1® Mobile Machine Displays - Classic to Vector-Based Screen Editor User Manual English Multiple 22 Mar, 2019 2.8 MB .pdf
