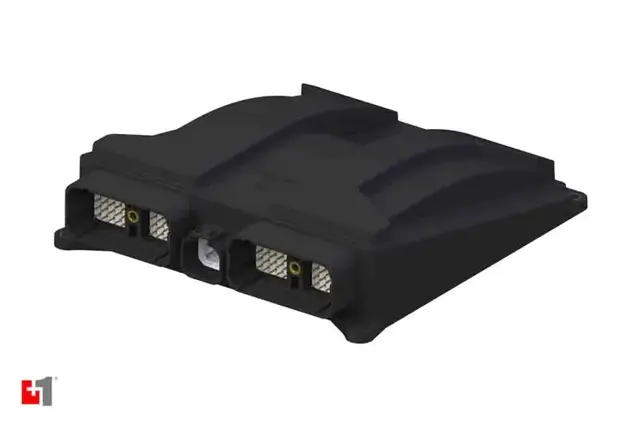

PLUS+1® XL controllers

Powerful, versatile high-pin solution

CAN-based PLUS+1^® XL controllers offer a high I/O pin count for optimal vehicle control. PLUS+1® XL controllers provide space savings and optimize installation costs while meeting the latest technology needs for high-end performance. Programming our controllers requires minimum effort with our easy-to-learn PLUS+1® GUIDE software.

High-pin controller with integrated safety functionality and the most recent machine interfaces.

With the highest pin-count in the PPLUS+1^® controller families, the XL controller eliminates the need for expansion modules, supporting a more stream lined machine design and reduced space consumption, which also makes it suitable for very compact vehicles.

The Power of PLUS+1® controllers

Enables the versatile and continuously expanding PLUS+1^® tool chain and ecosystem saving costs and reducing total cost of ownership.

Utilizing the PLUS+1^® tool chain, provides higher flexibility and faster development cycles.

Save programming time and quickly build your machine application using the graphical PLUS+1® GUIDE application.

For trouble shooting and technical field support, the PLUS+1 suite comes with the powerful and free PLUS+1^® Service Tool that helps quickly connecting to the CAN system and read or fine tune parameters.

For advanced programming use cases the system allows for POU’s in C-code as well as perform simulation in Matlab Simulink.

Dual Boot capability and supports programming in full C-Open code application with the ability to port and program PLCopen applications (IEC-61131-3 Industrial Programming Standard) using Structured Text, Ladder Diagrams and Function Block Diagrams.

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Safety guide	PLUS+1 controller XL 104-xxxx functional safety implementation safety manual	English	Multiple	19 Jun, 2024	6.0 MB	.pdf
Data sheet	PLUS+1® controller XL104-0000 data sheet	Japanese	Japan	18 Nov, 2024	6.4 MB	.pdf
Data sheet	PLUS+1® controller XL104-0000 data sheet	English	Multiple	29 Aug, 2024	1.1 MB	.pdf
User guide	PLUS+1® XL Controller Platform 100+4 pin Technical Information	English	Multiple	03 Sep, 2020	2.9 MB	.pdf
User guide	PLUS+1® XL Controller Platform 100+4 pin Technical Information	Italian	Multiple	12 Jul, 2021	2.9 MB	.pdf
Data sheet	PLUS+1® XL104-0000 Controller Data Sheet	Chinese (CN)	China	20 Oct, 2020	1.8 MB	.pdf
Data sheet	PLUS+1® XL104-0000 Controller Data Sheet	Japanese	Multiple	18 Nov, 2024	5.5 MB	.pdf

Downloads

PLUS+1 XL microcontrollers

Download 2D/3D drawings and certificates on PowerSource. Select the required product and then click on the respective tabs to access available drawing files and certificates.
