The following handheld transmitters are currently available:

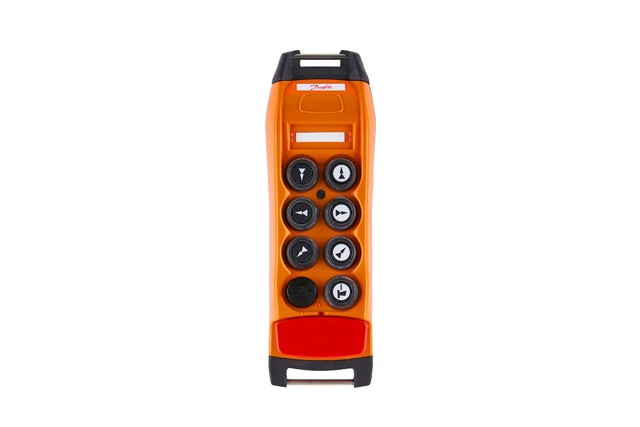

T70 1: The classic for lifting applications
T70 1 is the classic handheld unit for lifting applications. This is a very well established transmitter and it is being used in industrial applications such as the overhead crane.
The T70 1 allow us to have the following mechanisms and accessories:
- LCD Display
2 x 12-character LCD display for information feedback from receiver, allowing safety control and manoeuvre operation.
- Removable EEPROM SIM module
Removable memory card. Quick and easy restoration of service with a spare unit in the event of transmitter or receiver failure. If the transmitter is damaged, the replacement can copy the EEPROM from the receiver.
- Range Limiter
The remote can only be used when there is an infrared connection between the infrared transmitter and the radio transmitter. This rules out risk situations caused by activating the remote without a clear and safe view of the machine.
- TWIN synchro
The most compact TANDEM solution.
A system conformed by a master transmitter (Push button or Console box). The use of radio signals simultaneously and in a synchronized way allows the movements of two cranes working in tandem mode.
- APC (Automatic Power Control)
This technology modifies the power of the radio transmission to minimize battery consumption and interference between nearby pieces of equipment. Longer battery life can be provided. Continuity of operations between devices in the same working environment can be achieved, respectively.
- Multi-band radio with full-duplex communication
Worldwide compatible multi-band radio. Possibility of full-duplex communication. Easily customizable via EEPROM.
- Multiple transmitter system
Possibility of working with multiple transmitters and a single receiver. The first device to link up assumes control of the machine.
- LBT (Listen Before Transmitting)
On transmitter start-up, the radio remote equipment will automatically look for a free channel. If another user activates a radio remote device on the same working channel, the transmitter can simply be switched off and on again. Helping to find another free channel and allow work to continue.
- Tandem systems
For situations requiring the use of two or more independent cranes moving simultaneously. The master transmitters can choose whether to work simultaneously with several receivers or independently with one of them.
- Multiple receiver systems
Possibility of working with a single transmitter and multiple receivers at the same time.
| Transmitter | T70 1 |
| Stop function | Cat. 3 – PLd |
| Ingress protection | IP65/NEMA4 |
| Anti condensation system | N/A |
| Frequency band | Multiband (400 – 930 MHz) |
| Main mechanisms (max. #) | Push button (6) |
| Auxiliary mechanisms | Toggle and rotary switches |
| Removable EEPROM | External |
| Battery model | BT06K |
| Battery life | 10 hours |
| Operating temperature range | -20C +70C (-4F +158F) |
| Weight (with battery) | 460 grams |
| Harness | Hand strap / shoulder strap |
| Display | 2 x 12 Char LCD |
| Cable connection | N/A |
| Range limiter | Available |
| Associated receivers | R06/R13/R70/MPCAN/MP08 |
T70 1 Hall: Precision at your fingertip
T70 1 Hall represents the evolution of the T70 1. This handheld has a high-sensitivity proportional push button. This allows our customers to use it in both industrial and off-highway machinery.
The T70 1 Hall allow us to have the following mechanisms and accessories:
- LCD Display
2 x 12-character LCD display for information feedback from receiver, allowing safety control and manoeuvre operation.
- Removable EEPROM SIM module
Removable memory card. Quick and easy restoration of service with a spare unit in the event of transmitter or receiver failure. If the transmitter is damaged, the replacement can copy the EEPROM from the receiver.
- Range Limiter
The remote can only be used when there is an infrared connection between the infrared transmitter and the radio transmitter. This rules out risk situations caused by activating the remote without a clear and safe view of the machine.
- APC (Automatic Power Control)
This technology modifies the power of the radio transmission to minimize battery consumption and interference between nearby pieces of equipment. Longer battery life can be provided. Continuity of operations between devices in the same working environment can be achieved, respectively.
- Multi-band radio with full-duplex communication
Worldwide compatible multi-band radio. Possibility of full-duplex communication. Easily customizable via EEPROM.
- Multiple transmitter system
Possibility of working with multiple transmitters and a single receiver. The first device to link up assumes control of the machine.
- LBT (Listen Before Transmitting)
On transmitter start-up, the radio remote equipment will automatically look for a free channel. If another user activates a radio remote device on the same working channel, the transmitter can simply be switched off and on again. Helping to find another free channel and allow work to continue.
- Tandem systems
For situations requiring the use of two or more independent cranes moving simultaneously. The master transmitters can choose whether to work simultaneously with several receivers or independently with one of them.
- Multiple receiver systems
Possibility of working with a single transmitter and multiple receivers at the same time.
| Transmitter | T70 1 Hall |
| Stop function | Cat. 3 – PLd |
| Ingress protection | IP65/NEMA4 |
| Anti condensation system | N/A |
| Frequency band | Multiband (400 – 930 MHz) |
| Main mechanisms (max. #) | Pushbutton (6) |
| Auxiliary mechanisms | Toggle and rotary switches |
| Removable EEPROM | External |
| Battery model | BT06K |
| Battery life | 10 hours |
| Operating temperature range | -20C +70C (-4F +158F) |
| Weight (with battery) | 460 grams |
| Harness | Hand strap / shoulder strap |
| Display | 2 x 12 Char LCD |
| Cable connection | N/A |
| Range limiter | Available |
| Associated receivers | R13/R70/MPCAN/MP08 |
T70 2: Multiple configurations on a compact transmitter
T70 2 is a reliable transmitter, used in industrial applications, such as the overhead crane. This handheld unit has 10 push buttons which will allow you to have multiple configurations.
The T70 2 allows you to have the following mechanisms and accessories:
- LCD Display
2 x 12-character LCD display for information feedback from receiver, allowing safety control and manoeuvre operation.
- Removable EEPROM SIM module
Removable memory card. Quick and easy restoration of service with a spare unit in the event of transmitter or receiver failure. If the transmitter is damaged, the replacement can copy the EEPROM from the receiver.
- Range Limiter
The remote can only be used when there is an infrared connection between the infrared transmitter and the radio transmitter. This rules out risk situations caused by activating the remote without a clear and safe view of the machine.
- APC (Automatic Power Control)
This technology modifies the power of the radio transmission to minimize battery consumption and interference between nearby pieces of equipment. Longer battery life can be provided. Continuity of operations between devices in the same working environment can be achieved, respectively.
- Multi-band radio with full-duplex communication
Worldwide compatible multi-band radio. Possibility of full-duplex communication. Easily customizable via EEPROM.
- Twin synchro
The most compact TANDEM solution.
A system conformed by a master transmitter (push button or console box). It controls using radio signals simultaneously and in a synchronized way the movements of two cranes working in tandem mode.
- Multiple transmitter system
Possibility of working with multiple transmitters and a single receiver.
- LBT (Listen Before Transmitting)
On transmitter start-up, the radio remote equipment will automatically look for a free channel. If another user activates a radio remote device on the same working channel, the transmitter can simply be switched off and on again. Helping to find another free channel and allow work to continue.
- Tandem systems
For situations requiring the use of two or more independent cranes moving simultaneously. The master transmitters can choose to work simultaneously with several receivers or independently with one of them.
- Multiple receiver systems
Possibility of working with a single transmitter and multiple receivers at the same time.
| Transmitter | T70 2 |
| Stop function | Cat. 3 – PLd |
| Ingress protection | IP65/NEMA4 |
| Anti condensation system | N/A |
| Frequency band | Multiband (400 – 930 MHz) |
| Main mechanisms (max. #) | Pushbutton (10 |
| Auxiliary mechanisms | Toggle and rotary switches |
| Removable EEPROM | External |
| Battery model | BT06K |
| Battery life | 10 hours |
| Operating temperature range | -20C +70C (-4F +158F) |
| Weight (with battery) | 550 grams |
| Harness | Hand strap / shoulder strap |
| Display | 2 x 12 Char LCD |
| Cable connection | N/A |
| Range limiter | Available |
| Associated receivers | R13/R70/MPCAN/MP08/MP20 |

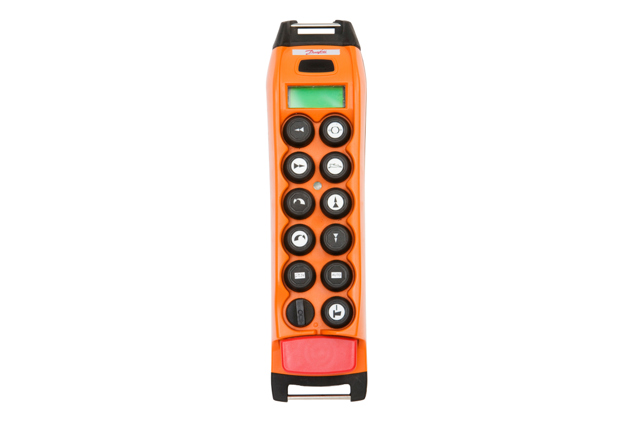

T70 2 Hall: Precision and customization
T70 2 Hall represents the evolution of the T70 2. This handheld has a high-sensitivity proportional push button. This allows our customers to use it in both industrial and off-highway machinery.
The customizability of the T70 2 Hall allow us to have the following mechanisms and accessories:
- LCD Display
2 x 12-character LCD display for information feedback from receiver, allowing safety control and manoeuvre operation.
- Removable EEPROM SIM module
Removable memory card. Quick and easy restoration of service with a spare unit in the event of transmitter or receiver failure. If the transmitter is damaged, the replacement can copy the EEPROM from the receiver.
- Range Limiter
The remote can only be used when there is an infrared connection between the infrared transmitter and the radio transmitter. This rules out risk situations caused by activating the remote without a clear and safe view of the machine.
- APC (Automatic Power Control)
This technology modifies the power of the radio transmission to minimize battery consumption and interference between nearby pieces of equipment. Longer battery life can be provided. Continuity of operations between devices in the same working environment can be achieved, respectively.
- Multi-band radio with full-duplex communication
Worldwide compatible multi-band radio. Possibility of full-duplex communication. Easily customizable via EEPROM.
- Multiple transmitter system
Possibility of working with multiple transmitters and a single receiver.
- LBT (Listen Before Transmitting)
On transmitter start-up, the radio remote equipment will automatically look for a free channel. If another user activates a radio remote device on the same working channel, the transmitter can simply be switched off and on again. Helping to find another free channel and allow work to continue.
- Tandem systems
For situations requiring the use of two or more independent cranes moving simultaneously. The master transmitters can choose to work simultaneously with several receivers or independently with one of them.
- Multiple receiver systems
Possibility of working with a single transmitter and multiple receivers at the same time.
| Transmitter | T70 2 Hall |
| Stop function | Cat. 3 – PLd |
| Ingress protection | IP65/NEMA4 |
| Anti condensation system | N/A |
| Frequency band | Multiband (400 – 930 MHz) |
| Main mechanisms (max. #) | Pushbutton (10) |
| Auxiliary mechanisms | Toggle and rotary switches |
| Removable EEPROM | External |
| Battery model | BT06K |
| Battery life | 10 hours |
| Operating temperature range | -20C +70C (-4F +158F) |
| Weight (with battery) | 550 grams |
| Harness | Hand strap / shoulder strap |
| Display | 2 x 12 Char LCD |
| Cable connection | N/A |
| Range limiter | Available |
| Associated receivers | R13/R70/MPCAN/MP08/MP20 |
