The ED3 offers fast, easy access to charging power, delivering 43 kilowatts, the highest AC charging power available. This allows heavy-duty electric vehicles to be charged overnight using readily available AC power outlets, facilitating quick deployment while minimizing charging infrastructure costs.
Features and benefits
Three-in-one function: AC charger with both AC/DC ePTO
44 kW charging power to battery and 44 kW of ePTO power (AC or DC) to auxiliary functions.
Support wide range of global grid-voltages and AC microgrid for plug-in function in the field (remote).
MD / HD trucks and off-highway application
DC ePTO with 44 kW for mechanical/hydraulic PTOs
Flexible to support different applications, compact design, and low weight
Galvanically isolated ePTO with full HV battery protection
Applications
- Agriculture
- Construction
- Forestry
- Material handling
- Mining
- Stationary equipment
- Transportation
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|

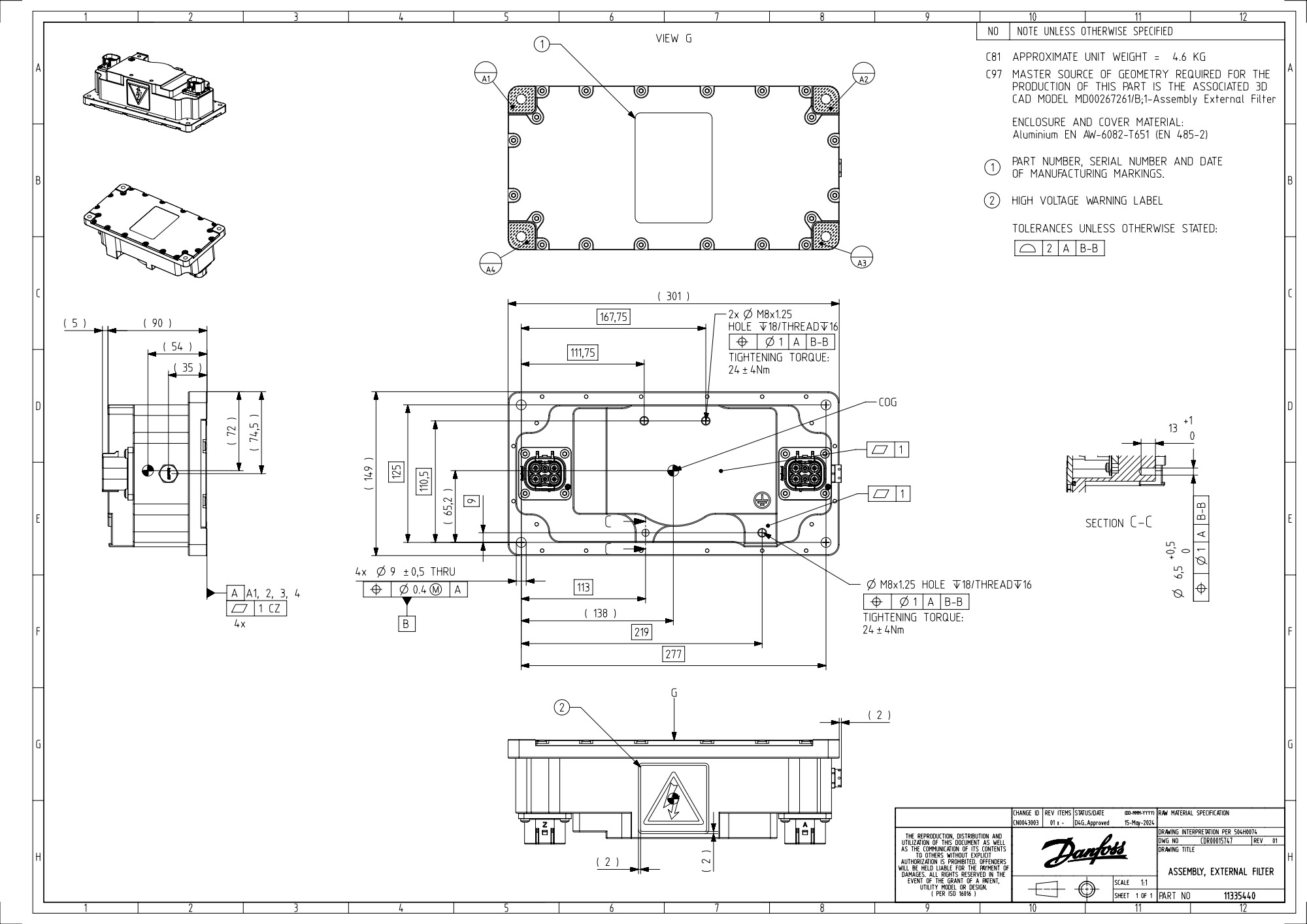

| Data sheet | EC-BDF1200-63 (EMI filter for ED3) data sheet | English | Multiple | 14 Apr, 2025 | 382.1 KB | |
| User guide | EC-BDF1200-63 (EMI filter for ED3) user guide | English | Multiple | 14 Apr, 2025 | 5.1 MB | |

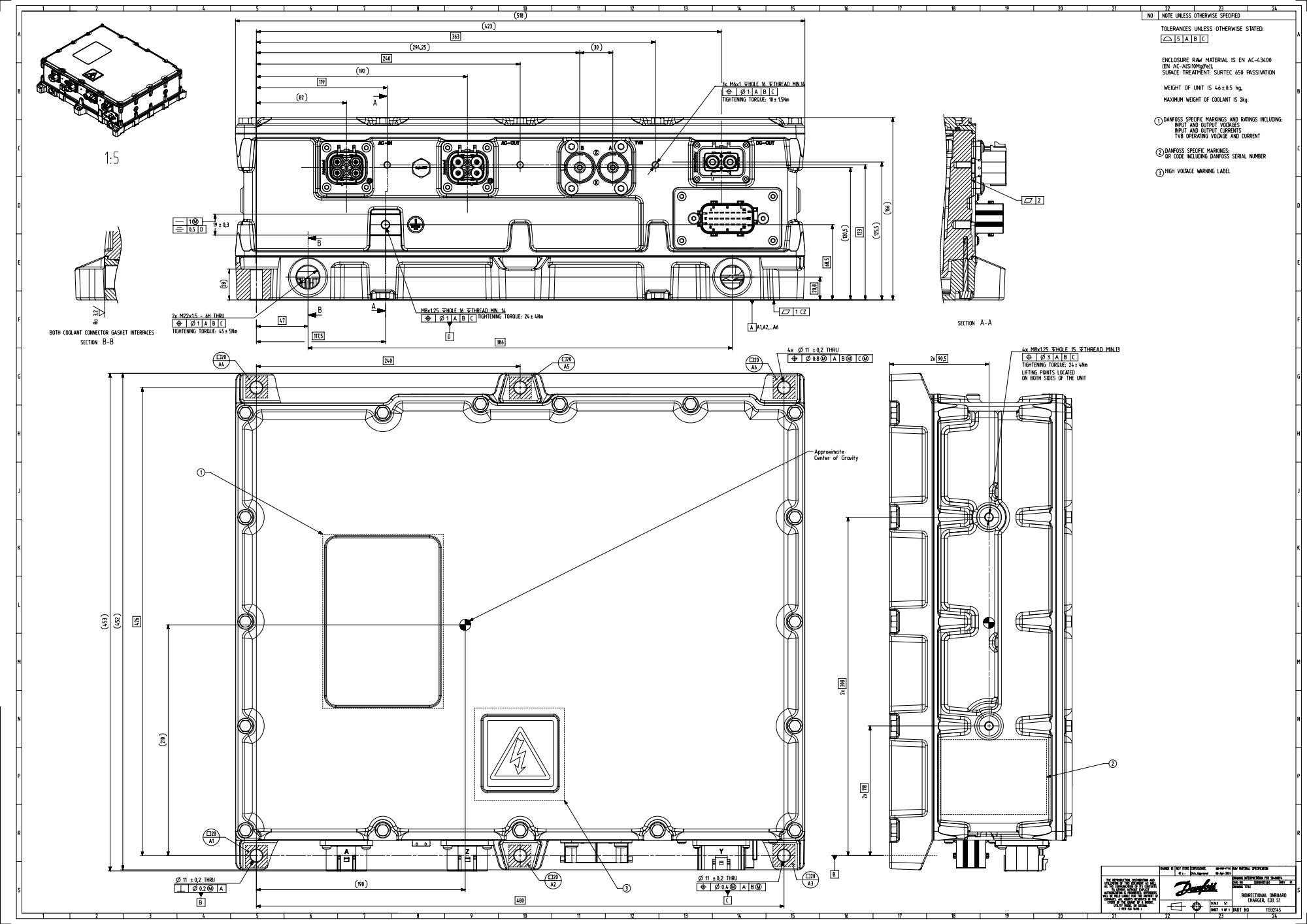

| Data sheet | ED3 (EC-BDC1200) electric converter data sheet | English | Multiple | 11 Sep, 2025 | 650.8 KB | |
| User guide | ED3 (EC-BDC1200) electric converter user guide | English | Multiple | 01 Apr, 2025 | 8.9 MB |
