ABNM-A5 Thermal Actuator

  • Overview
  • Products
  • Documents
  • Related products
  • Support

0-10V, Proportional actuator

The ABNM-A5 0-10V thermal actuator is designed for use with RA2000 thermostatic radiator valves in heating and cooling applications.

Control is done by a 0-10 V signal, which is provided either by a 3rd party room thermostat or, in most cases, by a central direct digital control (DDC) system. The actuator converts the 0-10 VDC signal into a proportional actuator travel to the RA2000 or RA-C series of valves.

Suitable applications for the ABNM-A5 actuator can include fan coil units, chilled ceiling applications, radiant floor heating or radiator valves. It is not recommended that the ABNM-A5 actuator be used on low pressure steam applications due to the increased temperature environment that the actuator is exposed to.

Features and benefits

Safety function of normally closed (NC) actuator during power failure

Low power consumption 1W

Removable plug-in cable

Simple snap-on installation

Actuator orientation in any installation position

Products

Code No. 082F1111
Model ABNM-A5 Modulating Actuator (requires 0 -10 VDC signal) 24VAC 1.0 VA
Type NC
Required Valve Body RA2000
Applications Chilled or hot water
Length Code No.
3 feet (1m) 082F1081
16 feet (5m) 082F1082
32 feet (10m) 082F1083
Code No. Description
VA330000 Uponor manifold
VA50H Honeywell Braukmann (except 110 Series)
VA54H MMA, Macon
VA640000 RTI (Pettinaroli) manifold
VA780000 Danfoss RA2000
VA80H Heimeier, Overtrop (since 1997), TACO (Alpha actuator, since 2005), Embassy manifold

Documents

Documents
Type Name Language Valid for Updated Download File type
Installation guide ABNM A5 Actuator Instructions For RA2000, VISKG122 English United States 07 Jul, 2016 792.8 KB .pdf
Catalog Hydronic Specialties Catalog VKKIA122 English United States 20 Mar, 2017 2.0 MB .pdf
Data sheet Modulating Valve Actuators, Type ABNM, 0-10 VAC English United States 06 Mar, 2016 589.6 KB .pdf

Related products

  • ABRA-A5 Electric Thermal Actuator, ON/OFF
    ABRA-A5 Electric Thermal Actuator, ON/OFF
    The ABRA-A5 ON/OFF zone valve actuator has been specifically designed for use with Danfoss RA2000, RA-C, and RA15/6 series of valves used for heating and cooling applications.

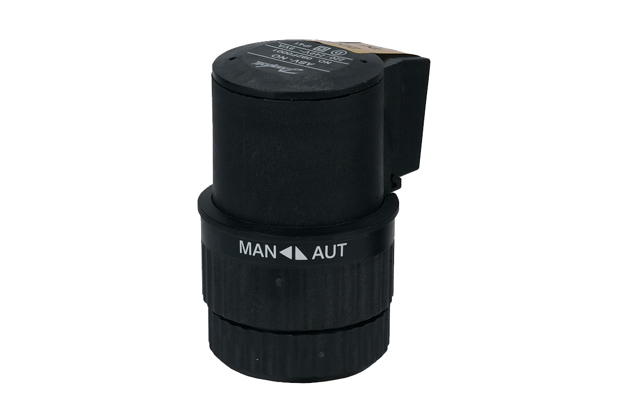

  • ABV Adjustable Flow Limitation and Manual Operation Actuator
    ABV Adjustable Flow Limitation and Manual Operation Actuator
    ABV is a thermo-hydraulic actuator for two point control used to control floor temperature, floor heating systems, hot-water service systems, zone valves and district heating systems.
  • TWA Actuators
    TWA-A and TWA-V Actuators
    TWA actuators are used to electrically activate valves on hot water heating systems, where slow opening and closing is desirable to eliminate water hammer associated with quick acting valves.
  • Thermostatic radiator valves
    Thermostatic radiator valves
    Robustly built and designed to meet the rigors of the residential, commercial and industrial sectors, a comprehensive range of Danfoss RA2000 thermostatic radiator valves is available for hot water, one-pipe steam, and two-pipe low pressure steam systems.

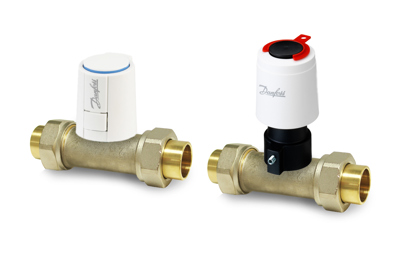

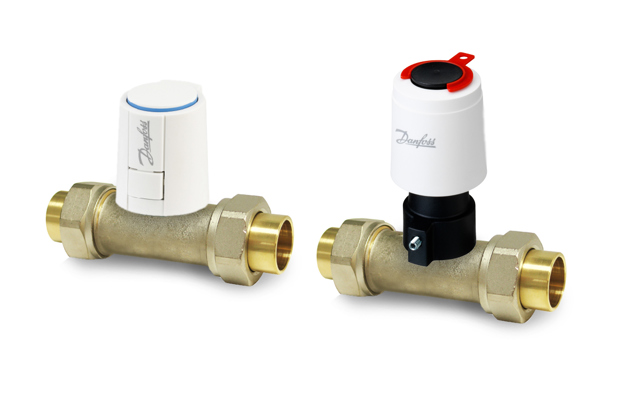

  • zone valve packs
    Zone valve packs
    Electronic zone valve packs are electrically activated valve controls that include both the actuator and valve body in one convenient package.
