VMT is a 2-way seated valve, used primarily for heating systems. The valve can be combined with any of the following thermostatic elements:

  • RAVK
  • ABV
  • TWA-V
  • RA2000 wall mount operators

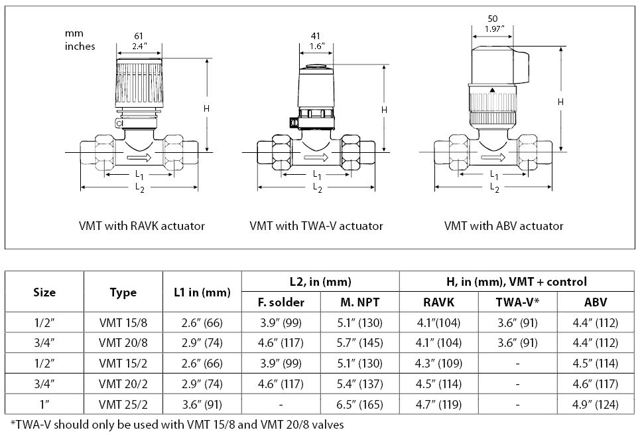

Design: Straight Union


  • RAVK
  • ABV
  • TWA-V*
  • RA2000 Wall Mount Operators*
    *065F0102 or 065F0104 only
Code No. Connection Size Connection Type Cv
065F0102 ½" Solder 1.8
065F0104 ¾" Solder 2.7
065F8960 ½" Solder 3.3
065F8961 ¾" Solder 5.9
065F1242 1" NPT (M) 9.4




Type Name Language Valid for Updated Download File type
Catalog Hydronic Specialties Catalog English Multiple 21 Mar, 2017 2.0 MB .pdf
Data sheet VMT Valve Datasheet English Multiple 05 May, 2020 521.1 KB .pdf

Related products

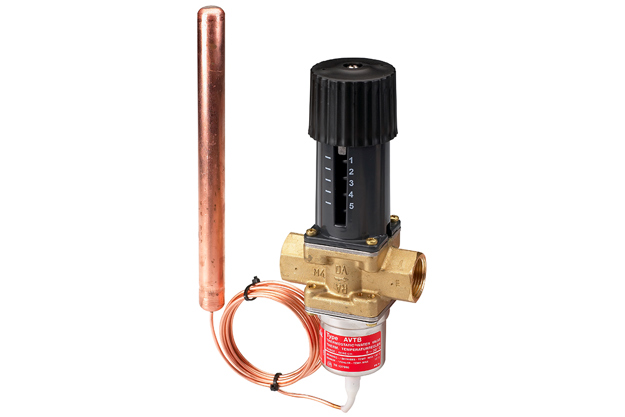

  • AVTB and AVTB-RA temperature controllers
    AVTB and AVTB-RA temperature controllers

    AVTB direct acting and AVTB-RA reverse acting proportional controllers are used to regulate the temperature of water.

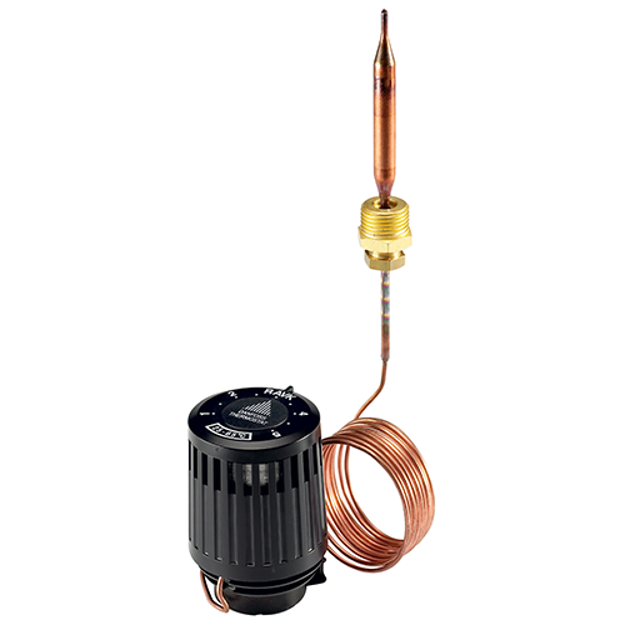

  • RAVK self acting thermostatic operator
    RAVK self acting thermostatic operator

    RAVK is a self-acting thermostatic operator used to control temperatures in small hot-water cylinders (i.e. storage tanks) or heat exchangers in hydronic hot water systems. RAVK closes on rising sensor temperature.

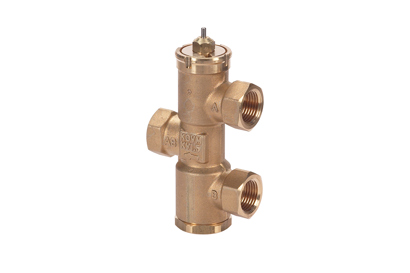

  • KOVM mixing valve
    KOVM mixing valve

    KOVM mixing valve bodies are designed to maintain room temperature by controlling hot (or chilled) water flow through radiators, fans, convectors, etc. Due to the KOVM’s unique bypass design, a constant system flow is achieved regardless of the room’s heating (or cooling) requirements. Therefore system pressures and flow rates are automatically kept constant without the need for pressure controlled bypass valves.

  • RA2000 radiator operators
    Radiator operators

    Danfoss RA2000 radiator operators maintain constant desired room temperatures, individually room by room and help to reduce energy consumption.
