Ready to run in demanding MV environments
When uptime is everything, this drive gives you reliability you can count on in heavy-duty engineering applications. The VACON® 3000 Enclosed Drive is a modular and configurable cabinet-built drive delivering superior performance, complexity reduction and easy maintenance. When robustness, space and weight are crucial to competitiveness this drive has you covered on all counts.
Ready to run: VACON 3000 Enclosed Drive
For ordinary installation conditions, choose these pre-engineered drives to save time and reduce complexity. You can be sure of robust reliable performance despite high ambient temperatures and tough environments, with IP54/NEMA 3S protection and an innovative integrated cooling system.
Supply voltages and power range
Continuous rating (variable torque)
•3300 V….2430-7030 kVA
•4160 V….2450-7060 kVA
Low overload 110% (constant torque)
•3300 V….2210-6390 kVA
•4160 V….2230-6420 kVA
High overload 150% (constant torque)
•3300 V….1620-4680 kVA
•4160 V….1630-4060 kVA
Features and benefits
Maximize operating uptime with robust design featuring IP54 ingress protection, liquid cooling and full power operation up to 45°C ambient temperature
Speed up engineering and installation with straightforward selection of drive and options, proven quality, very small footprint and simple commissioning process
Easy serviceability with front access and easý exchange phase module
Get equipped for the future with state-of-the-art 3L-NPC topology, AFE (low harmonic) or 12-pulse DFE configuration, modularity based on single-phase modules, Brake Chopper Unit (BCU) option, and other pre-engineered options
Availability
The VACON® 3000 portfolio is continually expanding. For detailed technical data and product availability, please contact your local Danfoss medium-voltage specialist.
Related applications

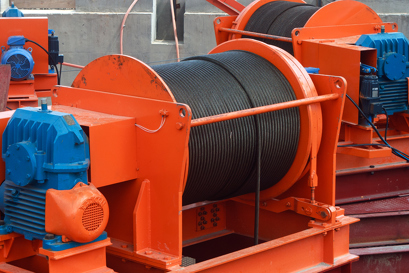

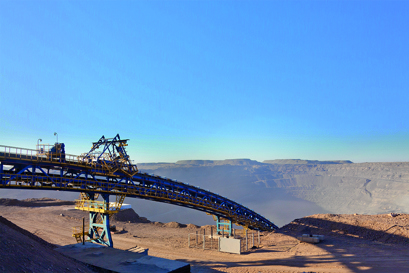

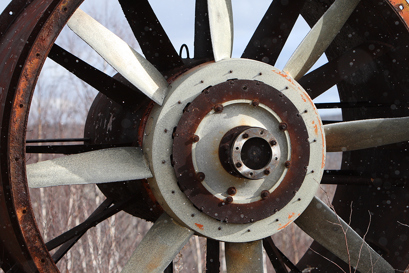

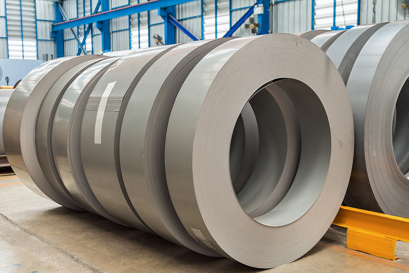

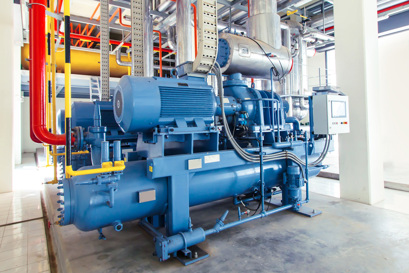

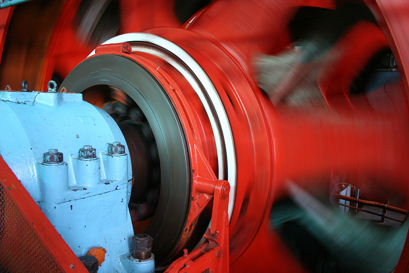

Use VACON® 3000 medium-voltage drives in the heavy industrial sector, which requires performance up to the high megawatt range: ship building, offshore, mining, oil and gas, energy, raw materials, chemical and petrochemical, and cement industries.
Case studies
-
if (isSmallPicture) {
See how Danfoss was able to provide a drive solution that could boost an inboard dredge pump and increase energy efficiency with a small footprint, minimum weight, and low volume - while being robust enough to withstand the harsh marine environment, with modular Medium Voltage Drives.
Danfoss Medium Voltage Drives
Learn more about the portfolio of Medium Voltage drives developed and produced at the Danfoss Drives facility in Research Triangle Park, North Carolina.
