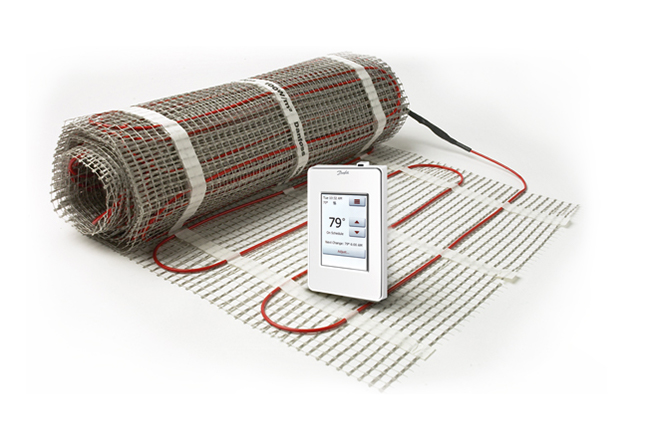

LX Floor Warming mats, cables, and controls
The Danfoss LX System includes an easy to install LX Floor Heating Mat or cable with your choice of thermostat. Affordable, efficient & perfect to install during renovations or home upgrades, our new LX205T Thermostats feature sleek design, intuitive control, & an easy to program touch screen.
Save up to 70% on installation time with our unique dual-adhesive mats & enjoy peace of mind with one of the most all-encompassing warranties in the industry!
Typical Applications
Enjoy warm floors in your bathroom and showers. Enhance comfort & safety and increase the resale value of your home.
Danfoss LX mats and cables are suitable for stone, tile, & engineered wood floor coverings. Enjoy clean heat and turn down your thermostat maximizing energy savings!

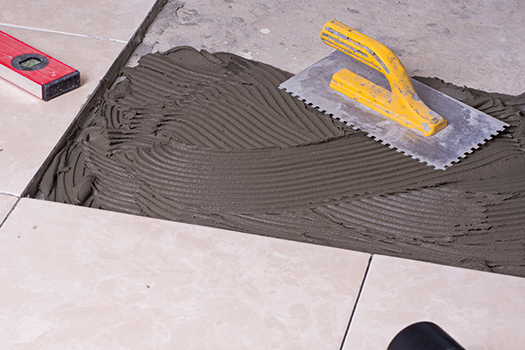

Renovating this season? Why not upgrade and install the Danfoss LX mat & thermostat to experience year-round comfort and a hassle-free low maintenance system.
Technical details

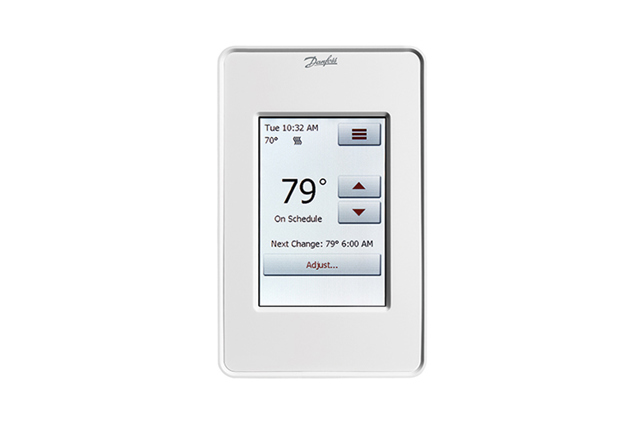

Features new sleek design, intuitive touch screen control, & easy to install process.
Code No. 008L5136
- Easy scheduling method
- Track power consumption
- Universal compatibility with existing floor heating sensors
- Programmable: 1-6 events per day
- Display: 3.5" color screen with interactive touch control
- Supply: 120-240 VAC, 50/60 Hz
- Max Load: 15A maximum (resistive load)
- Power: 1800W at 120 VAC/ 3120W at 208 VAC/ 3600W at 240 VAC
- GFCI: Class A (5mA trip level)

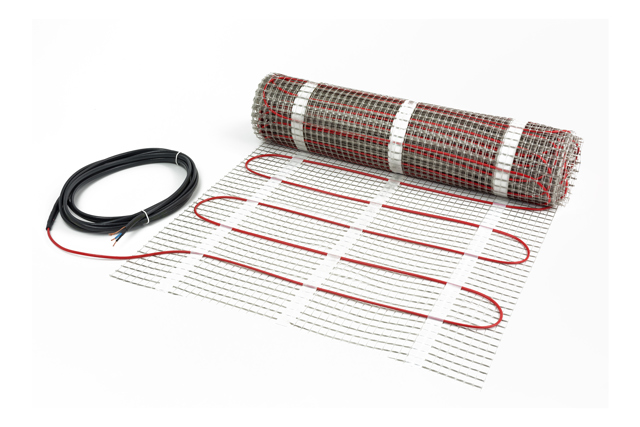

The unique adhesive system saves up to 70% on installation time and installs in minutes! Easily customize mat on the job site.
- Mat Construction: Thermoplastic polymer coated fiberglass, self-adhesive backing
- Cable Construction: Twin Conductor
- Cable Diameter: 3/16" (4.8mm)
- Rated Voltage: 120V, 208V, 240V
- Max. Rated Temperature: 212°F (100°C)
- Conductor Insulation: Teflon™ FEP
- Outer Insulation: PVC
- Safety approved for wet locations
- Even heat every time
- Genuine 20 Year Warranty

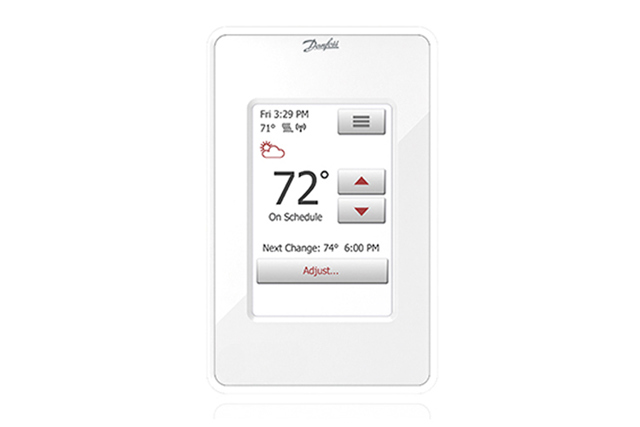

Download the LX205T WIFI App for iOS & Android & remote access & adjust your system from anywhere!
Code No. 088L5140
- WLAN (WIFI) Connectivity: 802.11 b.g.n WLAN module.
- Port 80 access
- Track power consumption
- Universal compatibility with existing floor heating sensors
- Programmable: 1-6 events per day
- Display: 3.5" color screen with interactive touch control
- Supply: 120-240 VAC, 50/60 Hz
- Max Load: 15A maximum (resistive load)
- Power: 1800W at 120 VAC/ 3120W at 208 VAC/ 3600W at 240 VAC
- GFCI: Class A (5mA trip level)

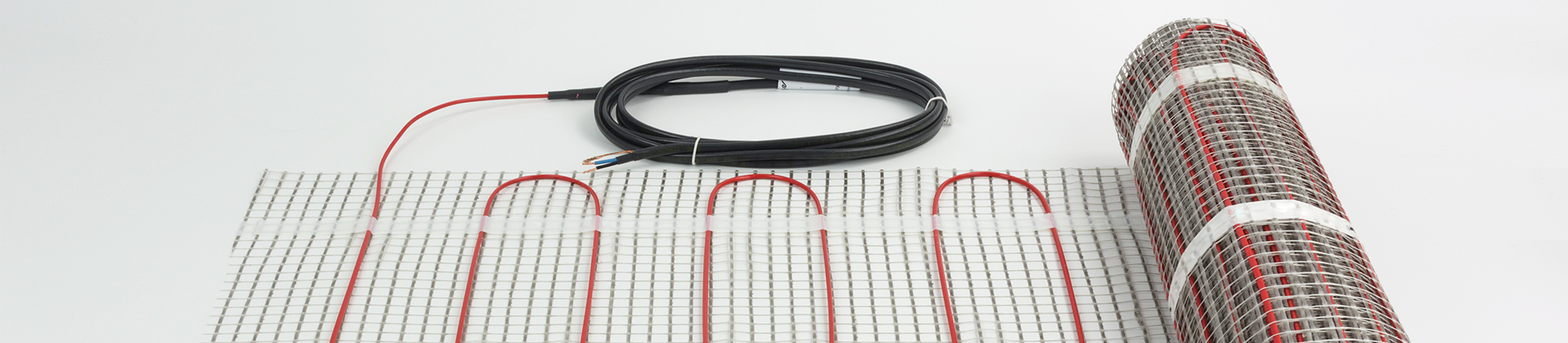

LX Floor Warming Installation
Discover tips and trick and see just how easy it is to install the Danfoss LX Mat and Cable System.
Easy to install
Whether you're using a mat or cable, we've made installation as simple as possible.
Clean air
Minimize the distribution of pollen, dust or other allergens from forced-air systems.
Easy-to-use thermostats
Experience simple programming with a touch screen control and WIFI capable options.
Affordable
Most systems are inexpensive to run and require no regular maintenance.
Genuine 20-year warranty
The LX electric floor heating warranty is unmatched in the industry.
