Packaged systems, bar manifolds and integrated motor pumps

Powerful, flexible systems

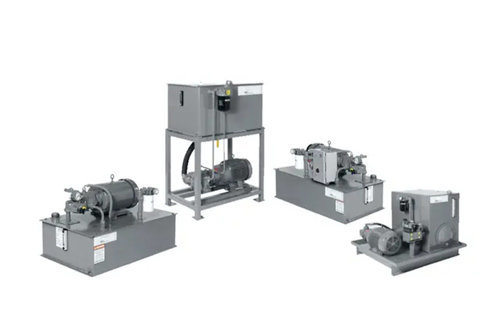

Danfoss hydraulic power units are engineered feature state-of-the-art motors, pumps, valves and electronic intelligence, with a wide range of standard and custom configuration options. Get your application up and running fast with these powerful, flexible package systems.

Bar manifold assemblies

Danfoss bar manifold assemblies are available in two different materials with many optional features, to give engineers maximum flexibility when designing applications. Find the right bar manifold for everything from automotive manufacturing to wind power.

Pressure - Up to 275 bar (4,000 psi)

Flow - Up to 91 gpm

Material - Aluminum or ductile iron

Horizontal packaged systems

Danfoss horizontal packaged systems offer a wide range of standard configuration options, to get your application up and running quickly. Need a custom solution? We’re happy to create a horizontal power unit to your precise project specifications.

Pressure - Up to 275 bar (4,000 psi)

Flow - Up to 91 gpm

Reservoir size - 10-250 gal

Variable speed drive ready

Our horizontal systems are engineered to manage variable speeds, making them highly adaptable. Our electric motors are rated for continuous duty to ensure a long-lasting, reliable system. The maintenance-friendly design ensures that when it’s time to service your power unit, gaining access to the interior is easy.



Integrated motor pumps

Danfoss integrated motor pumps are completely assembled and housed in a compact, sound-reducing enclosure. Available with a wide variety of Danfoss pumps, they’re pre-tested and ready for installation.

Horsepower - Up to 125 hp

Voltage - Up to 575 VAC

Pumps - Piston or vane

Flexible and efficient

Danfoss integrated motor pumps combine a conventional AC induction motor cooled by system hydraulic fluid with a vane or variable displacement piston-type pump. The fluid-cooled motor increases efficiency, with a motor service factor of 1.5. A close coupled motor pump reduces overall package size by 30%. Even if your application has limited space, our compact integrated motor pumps provide a great fit.

Mobile packaged systems

Danfoss mobile packaged systems are fully integrated, featuring a tank, motor, pump and valves all in one lightweight package. Engineered for peak performance even in harsh environments and demanding applications.

Pressure - Up to 207 bar(3,000 psi)

Flow - Up to 6.2 cc/rev (3 gpm)

Reservoir size - Up to 6 liters

Compact, integrated system

These power units include all the system components you need—tank, motor, pump and valve—in one small, mobile package. They’re highly configurable, using common parts, to ensure a high degree of application flexibility. These dependable, powerful units are ready to excel anywhere, whether it’s in the warehouse or out in the field.

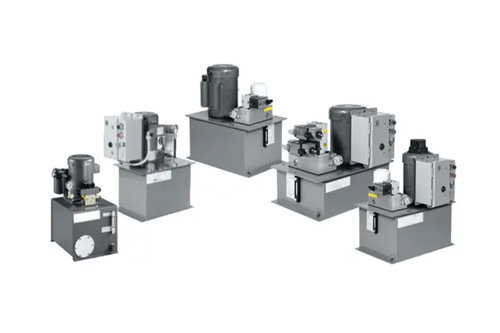

Vertical packaged systems

Danfoss vertical packaged systems feature a space-saving design and many standard configuration options, so you can find just the right fit for your application. Need a custom solution? We’re happy to create a vertical power unit to suit the specifications of your project.

Pressure - Up to 207 bar (3,000 psi)

Flow - Up to 31 gpm

Reservoir size - Up to 60 gal

Keep a low profile

Our vertical power units have a compact, low design to give you maximum power and performance in the least amount of space. Our vertical systems are engineered to manage variable speeds, making them highly adaptable. Our electric motors are rated for continuous duty to ensure a long-lasting, reliable system. Maximum pressure is up to 3,000 PSI.
