Customizable and reliable

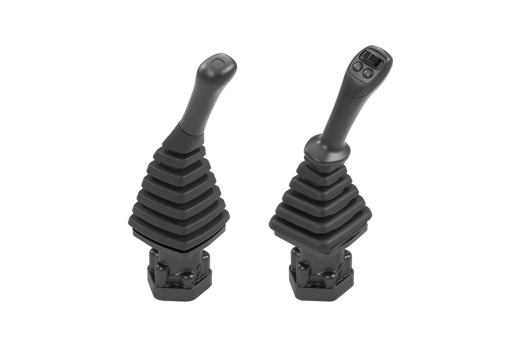

The Danfoss Hydraulic Remote Control – our state-of-the-art modular hydraulic control system offers unparalleled versatility and ergonomic operation. Tailored solutions can be configured to provide the highest comfort and usability for operators. Engineered to withstand extreme conditions, our hydraulic joysticks ensure unwavering performance, even in the harshest environments.


Switch options: more than 8 different switch options

Grip options: 4 standard grip options

Body valve: 4 standard body options

Max. inlet pressure (bar): 70

Rated flow (LPM): 20

Output pressure (bar): 0~30

Fluid type: mineral oil (max. fluid temperature -20ºC~90ºC)

ISO 4406 certified

IP 69K


Over 30 year of experience in hydraulic control development

Designed to withstand extreme and harsh conditions

Consistent performance, with close-to-flat hysteresis, even in the toughest operating conditions


Type Name Language Valid for Updated Download File type
Data sheet DHRCJ hydraulic joystick data sheet English Multiple 12 Jun, 2024 1.3 MB .pdf
User guide DHRCJ hydraulic joystick technical information English Multiple 12 Jun, 2024 2.1 MB .pdf
