Adapted to vehicles with CAN BUS communication

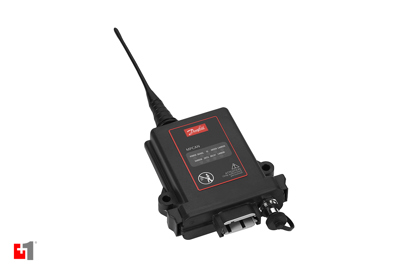

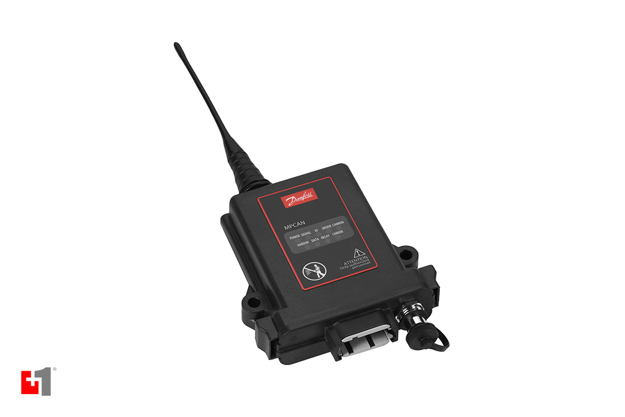

The MPCAN is our specialized receiver for machinery controlled by CAN BUS communication where constant information exchange is necessary.
Features and benefits
Worldwide compatible multi-band radio. Possibility of full-duplex communication. Easily customizable via EEPROM.
Tether connection between the transmitter and receiver as an alternative to radio connection. In the event that radio control is not permitted or there are no charged batteries, the radio remote can be used with a wired connection between the transmitter and receiver. If a wired connection is used, the transmitter is powered by the receiver.
Removable memory card. Quick and easy restoration of service with a spare unit in the event of transmitter or receiver failure. If the transmitter is completely destroyed, the replacement can copy the EEPROM from the receiver.
The external display allows for fast and simple troubleshooting, to facilitate user detection of the incident as soon as possible
Possibility of working with multiple transmitters and a single receiver. The first device to link up assumes control of the machine.
For situations requiring the use of two or more independent cranes moving simultaneously. The master transmitters can choose whether to work simultaneously with several receivers or independently with one of them.
Possibility of working with a single transmitter and multiple receivers at the same time
|Stop function||Cat. 3 – PLd|
|Frequency band||Multiband (400 – 930 MHz)|
|AC power supply||N/A|
|DC power supply||9-35 Vdc|
|Antenna||External / Internal (default)|
|ON / OFF outputs (Max.)||4|
|Analogue outputs (Max.)||N/A|
|ON / OFF inputs (Max.)||4|
|Analogue inputs (Max.)||N/A|
|Maximum output Current||2A|
|Working temperature range||-20C + 70C (-4F + 158F)|
|Dimensions (LxWxH mm)||117 x 133 x 36|
|Associated transmitters||T70 1/ T70 2/ T70 1 HALL/ T70 2 HALL/
T70 1 ATEX/ T70 2 ATEX/ IK2/ IK3 / IK4
|Type||Name||Language||Valid for||Updated||Download||File type|
|Data sheet||MPCAN Receiver Data Sheet||Spanish, Castilian||Multiple||01 Jul, 2019||799.5 KB|
|Data sheet||MPCAN Receiver Data Sheet||English||Multiple||04 Jun, 2019||796.6 KB|
|User guide||MPCAN Receiver User Manual||Spanish, Castilian||Multiple||30 May, 2019||3.8 MB|
|User guide||MPCAN Receiver User Manual||English||Multiple||29 Mar, 2019||3.9 MB|
