LX kits - for electric floor heating

New!

LX kits

Includes everything you need to heat your new or renovated floors.

The LX kits come complete with an LX Mat (chosen based off dimension & voltage requirements), an LX205T Touch Thermostat, as well as a Little Buzzer continuity alarm to ensure a smooth & stress-free installation.

The Danfoss LX electric floor warming kits are affordable, efficient & perfect to install when wanting to upgrade the value of your property.

Each kit includes:

One LX Mat

Available in 120V or 240V and a wide variety of lengths. Enjoy easy installation with our peel & stick design.

One LX205T Touch Thermostat

Sleek, intuitive, touch screen display is easy-to-use and program.

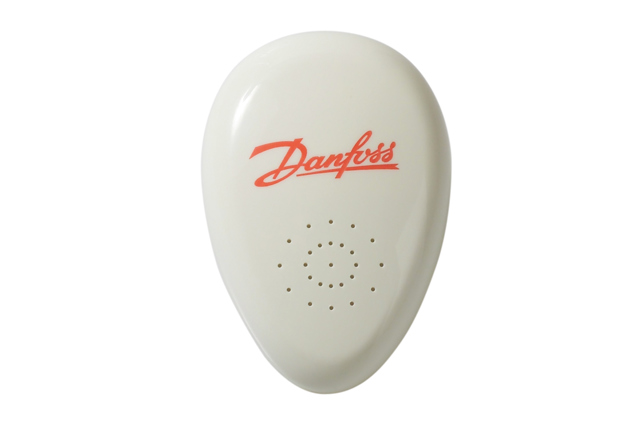

One Little Buzzer

Continuity alarm designed to monitor & sound an alarm if the heating element is cut or damaged. Ensures a smooth and stress-free installation.

Features and benefits

Savings: save installation and product selection time by simplyifying purchasing with our three-in-one kit.

Easy Installation: LX mats feature a peel & stick design, saving up to 70% of the traditional installation time.

All inclusive: In addition to the LX mat of your choice, our kits include a sleek, easy to program touch thermostat, and a continuity alarm to avoid installation errors.

Flexibility: the LX mats mesh can be cut to fit non-standard room sizes.

Versatility: For tile, stone, and laminate floor coverings.

Product range

LX Kits, 120V

Code Number:	Description:	Coverage in Sq. Ft.:	Watts:
088L3800	LX Mat, 120V, 10 Sq. Ft., 120W LX205T Thermostat Little Buzzer	10 Sq. Ft.	120W
088L3801	LX Mat, 120V, 15 Sq. Ft., 180W + LX205T Thermostat + Little Buzzer	15 Sq. Ft.	180W
088L3802	LX Mat, 120V, 20 Sq. Ft., 240W LX205T Thermostat Little Buzzer	20 Sq. Ft.	240W
088L3803	LX Mat, 120V, 25 Sq. Ft., 300W LX205T Thermostat Little Buzzer	25 Sq. Ft.	300W
088L3804	LX Mat, 120V, 30 Sq. Ft., 360W LX205T Thermostat Little Buzzer	30 Sq. Ft.	360W
088L3805	LX Mat, 120V, 35 Sq. Ft., 420W LX205T Thermostat Little Buzzer	35 Sq. Ft.	420W
088L3806	LX Mat 120V 40 Sq. Ft. 480W + LX205T Thermostat + Little Buzzer	40 Sq. Ft.	480W
088L3807	LX Mat, 120V, 50 Sq. Ft., 590W LX205T Thermostat Little Buzzer	50 Sq. Ft.	590W
088L3808	LX Mat, 120V, 60 Sq. Ft., 710W LX205T Thermostat Little Buzzer	60 Sq. Ft.	710W

LX Kits, 240V

Code Number:	Description:	Coverage in Sq. Ft.:	Watts:
088L3810	LX Mat, 240V, 35 Sq. Ft., 420W LX205T Thermostat Little Buzzer	35 Sq. Ft.	420W
088L3811	LX Mat, 240V, 40 Sq. Ft., 480W LX205T Thermostat Little Buzzer	40 Sq. Ft.	480W
088L3812	LX Mat, 240V, 50 Sq. Ft., 590W LX205T Thermostat Little Buzzer	50 Sq. Ft.	590W
088L3813	LX Mat, 240V, 60 Sq. Ft., 710W LX205T Thermostat Little Buzzer	60 Sq. Ft.	710W
088L3814	LX Mat, 240V, 70 Sq. Ft., 825W LX205T Thermostat Little Buzzer	70 Sq. Ft.	825W
088L3815	LX Mat, 240V, 80 Sq. Ft., 950W LX205T Thermostat Little Buzzer	80 Sq. Ft.	950W
088L3816	LX Mat, 240V, 90 Sq. Ft., 1065W LX205T Thermostat Little Buzzer	90 Sq. Ft.	1065W
088L3817	LX Mat, 240V, 100 Sq. Ft., 1180W LX205T Thermostat Little Buzzer	100 Sq. Ft.	1180W
088L3818	LX Mat, 240V, 110 Sq. Ft.,, 1300W LX205T Thermostat Little Buzzer	110 Sq. Ft.	1300W
088L3819	LX Mat, 240V, 120 Sq. Ft., 1415W LX205T Thermostat Little Buzzer	120 Sq. Ft.	1415W
088L3820	LX Mat, 240V, 145 Sq. Ft., 1765W LX205T Thermostat Little Buzzer	145 Sq. Ft.	1765W

Contact us

To purchase the new LX Kits please contact your local representative.

Find your local rep
