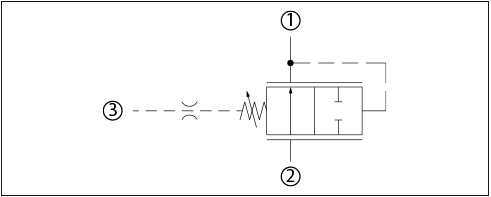

Pilot to open (adjustable)
Model code |
Cavity |
Rated pressure |
Rated flow |
3D model |
| HLEA10-OPO | SDC10-3S | 350 bar (5075 psi) | 60 lpm (16 gpm) |
STP files |

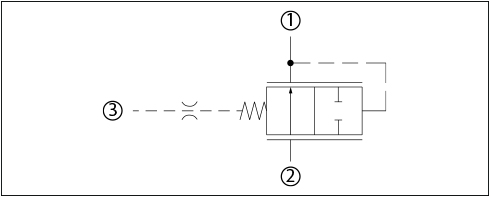

Pilot to open
Model code |
Cavity |
Rated pressure |
Rated flow |
3D model |
| CP700-4 | SDC10-3 | 210 bar (3045 psi) | 40 lpm (11 gpm) |
STP files |
| HLE10-OPO | SDC10-3S | 350 bar (5075 psi) | 60 lpm (15.8 gpm) |
STP files |
| CP701-4 | CP12-3S |
350 bar (5075 psi) |
75 lpm (20 gpm) |
STP files |
| CP702-4 | SDC16-3S | 210 bar (3045 psi) | 114 lpm (30 gpm) |
STP files |
| CP703-4 | CP20-3S | 210 bar (3045 psi) | 200 lpm (53 gpm) |
STP files |

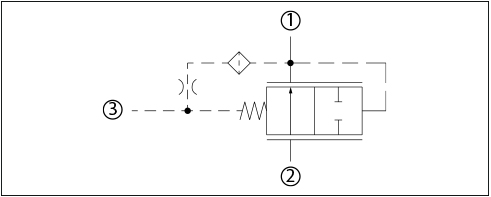

Vent to close
Model code |
Cavity |
Rated pressure |
Rated flow |
3D model |
| CP700-3 | SDC10-3 | 210 bar (3045 psi) | 40 lpm (11 gpm) |
STP files |
| HLE10-OVC | SDC10-3S | 350 bar (5075 psi) | 60 lpm (15.8 gpm) |
STP files |
| CP701-3 | CP12-3S | 350 bar (5075 psi) | 80 lpm (21 gpm) |
STP files |
| CP702-3 | SDC16-3S | 210 bar (3045 psi) | 115 lpm (30 gpm) |
STP files |
Product range
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| User guide | ICS Logic Elements Technical Information | English | Multiple | 15 Mar, 2024 | 4.7 MB |
