Normally closed poppet type valves

Where to buy
  • Overview
  • Product range
  • Documents
Where to buy

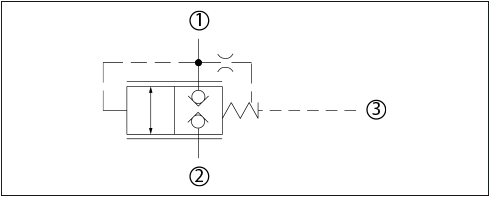

Double blocking vent to open

Model code

Cavity

Rated pressure

Rated flow

3D model
VLP 12/P2 NCS12/3 315 bar (4500 psi) 160 lpm
(42 gpm)		 STP files

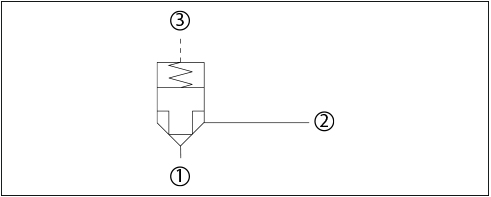

Pilot to close

Model code

Cavity

Rated pressure

Rated flow

3D model
VLP 12/A5 NCS12/3 315 bar (4500 psi) 160 lpm
(42 gpm)		 STP files





Vent to open

Model code

Cavity

Rated pressure

Rated flow

3D model
VLP 12/C2 NCS12/3 315 bar (4500 psi) 160 lpm
(42 gpm)		 STP files



Product range

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Logic Elements Technical Information English Multiple 15 Mar, 2024 4.7 MB .pdf
