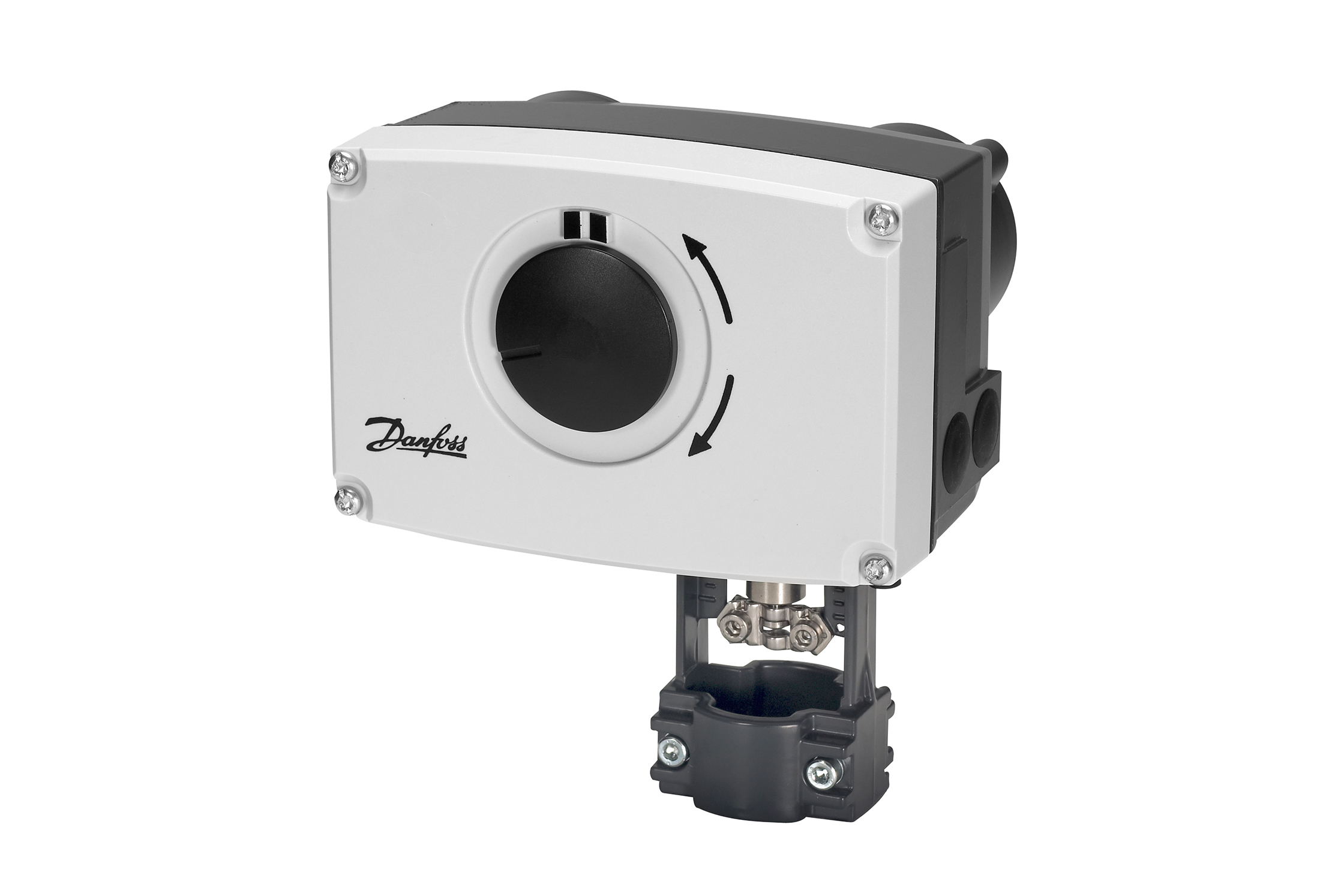

Danfoss AME 25SD and 25SU actuators for AB-QM valves

The AME 25 series of low voltage electronic actuators are proportionally controlled and internally incorporate a safety spring function. In the event of power loss, the actuator will return to either a normally open with AME 25 SU or normally closed position with the AME 25 SD depending on the style selected (spring up-SU or spring down-SD). The AME 25 series of actuators are mounted to AB-QM™ valves in sizes of 1-½” to 4” valves.

Documents

Documents
Type Name Language Valid for Updated Download File type
Operating guide AME 25 SU / AME 25 SD Danish; German; English; Spanish, Castilian; Finnish; French; Dutch, Flemish; Polish; Russian; Chinese (CN) Multiple 03 Jan, 2017 4.0 MB .pdf
Data sheet AME 25 SU / AME 25 SD Actuator Datasheet English Multiple 27 Jun, 2016 198.5 KB .pdf
Fact sheet AME 25 SU / AME 25 SD Actuator Submittal English Multiple 21 Jun, 2016 387.6 KB .pdf

Related products

  • if (isSmallPicture) { AB-QM™ Valves; } else if (isBigColumns) { AB-QM™ Valves } else { AB-QM™ Valves }
    AB-QM™ Pressure Independent Balancing Control Valves

    Simple Affordable Comfort - Pressure independent control excellence from the global market leader for over 30 years. Discover how Danfoss AB-QM™ Pressure independent balancing control valves (PIBCVs) can improve system efficiency by eliminating overflows and increasing ΔT.

    Danfoss offers a complete range of innovative solutions - ½" to 10", to meet your HVAC system's needs for optimal flow control.

  • if (isSmallPicture) {  AB-QM™ Actuators; } else if (isBigColumns) {  AB-QM™ Actuators } else {  AB-QM™ Actuators }

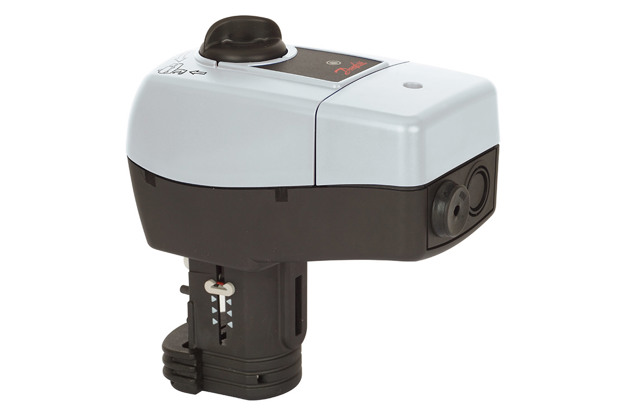

    AB-QM™ Actuators
