VACON® NXP DC/DC Converter

Energy support close to the consumption

To help improve performance by making better use of energy, energy storage is increasingly being introduced into systems to create hybrid solutions. Various storage methods are being used but, due to reductions in battery costs and increases in energy density, battery utilization is seen as being the fastest growing and more easily integrated storage medium available today. DC/DC converters can be used to connect to sources such as batteries, super capacitors, fuel cells and solar panels.

Need support? Try MyDrive® Assistant now!

Due to the wide input range of the source voltages, for example battery, the VACON® NXP DC/DC Converter application can be used to match source voltage to a common DC bus system in order to utilize the stored energy to create the right DC bus voltage required to operate the machinery running on these hybrid systems.

The VACON® NXP DC/DC Converter application can be installed in both liquid- and air-cooled VACON® NXP drive modules.

Supply voltages and power range

Air cooled:

3 x 380-500 V...180-1100 kW with battery voltages from 100Vdc* to 800Vdc**
3 x 525-690 V...200-1200 kW with battery voltages from 100Vdc* to 1100Vdc**

Liquid cooled:

3 x 380-500 V...160-1800 kW with battery voltages from 100Vdc* to 800Vdc**
3 x 525-690 V...210-1800 kW with battery voltages from 100Vdc* to 1100Vdc**

*Minimum voltage is case dependent
**Depending on system DC bus voltage. Source (battery) voltage must always be lower than the DC bus voltage.

Features and benefits

Using the same VACON® NXP hardware and control platform, DC/DC converters require very little additional investment for the same amount of system flexibility
A modular solution, DC/DC converters are easily added to the DC bus of a system providing almost instant access to additional DC sources and easy expansion
Utilizing the same VACON® NXP hardware configurations, service teams require little to no additional training
Wide range of current ratings ensures simpler integration of an extensive variety of common battery bank voltages
Aging battery stacks are easy to replace to ensure reduced downtime
Compatible with a wide variety of DC voltage sources or energy storage mediums

Order VACON® NXP literature

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type

Software

Software
Type	Software Characteristic	Name	Version	Language	Released	Status	Download	File type

Related applications

Peak shaving
Integrating renewable energy sources (solar, fuel cells) to common DC bus systems
Adding energy storage (batteries) to common DC bus systems

Drives for marine power conversion and generation

Draw upon expertise from Danfoss to optimize energy storage solutions on board vessels, and shore power supplies for quieter and cleaner harbors.

Drives for marine propulsion and thrusters

For more efficient operation and greater freedom in ship design, consider an electric-based main propulsion with engineering from Danfoss.

Drives for test stands

Be a forerunner in emerging technologies evolving through electrification. Use Danfoss VFD's in your automotive and aerospace test stands; and go to market with proven products and solutions.

Industrial DC backup ensures no more voltage dips

Maximum uptime is a key factor in complex industrial production lines, which makes them vulnerable to grid instability. Some applications also demand continuous running or controlled ramp down, which must be maintained even during a grid disturbance.

Intelligent power conversion for smart grids

Balancing supply and consumption is a complex task in a distributed smart grid, and this is where Danfoss supports you with certified power conversion solutions, saving you time, cost and effort in testing and certification.

Case studies

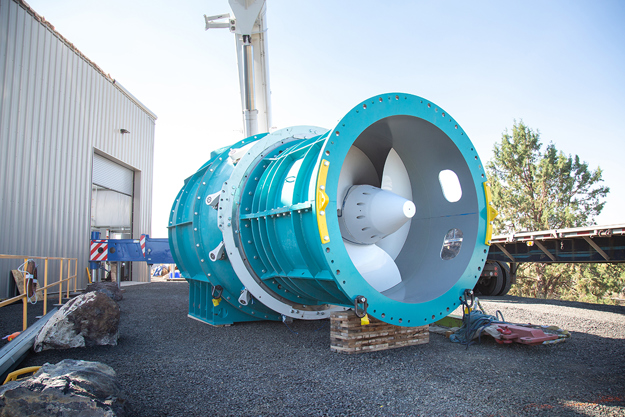

Natel Energy decarbonizes electricity production through reliable hydropower systems with the help of VACON® AC Drives
