Control the refrigerant flow to the evaporator

The TU stainless steel thermostatic expansion valves allow you to control the refrigerant flow to the evaporator. The valve senses the refrigerant level and, when needed, injects liquid to keep the air conditioning system working at an optimum level.

View the 3D model

The TU valves are compact in design, light weight and have steel/copper bi-metal connections for fast soldering. The TU valves offer fixed or exchangeable orifices and adjustable or non-adjustable superheat settings, as well as internally or externally equalized designs. The TU valves are available in angle- or straight way designs and with many combinations of solder connections.

The TU valves ensure consistent function throughout the service life. The valves come with high dirt-retention filter and the TUA(E) versions with exchangeable filter, offer easy maintenance (or e.g.: cleaning of filter). For safe and reliable operation, the TU valves can be supplied with self-cleaning bleed or with a MOP charge.

Features and benefits

Suited for all common refrigerants and applications

Stable regulation

Compact design, low weight

Stainless steel, hermetically tight solder version with high corrosion and vibration resistance

Easy brazing with no need for wet wrapping

Adjustable superheat

Special non-adjustable superheat valves available

Filter with high dirt-retention capacity

Available with maximum operating pressure (MOP)

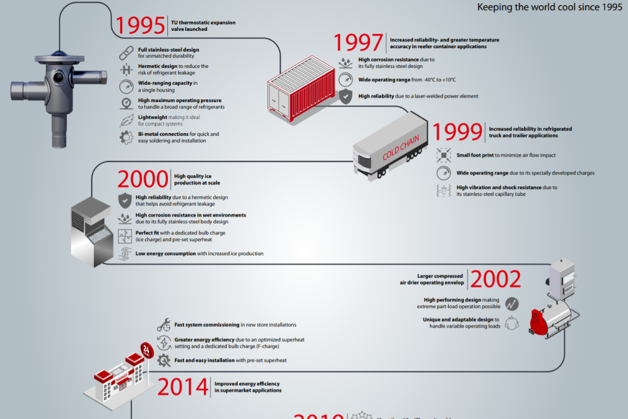

Passion for expansion

TU Passion for Expansion

Discover how TU is keeping the world cool since 1995.

Documents

Documents
Type Name Language Valid for Updated Download File type
Brochure Overview Brochure Thermostatic Expansion Valves English Multiple 18 Sep, 2023 7.2 MB .pdf
Data sheet Thermostatic expansion valve, type TU and TC English Multiple 08 Feb, 2023 7.1 MB .pdf
Installation guide Thermostatic expansion valves Type TU and TC Arabic (AE); Bulgarian; Czech; Danish; German; Greek (modern); English; Spanish, Castilian; Estonian; Persian; Finnish; French; Irish; Hebrew (modern); Hindi; Croatian; Hungarian; Indonesian; Icelandic; Italian; Japanese; Kazakh; Korean; Lithuanian; Latvian; Macedonian; Norwegian Bokmål; Dutch, Flemish; Polish; Portuguese; Romanian, Moldavian, Moldovan; Russian; Slovak; Slovenian; Serbian (RS); Swedish; Tamil; Thai; Turkish; Ukrainian; Vietnamese; Chinese (CN) Multiple 15 Jun, 2018 457.7 KB .pdf
