Wide capacity range

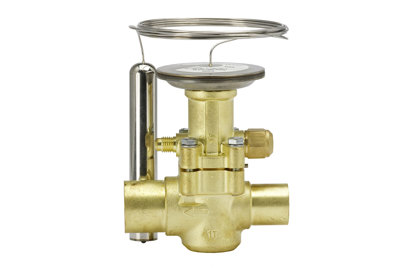

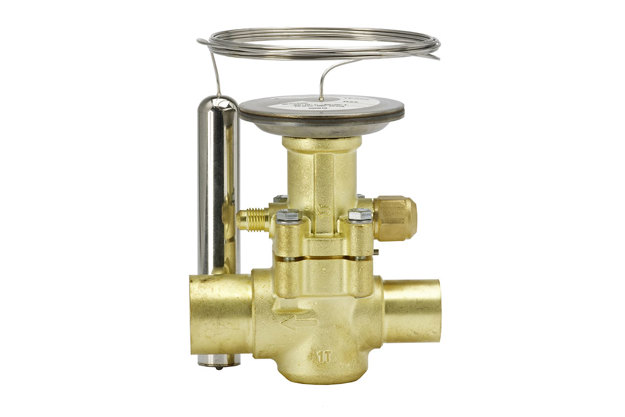

The TE 5 – TE 55 thermostatic expansion valves parts-program has proven its value since it was first introduced in 1964. It is still a popular choice air conditioning systems around the world.
The TE 5 - TE 55 series controls the amount of refrigerant injected into the evaporator.
The replaceable power element is produced with the well-known Danfoss laser welding technology for extended life time.
The TE 5 - TE 55 thermostatic expansion valve family is universal and adaptable, and comes with:
- A wide capacity range for any kind of air conditioning system
- Suitable for new and old standard refrigerants (except R 410A and HC-refrigerants)
- With and without maximum operating pressure (MOP) charge characteristics
Features and benefits
Interchangeable orifice assembly
Stainless steel power element, capillary tube and bulb
Wide capacity range
Easy to select orifice to minimize capacity gaps and overlaps
Maximum Operating Pressure (MOP) functionality is available
Complete parts program (build to order) with many possible combinations of connections
Product overview
Below, please find our overview brochure for thermostatic expansion valves.
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| Brochure | Overview Brochure Thermostatic Expansion Valves | English | Multiple | 18 Sep, 2023 | 7.2 MB | |
| Data sheet | Thermostatic expansion valves Type TE 5 – TE 55 | English | Multiple | 20 Jul, 2022 | 8.1 MB | |
| Installation guide | Thermostatic expansion valves Type TE 5, TE 12, TE 20 and TE 55 | English | Multiple | 06 Jul, 2020 | 851.3 KB |
Software
The truth is Cool(selector®2)
Coolselector®2 features unbiased calculations for the selection of refrigeration and air conditioning components based on the user’s requirements or based on standard operating conditions.
Related products
-
if (isSmallPicture) {

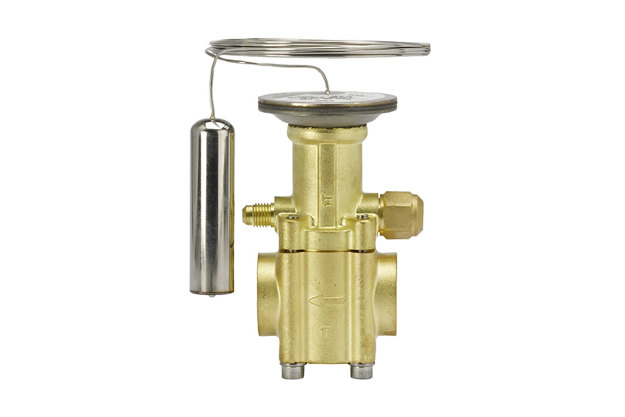

TE 12 is supplied as a part program with a wide range of valve bodies. The exchangeable power element is produced with the well known Danfoss laser welding technology for extended lifetime capability.
-
if (isSmallPicture) {
Interchangeable orifice assembly. Stainless steel power element, capillary tube and bulb. Wide capacity range. Versions with MOP function is available. Superior charge performance.
-
if (isSmallPicture) {
TE 5 thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants.
