Versatile, reliable and consistently awesome

Built to last, this robust drive operates effectively and reliably even with the most demanding applications and in the most challenging environments.

VLT® AutomationDrive takes full advantage of all that the new digital age has to offer to ensure it completely fulfills the requirements of your applications and optimizes your processes throughout the entire lifecycle.

The VLT® AutomationDrive is designed for variable speed control of all asynchronous motors and permanent magnet motors. It comes in a standard version (FC 301) and an advanced high dynamic version (FC 302) with additional functionalities. It helps save energy, increase flexibility, reduce costs related to spare parts and servicing, and optimize process control on any industrial machine or production line.

The VLT AutomationDrive is built on a flexible, modular design concept to provide versatile control. Its robust construction ensures maximum uptime. It comes equipped with a wide range of standard industry features which can be expanded with ‘plug-and-play’ options. The user-friendly graphical control panel ensures the drive is easy to set up and operate saving commissioning and operating costs.

Enclosures are available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.

The VLT AutomationDrive can also be used with applications that need to perform high-precision positioning and synchronization operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.

All drives are fully tested already at the factory. They require very little maintenance and provide a fast return on investment.

Supply voltages and power range

  • 3 x 200-240 V...0.25-37 kW
  • 3 x 380-500 V...0.37 kW – 1.1 MW
  • 3 x 525-600 V...0.75-75 kW
  • 3 x 525-690 V...1.1 kW – 1.4 MW

Low harmonic drive

  • 3 x 380-480 V...132-450 kW

12-pulse drive

  • 3 x 380-500 V...250 kW – 1 MW
  • 3 x 525-690 V...250 kW – 1.4 MW

Features and benefits

There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating

The need for PLC capacity is reduced thanks to Smart Logic Control

Low lifetime costs are ensured as the drive is highly resistant to wear and tear

The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F

Commissioning and upgrades are easy due to plug-in technology

High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range

Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive

Integrated Motion Controller

High-precision positioning and synchronization with reduced costs and system complexity

To optimize performance, many applications across all industry sectors have a need for precise positioning and synchronization. These applications include:

  • rotary tables
  • packaging machines
  • labelling machines
  • conveyors
  • extruders
  • palletizers

To date, positioning and synchronization operations have been performed using servo drives. However, servo equipment is expensive; it is difficult to commission and requires additional cabling. And, as servo drives do not work with open loop control systems, there is a high failure rate. Many applications do not require the high dynamic performance offered by a servo drive. An alternative was to use an AC drive. But, until now, an additional internal or external module or an encoder on the motor was required.

Danfoss Drives has developed an innovative alternative to servo control. The Integrated Motion Controller (IMC) is functionality that enables an AC drive to perform high-precision positioning and synchronization operations without the need for additional modules or hardware. IMC is now configurable in the software of the VLT® AutomationDrive FC 302.

IMC has many advantages. It works with all conventional motor technologies, with closed loop or open loop control, and offers sensorless homing with torque detection. Drives are adapted to the applications through simple parameterization. This means that knowledge of servo technology or programming languages is not required. As no encoder or additional cables are needed, engineering, installation and commissioning time and costs can be reduced.

Read iPaper and download

Documents

Type Name Language Valid for Updated Download File type
Operating guide - AQ Add-On Instr., VLT EtherNet/IP MCA 121 English Multiple 01 Feb, 2017 1.1 MB PDF
Brochure - AD An easy guide to functional safety English Multiple 22 Oct, 2018 1.0 MB PDF
Brochure - AD Application paper - FC 302, marine winch English Multiple 06 May, 2016 515.5 KB PDF
Case story - AE Arla_Lactose_Lowres English Multiple 12 Nov, 2018 859.0 KB PDF
Installation guide - AN Backplate B4, C3, and C4 English Multiple 07 May, 2010 2.1 MB PDF
Case story - AE Bogense Plast English Multiple 10 Jan, 2019 285.9 KB PDF
Brochure - AD Chemical industry solutions English Multiple 01 Mar, 2020 1.0 MB PDF
Brochure - AD Chemical industry solutions English United States 01 Mar, 2020 992.8 KB PDF
Fact sheet - AM Condition-based maintenance English Multiple 29 Nov, 2017 693.1 KB PDF
Installation guide - AN Control Card VLT® FC Series English Multiple 01 Sep, 2018 827.7 KB PDF
Installation guide - AN Control Card VLT® FC Series English Multiple 01 Mar, 2017 549.4 KB PDF
Fact sheet - AM Control your PM motors with a VLT drive English Multiple 11 May, 2016 1.3 MB PDF
Case story - AE CT Offshore ROV for cabling English Multiple 28 May, 2019 498.1 KB PDF
User Guide Danfoss DriveManager Plug-in for TwinCAT English Multiple 01 Jun, 2020 7.0 MB PDF
Case story - AE Danish Crown English Multiple 16 Nov, 2018 789.3 KB PDF
Application guide - AB FC 300 ATEX ETR Thermal Monitoring English Multiple 04 Apr, 2011 358.1 KB PDF
Fact sheet - AM FC 302 with motion controller English Multiple 26 Sep, 2017 443.6 KB PDF
Installation guide - AN FC Series Spare Brake IGBT English Multiple 01 Jun, 2013 171.1 KB PDF
Application guide - AB Fuses and Circuit Breakers English Multiple 17 Nov, 2010 295.6 KB PDF
Case story - AE Gostol Gopan English Multiple 27 May, 2016 253.1 KB PDF
Installation guide - AN Ground Bar Kit for E1h/E2h Drives English Multiple 01 Oct, 2017 284.4 KB PDF
Case story - AE HEINEKEN ZAGORKA Brewery English Multiple 27 May, 2016 430.8 KB PDF
Installation guide - AN Internal Mains Fuse Replacement English Multiple 01 Feb, 2018 780.5 KB PDF
Installation guide - AN Internal Mains Fuse Replacement English Multiple 01 Oct, 2018 782.9 KB PDF
Case story - AE Island Performer subsea vessel English Multiple 27 May, 2016 282.7 KB PDF
Case story - AE Kolomeda Mine, SA English Multiple 27 May, 2016 301.4 KB PDF
Operating guide - AQ Low Harmonic Drive FC 300 English Multiple 16 Jul, 2009 13.8 MB PDF
Operating guide - AQ Low Harmonic Drive FC 300 English United States 19 Oct, 2009 7.1 MB PDF
Operating guide - AQ Low Harmonic Drive FC 300 English Multiple 13 Oct, 2011 9.9 MB PDF
Operating guide - AQ Low Harmonic Drive FC 300 English United States 24 Jan, 2012 10.0 MB PDF
Case story - AE Maersk Supply Service SSE English Multiple 09 Oct, 2018 2.5 MB PDF
Case story - AE MEC_BioGas English Multiple 08 Feb, 2019 468.6 KB PDF
Case story - AE Metalika Integrated Motion Controller English Multiple 01 Apr, 2020 515.8 KB PDF
Case story - AE More efficiency at Luxeapers English Multiple 03 Apr, 2019 395.9 KB PDF
Installation guide - AN Panel Through Kit English Multiple 06 Mar, 2009 4.7 MB PDF
Fact sheet - AM Panel Through Mount accessory English Multiple 11 May, 2016 130.4 KB PDF
Fact sheet - AM Power Limit Function English Multiple 22 Apr, 2019 178.6 KB PDF
Installation guide - AN Replacement Cables English Multiple 08 Aug, 2014 112.8 KB PDF
Operating guide - AQ Safe Torque Off English Multiple 11 May, 2016 468.5 KB PDF
Operating guide - AQ Safe Torque Off English Multiple 01 Jan, 2018 1.1 MB PDF
Operating guide - AQ Safe Torque Off English Multiple 01 Nov, 2018 1.2 MB PDF
Operating guide - AQ Safety Option MCB 150/151 English Multiple 11 Feb, 2014 2.8 MB PDF
Installation guide - AN Safety Option MCB 150/151 English Multiple 21 Sep, 2018 3.0 MB PDF
Installation guide - AN Safety Option MCB 150/151 English Multiple 07 Jan, 2019 3.0 MB PDF
Case story - AE Sagrex Lemay quarry English Multiple 09 Oct, 2018 830.4 KB PDF
Application guide - AB Siemens S7 PLC and FC 300 Profibus English Multiple 20 May, 2005 852.8 KB PDF
Installation guide - AN Spare Part Kits for C1/C3 English Multiple 12 Oct, 2010 238.5 KB PDF
Brochure - AD SynchStarter solution - A synchronised English Multiple 10 May, 2016 1.3 MB PDF
Operating guide - AQ VLT AutomationDrive FC302 90-710kW OperG English Multiple 01 Jan, 2019 22.2 MB PDF
Operating guide - AQ VLT FC 302 Low Harmonic Drive 132-630 kW English Multiple 12 Aug, 2014 27.5 MB PDF
Operating guide - AQ VLT FC 302 Low Harmonic Drive 132-630 kW English United States 07 Feb, 2014 27.3 MB PDF
Operating guide - AQ VLT FC 302 Low Harmonic Drive 132-630 kW English Multiple 16 Apr, 2015 22.3 MB PDF
Operating guide - AQ VLT FC 302 Low Harmonic Drive 132-630 kW English United States 19 Aug, 2015 25.9 MB PDF
Operating guide - AQ VLT FC Series - Safe Torque Off English Multiple 15 Nov, 2013 1.0 MB PDF
Operating guide - AQ VLT FC Series - Safe Torque Off English Multiple 21 Aug, 2014 1.0 MB PDF
Operating guide - AQ VLT FC Series - Safe Torque Off English United States 09 Oct, 2014 1.0 MB PDF
Operating guide - AQ VLT FC Series - Safe Torque Off English Multiple 08 Jan, 2016 441.9 KB PDF
Application guide - AB VLT Integrated Motion Controller Appl G. English Multiple 01 Dec, 2019 31.3 MB PDF
Application guide - AB VLT Integrated Motion Controller Appl G. English Multiple 01 Aug, 2019 31.3 MB PDF
Fact sheet - AM VLT mounting options – NEMA 4X English Multiple 01 Dec, 2019 0.0 B PDF
Fact sheet - AM VLT mounting options – NEMA 4X English United States 01 Dec, 2019 346.4 KB PDF
Operating guide - AQ VLT Programmable I/O MCB 115 English Multiple 22 May, 2015 2.0 MB PDF
Operating guide - AQ VLT Programmable I/O MCB 115 English Multiple 21 Oct, 2015 1.8 MB PDF
Operating guide - AQ VLT Safety Option MCB 140/141 English Multiple 01 Dec, 2017 311.7 KB PDF
Installation guide - AN VLT® 24 V DC Supply Option MCB 107 English Multiple 01 Nov, 2018 181.1 KB PDF
Installation guide - AN VLT® 24 V DC Supply Option MCB 107 English Multiple 11 Jun, 2004 1.3 MB PDF
Installation guide - AN VLT® 24 V DC Supply Option MCB 107 English Multiple 01 Nov, 2017 193.3 KB PDF
Operating guide - AQ VLT® 5000 Converter MCA 114 English Multiple 09 Oct, 2008 799.3 KB PDF
Operating guide - AQ VLT® 5000 Converter MCA 114 English Multiple 16 Oct, 2013 3.1 MB PDF
Fact sheet - AM VLT® Advanced Harmonic Filter English Multiple 06 Feb, 2019 196.3 KB PDF
Design guide - AJ VLT® Advanced Harmonic Filter AHF English Multiple 12 Jan, 2011 1.3 MB PDF
Design guide - AJ VLT® Advanced Harmonic Filter AHF005/010 English Multiple 01 Oct, 2016 9.2 MB PDF
Design guide - AJ VLT® Advanced Harmonic Filter AHF005/010 English Multiple 01 May, 2019 6.2 MB PDF
Design guide - AJ VLT® AHF 005/010 Design Guide English Multiple 16 Apr, 2010 966.4 KB PDF
Operating guide - AQ VLT® AHF 005/010 Operating Instruction English Multiple 21 Dec, 2009 901.0 KB PDF
Programming guide - AU VLT® Automation Drive FC 300 SW 7.62/8.1 English Multiple 01 Jan, 2018 5.4 MB PDF
Programming guide - AU VLT® Automation Drive FC 300 SW 7.62/8.1 English United States 01 Jan, 2018 5.2 MB PDF
Programming guide - AU VLT® Automation Drive FC 301/302 English Multiple 16 Oct, 2014 5.4 MB PDF
Programming guide - AU VLT® Automation Drive FC 301/302 English Multiple 12 May, 2015 5.0 MB PDF
Programming guide - AU VLT® Automation Drive FC 301/302 English Multiple 20 Jan, 2016 5.3 MB PDF
Programming guide - AU VLT® Automation Drive FC 301/302 SW 7.4x English Multiple 01 Aug, 2016 5.5 MB PDF
Programming guide - AU VLT® Automation Drive FC 301/302 SW 7.6x English Multiple 01 Aug, 2017 6.1 MB PDF
Operating guide - AQ VLT® Automation Drive High Power SW4.5x English United States 19 Mar, 2007 6.8 MB PDF
Operating guide - AQ VLT® Automation Drive High Power SW4.5x English Multiple 19 Mar, 2007 11.6 MB PDF
Operating guide - AQ VLT® Automation Drive High Power SW4.9x English Multiple 25 Jun, 2008 15.4 MB PDF
Operating guide - AQ VLT® Automation Drive High Power SW4.9x English United States 25 Jun, 2008 10.9 MB PDF
Brochure - AD VLT® Automation Drive Selection Guide English Multiple 27 Nov, 2017 2.9 MB PDF
Fact sheet - AM VLT® AutomationDrive English Multiple 02 Oct, 2009 233.2 KB PDF
Operating guide - AQ VLT® AutomationDrive 12-pulse FC 302 English Multiple 14 Oct, 2011 3.9 MB PDF
Operating guide - AQ VLT® AutomationDrive 12-pulse FC 302 English United States 14 Sep, 2012 4.5 MB PDF
Operating guide - AQ VLT® AutomationDrive 302, 12 Pulse English Multiple 27 May, 2014 4.5 MB PDF
Operating guide - AQ VLT® AutomationDrive 90–315 kW D-Frame English Multiple 01 Sep, 2018 12.2 MB PDF
Operating guide - AQ VLT® AutomationDrive 90–315 kW D-Frame English Multiple 19 Jun, 2015 4.3 MB PDF
Fact sheet - AM VLT® AutomationDrive derating English Multiple 01 Feb, 2020 369.6 KB PDF
Design guide - AJ VLT® AutomationDrive Design Guide English Multiple 14 Feb, 2005 7.4 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide English United States 14 Feb, 2005 5.2 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW2.0x English Multiple 11 Jan, 2005 7.1 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW2.0x English United States 15 Apr, 2005 7.1 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW2.5x English Multiple 30 May, 2005 7.1 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW2.5x English United States 12 Jul, 2005 7.1 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW3.5x English United States 23 Feb, 2006 7.4 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW3.5x English Multiple 23 Nov, 2005 7.3 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW3.xx English Multiple 24 Aug, 2005 7.4 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW4.0x English Multiple 16 May, 2006 9.1 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW4.0x English Multiple 20 Dec, 2006 10.5 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW4.0x English United States 20 Dec, 2006 7.0 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW4.5x English Multiple 03 May, 2007 9.2 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW4.5x English United States 15 Jul, 2008 8.0 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW4.8x English Multiple 22 Aug, 2007 19.5 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW4.9x English Multiple 11 Jul, 2008 28.5 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW5.5x English United States 12 Aug, 2012 11.1 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW5.5x English Multiple 11 Nov, 2008 30.8 MB PDF
Design guide - AJ VLT® AutomationDrive Design Guide SW5.5x English United States 03 Sep, 2009 28.5 MB PDF
Operating guide - AQ VLT® AutomationDrive D-Frame Oper. Instr English United States 29 Oct, 2015 4.3 MB PDF
Operating guide - AQ VLT® AutomationDrive D-Frame Oper. Instr English Multiple 04 Jan, 2012 3.5 MB PDF
Operating guide - AQ VLT® AutomationDrive D-Frame Oper. Instr English Multiple 04 Jan, 2012 4.7 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 English Multiple 17 Sep, 2012 2.5 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 English Multiple 06 Sep, 2013 2.4 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 English Multiple 07 Nov, 2013 2.5 MB PDF
Design guide - AJ VLT® AutomationDrive FC 300 English Multiple 20 Apr, 2011 10.0 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 0.25-75 kW English United States 10 Feb, 2014 2.5 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 0.25-75 kW English Multiple 04 Jul, 2014 2.4 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 0.25-75 kW English United States 11 Sep, 2014 2.6 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 0.25-75 kW English Multiple 09 Jul, 2015 1.9 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 0.25-75 kW English United States 23 Nov, 2015 2.1 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 0.25-75 kW English Multiple 24 Aug, 2016 3.9 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 0.25-75 kW English Multiple 02 May, 2017 7.1 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 0.25-75 kW English Multiple 07 May, 2018 4.5 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 0.25-75 kW English Multiple 15 Feb, 2012 2.5 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 0.25-75 kW English United States 07 May, 2018 4.5 MB PDF
Design guide - AJ VLT® AutomationDrive FC 300 315–1200 kW English United States 01 Nov, 2017 7.3 MB PDF
Design guide - AJ VLT® AutomationDrive FC 300 90-1200 kW English United States 17 Feb, 2014 13.6 MB PDF
Design guide - AJ VLT® AutomationDrive FC 300 90-1200 kW English Multiple 19 Aug, 2013 12.6 MB PDF
Design guide - AJ VLT® AutomationDrive FC 300 Design Guide English Multiple 21 Dec, 2012 9.1 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 Operating In English Multiple 10 Jan, 2011 2.1 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 SW6.0x English United States 17 Dec, 2009 2.5 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 300 SW6.0x English Multiple 01 Dec, 2009 3.1 MB PDF
Programming guide - AU VLT® AutomationDrive FC 300 SW8.23/48.33 English Multiple 01 Oct, 2018 5.6 MB PDF
Programming guide - AU VLT® AutomationDrive FC 300 SW8.33/48.40 English Multiple 01 Apr, 2019 6.0 MB PDF
Programming guide - AU VLT® AutomationDrive FC 300 SW8.43/48.40 English Multiple 01 Oct, 2019 6.0 MB PDF
Brochure - AD VLT® AutomationDrive FC 301/302 English Multiple 12 Jul, 2019 5.2 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 301/302 English United States 02 Jul, 2012 2.7 MB PDF
Programming guide - AU VLT® AutomationDrive FC 301/302 English Multiple 04 Jul, 2012 5.0 MB PDF
Programming guide - AU VLT® AutomationDrive FC 301/302 English United States 25 Oct, 2011 5.2 MB PDF
Programming guide - AU VLT® AutomationDrive FC 301/302 English Multiple 26 Apr, 2007 3.7 MB PDF
Programming guide - AU VLT® AutomationDrive FC 301/302 English United States 26 Apr, 2007 3.7 MB PDF
Case story - AE VLT® AutomationDrive FC 302 English Multiple 31 Jan, 2017 369.7 KB PDF
Operating guide - AQ VLT® AutomationDrive FC 302 0.25-75 kW English Multiple 14 Jun, 2011 2.6 MB PDF
Design guide - AJ VLT® AutomationDrive FC 302 315–1200 kW English Multiple 01 Nov, 2017 7.3 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 302 90-1200 kW English Multiple 01 Dec, 2008 17.9 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 302 90-1200 kW English United States 05 May, 2009 16.8 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 302 90-1200 kW English Multiple 16 Dec, 2013 5.7 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 302 90-315 kW English United States 22 Nov, 2012 4.8 MB PDF
Design guide - AJ VLT® AutomationDrive FC 302 90-710kW English Multiple 01 Sep, 2019 18.7 MB PDF
Installation guide - AN VLT® AutomationDrive FC 302 w Connectors English Multiple 24 Jun, 2014 494.1 KB PDF
Installation guide - AN VLT® AutomationDrive FC 302 w Connectors English Multiple 06 Aug, 2014 397.2 KB PDF
Installation guide - AN VLT® AutomationDrive FC 302 w Connectors English Multiple 10 Nov, 2014 492.9 KB PDF
Installation guide - AN VLT® AutomationDrive FC 302 w Connectors English Multiple 25 Nov, 2015 485.9 KB PDF
Operating guide - AQ VLT® AutomationDrive FC 302, 12 Pulse English Multiple 04 Apr, 2016 5.3 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 302, 315-710 kW, English Multiple 01 Jan, 2017 13.8 MB PDF
Operating guide - AQ VLT® AutomationDrive FC 302, 315-710 kW, English Multiple 01 Apr, 2018 0.0 B PDF
Operating guide - AQ VLT® AutomationDrive FC 302, 315-710 kW, English United States 01 Apr, 2018 13.9 MB PDF
Design guide - AJ VLT® AutomationDrive FC 302, 90-710 kW English Multiple 01 Jan, 2018 13.6 MB PDF
Design guide - AJ VLT® AutomationDrive FC 302, 90-710 kW English United States 01 Jan, 2018 14.6 MB PDF
Design guide - AJ VLT® AutomationDrive FC301/302 0.25-75kW English Multiple 18 Dec, 2013 6.8 MB PDF
Design guide - AJ VLT® AutomationDrive FC301/302 0.25-75kW English Multiple 01 Oct, 2019 35.9 MB PDF
Operating guide - AQ VLT® AutomationDrive FC302 12-Pulse High English Multiple 22 Nov, 2010 3.2 MB PDF
Design guide - AJ VLT® AutomationDrive FC302, 315-710 kW,E English Multiple 01 May, 2017 11.4 MB PDF
Operating guide - AQ VLT® AutomationDrive Interbus Instr. English Multiple 11 Dec, 2007 967.5 KB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW2.0x English United States 14 Apr, 2005 4.8 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW2.5x English Multiple 25 Feb, 2005 2.2 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW2.5x English United States 28 Jun, 2005 2.2 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW3.5x English Multiple 14 Nov, 2005 1.9 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW3.5x English United States 20 Feb, 2006 1.6 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW3.xx English Multiple 24 Aug, 2005 4.6 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW4.0x English Multiple 19 Jun, 2006 4.0 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW4.0x English Multiple 07 Feb, 2006 2.2 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW4.0x English United States 29 Sep, 2006 3.5 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW4.5x English Multiple 18 Apr, 2007 3.1 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW4.5x English United States 20 May, 2007 3.1 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW4.8x English Multiple 09 Jul, 2009 4.5 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW4.9x English Multiple 05 Oct, 2007 4.4 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW4.9x English United States 15 Jul, 2008 4.5 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW5.0x English Multiple 15 Sep, 2008 4.7 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW5.0x English Multiple 15 Sep, 2008 4.6 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW5.5x English Multiple 31 Oct, 2008 4.9 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW5.8x English Multiple 12 Jun, 2009 5.1 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW5.8x English Multiple 08 Sep, 2009 5.0 MB PDF
Operating guide - AQ VLT® AutomationDrive Oper. Instr. SW5.9x English Multiple 10 Jul, 2009 5.1 MB PDF
Operating guide - AQ VLT® AutomationDrive Operating Instr. English United States 15 Feb, 2005 1.5 MB PDF
Operating guide - AQ VLT® AutomationDrive Operating Instr. English Multiple 15 Feb, 2005 2.5 MB PDF
Operating guide - AQ VLT® AutomationDrive Operating Instr. English Multiple 21 Mar, 2011 2.6 MB PDF
Operating guide - AQ VLT® AutomationDrive Operating Instr. English United States 21 Mar, 2011 2.8 MB PDF
Operating guide - AQ VLT® AutomationDrive Profibus English Multiple 15 Feb, 2005 1.6 MB PDF
Operating guide - AQ VLT® AutomationDrive Profibus DP V1 English Multiple 07 Mar, 2005 1.5 MB PDF
Programming guide - AU VLT® AutomationDrive Progr. Guide SW6.1x English Multiple 03 Feb, 2010 4.7 MB PDF
Programming guide - AU VLT® AutomationDrive Progr. Guide SW6.1x English United States 19 Apr, 2010 4.6 MB PDF
Programming guide - AU VLT® AutomationDrive Progr. Guide SW6.1x English Multiple 16 Sep, 2010 5.0 MB PDF
Programming guide - AU VLT® AutomationDrive Progr. Guide SW6.1x English United States 16 Sep, 2010 4.8 MB PDF
Programming guide - AU VLT® AutomationDrive Progr. Guide SW6.1x English Multiple 26 Oct, 2010 4.9 MB PDF
Programming guide - AU VLT® AutomationDrive Progr. Guide SW6.1x English Multiple 19 Jan, 2011 5.0 MB PDF
Design guide - AJ VLT® AutomationDriveFC 301/302 0.25-75kW English United States 18 Dec, 2013 7.3 MB PDF
Design guide - AJ VLT® Brake Resistor Design Guide English Multiple 21 Jul, 2008 1.9 MB PDF
Design guide - AJ VLT® Brake Resistor MCE 101 English Multiple 08 May, 2014 8.5 MB PDF
Operating guide - AQ VLT® CAN Open MCA105 English Multiple 11 Nov, 2008 1.1 MB PDF
Operating guide - AQ VLT® CAN Open MCA105 Operating Instr. English Multiple 17 Aug, 2007 1.5 MB PDF
Operating guide - AQ VLT® CAN Open MCA105 Operating Instr. English Multiple 05 Oct, 2007 1.1 MB PDF
Operating guide - AQ VLT® CANopen MCA 105 English Multiple 22 May, 2015 3.4 MB PDF
Programming guide - AU VLT® CANopen MCA 105 English Multiple 15 Jun, 2015 1.5 MB PDF
Operating guide - AQ VLT® Center Winder MCO 352 English Multiple 06 Oct, 2008 1.1 MB PDF
Brochure - AD VLT® Chemical English Multiple 15 Oct, 2008 0.0 B PDF
Fact sheet - AM VLT® Common Mode Filter English Multiple 30 Mar, 2017 111.0 KB PDF
Installation guide - AN VLT® C-option Adapter MCF 107 English Multiple 01 Mar, 2020 870.6 KB PDF
Application guide - AB VLT® DeviceNet & Control logix 5550 English Multiple 20 May, 2005 3.5 MB PDF
Operating guide - AQ VLT® DeviceNet MCA 104 English Multiple 27 Mar, 2015 3.5 MB PDF
Operating guide - AQ VLT® DeviceNet MCA 104 English Multiple 07 Dec, 2006 1.1 MB PDF
Fact sheet - AM VLT® DeviceNet MCA 104 English Multiple 11 May, 2016 267.2 KB PDF
Programming guide - AU VLT® DeviceNet MCA 104 English Multiple 14 Dec, 2015 931.0 KB PDF
Fact sheet - AM VLT® drive with enclosure size E English Multiple 09 Dec, 2016 121.3 KB PDF
Fact sheet - AM VLT® drive with enclosure size E English United States 05 Apr, 2017 384.9 KB PDF
Application guide - AB VLT® Drives Motor overload protection English Multiple 19 Aug, 2008 212.6 KB PDF
Fact sheet - AM VLT® dU/dt Filter MCC 102 English Multiple 30 Mar, 2017 210.3 KB PDF
Installation guide - AN VLT® Encoder Input MCB 102 English Multiple 03 Jul, 2008 121.3 KB PDF
Installation guide - AN VLT® Encoder Input MCB 102 English Multiple 03 Jul, 2008 292.4 KB PDF
Installation guide - AN VLT® Encoder Option MCB 102 English Multiple 01 Jun, 2017 258.2 KB PDF
Fact sheet - AM VLT® EtherNet/IP MCA 121 English Multiple 10 Jul, 2018 245.0 KB PDF
Installation guide - AN VLT® EtherNet/IP MCA 121 English Multiple 19 Nov, 2014 4.9 MB PDF
Installation guide - AN VLT® Extended Relay Card MCB 113 English Multiple 17 Dec, 2009 1.4 MB PDF
Installation guide - AN VLT® Extended Relay Card MCB 113 English Multiple 01 Mar, 2020 29.0 MB PDF
Installation guide - AN VLT® FC 300 Extended Relay Card Instr. English Multiple 26 Feb, 2008 2.3 MB PDF
Installation guide - AN VLT® FC 300 Extended Relay Card Instr. English Multiple 12 Oct, 2007 141.2 KB PDF
Installation guide - AN VLT® FC 300 IP21/Type1 Encloser Instr. English Multiple 14 Feb, 2005 220.8 KB PDF
Installation guide - AN VLT® FC 300 LCP Frontmounting Kit English Multiple 19 Oct, 2009 364.5 KB PDF
Installation guide - AN VLT® FC 300 LCP Frontmounting Kit Instr English Multiple 03 Jul, 2008 194.2 KB PDF
Programming guide - AU VLT® FC 300 Programming Guide English Multiple 15 Nov, 2012 5.1 MB PDF
Programming guide - AU VLT® FC 300 Programming Guide English Multiple 30 Sep, 2013 5.1 MB PDF
Programming guide - AU VLT® FC 300 Programming Guide English Multiple 22 Nov, 2013 5.5 MB PDF
Programming guide - AU VLT® FC 300 Programming Guide SW4.8x English Multiple 25 Oct, 2007 3.6 MB PDF
Programming guide - AU VLT® FC 300 Programming Guide SW4.9x English Multiple 22 May, 2008 3.8 MB PDF
Programming guide - AU VLT® FC 300 Programming Guide SW5.5x English Multiple 21 Aug, 2008 4.9 MB PDF
Programming guide - AU VLT® FC 300 Programming Guide SW5.8x English Multiple 29 Jan, 2009 4.9 MB PDF
Programming guide - AU VLT® FC 300 Programming Guide SW5.8x English United States 03 Sep, 2009 4.8 MB PDF
Programming guide - AU VLT® FC 300 Programming Guide SW5.9x English Multiple 09 Jul, 2009 4.9 MB PDF
Programming guide - AU VLT® FC 300 Programming Guide SW6.0x English Multiple 05 Nov, 2009 4.9 MB PDF
Programming guide - AU VLT® FC 300 Programming Guide SW6.0x English United States 22 Dec, 2009 3.7 MB PDF
Installation guide - AN VLT® FC 300 Relay Option MCB 105 English Multiple 06 Dec, 2004 314.7 KB PDF
Installation guide - AN VLT® FC 300 Resolver Input MCB 103 English Multiple 07 May, 2007 172.7 KB PDF
Installation guide - AN VLT® FC Series Leakage Current Monitor English Multiple 05 Apr, 2013 1.3 MB PDF
Design guide - AJ VLT® FC Series Output Filter Design G. English Multiple 22 Feb, 2011 4.8 MB PDF
Design guide - AJ VLT® FC-Serie Output Filter Design Guide English Multiple 20 Jun, 2008 1.1 MB PDF
Design guide - AJ VLT® FC-Serie Output Filter Design Guide English Multiple 29 Jun, 2009 2.4 MB PDF
Installation guide - AN VLT® Frequency Converter C-Slot English Multiple 31 Jan, 2011 2.3 MB PDF
Installation guide - AN VLT® General Purpose I/O Option MCB 101 English Multiple 27 May, 2005 660.3 KB PDF
Installation guide - AN VLT® Installation Mounting Brackets English Multiple 20 Sep, 2007 195.3 KB PDF
Operating guide - AQ VLT® Interbus gateway MCA 110 English Multiple 08 Oct, 2009 2.4 MB PDF
Installation guide - AN VLT® Internal Fuse Replacement English Multiple 29 Oct, 2013 642.0 KB PDF
Installation guide - AN VLT® LCP Panel Mounting Kit IP55/IP66 English Multiple 18 Sep, 2008 238.8 KB PDF
Operating guide - AQ VLT® Low Harmonic Drive FC 302 English United States 02 Mar, 2012 9.9 MB PDF
Operating guide - AQ VLT® Low Harmonic Drive FC 302 English Multiple 02 Mar, 2012 9.9 MB PDF
Design guide - AJ VLT® MCA 121 EtherNet/IP Design Guide English Multiple 05 Mar, 2008 4.3 MB PDF
Design guide - AJ VLT® MCA 121 EtherNet/IP Design Guide English Multiple 26 Sep, 2008 1.9 MB PDF
Operating guide - AQ VLT® MCB 112 PTC Thermistor Card English Multiple 22 May, 2008 4.2 MB PDF
Operating guide - AQ VLT® MCB 112 PTC Thermistor Card English Multiple 14 Oct, 2008 3.3 MB PDF
Installation guide - AN VLT® MCF106 A/B in C Option Adaptor English Multiple 13 Oct, 2008 1.9 MB PDF
Design guide - AJ VLT® MCO 305 Design Guide English Multiple 26 Apr, 2007 4.9 MB PDF
Design guide - AJ VLT® MCO 305 Design Guide English Multiple 11 Jan, 2007 4.0 MB PDF
Design guide - AJ VLT® MCO 305 Design Guide English Multiple 01 Sep, 2008 5.9 MB PDF
Design guide - AJ VLT® MCO 305 Design Guide English Multiple 25 Sep, 2009 4.0 MB PDF
Installation guide - AN VLT® Modbus TCP MCA 122 English Multiple 25 Sep, 2009 2.1 MB PDF
Fact sheet - AM VLT® Modbus TCP MCA 122 English Multiple 11 May, 2016 235.4 KB PDF
Installation guide - AN VLT® Panel Through Kit Instruction English Multiple 09 Jul, 2007 6.6 MB PDF
Operating guide - AQ VLT® Positioning Control MCO 351 English Multiple 23 Apr, 2007 855.1 KB PDF
Programming guide - AU VLT® PROFIBUS DP MCA 101 English Multiple 30 May, 2014 0.0 B PDF
Programming guide - AU VLT® PROFIBUS DP MCA 101 English Multiple 13 Jan, 2016 2.0 MB PDF
Operating guide - AQ VLT® Profibus DP V1 MCA 101 English Multiple 01 Feb, 2007 1.6 MB PDF
Operating guide - AQ VLT® Profibus DP V1 MCA 101 English Multiple 02 Apr, 2014 4.0 MB PDF
Installation guide - AN VLT® Profibus DP V1 MCA 101 English Multiple 10 Jul, 2015 5.4 MB PDF
Installation guide - AN VLT® Profinet MCA 120 English Multiple 09 Jul, 2014 0.0 B PDF
Fact sheet - AM VLT® PROFINET MCA 120 English Multiple 05 May, 2016 267.5 KB PDF
Programming guide - AU VLT® PROFINET MCA 120 English Multiple 24 Oct, 2014 1.6 MB PDF
Installation guide - AN VLT® Programmable I/O MCB 115 English Multiple 01 Jul, 2020 28.7 MB PDF
Installation guide - AN VLT® Programmable I/O MCB 115 English Multiple 01 Mar, 2019 2.0 MB PDF
Installation guide - AN VLT® Programmable I/O MCB 115 English Multiple 01 Apr, 2020 28.8 MB PDF
Fact sheet - AM VLT® PTC Thermistor Card MCB 112 English Multiple 07 Jul, 2008 698.2 KB PDF
Installation guide - AN VLT® Real-time Clock MCB 117 Inst. Guide English Multiple 01 Nov, 2018 159.1 KB PDF
Fact sheet - AM VLT® Real-time Clock MCB117 English Multiple 22 Mar, 2019 289.4 KB PDF
Installation guide - AN VLT® Safe PLC Interface Option MCB 108 English Multiple 03 Aug, 2009 384.2 KB PDF
Installation guide - AN VLT® Safe PLC Panel Interface MCB 108 English Multiple 31 Aug, 2007 388.3 KB PDF
Fact sheet - AM VLT® Safety Option MCB 150/151 English Multiple 03 Oct, 2018 956.6 KB PDF
Operating guide - AQ VLT® Safety Option MCB 152 English Multiple 23 Oct, 2014 4.6 MB PDF
Installation guide - AN VLT® Sensor Input MCB 114 English Multiple 01 Apr, 2017 1.1 MB PDF
Installation guide - AN VLT® Side Fixture Kit/A4Enclosure Sizes English Multiple 12 Aug, 2015 1.2 MB PDF
Fact sheet - AM VLT® Sine-wave Filter MCC 101 English Multiple 24 Mar, 2017 502.0 KB PDF
Brochure - AD VLT® Textile English Multiple 15 Oct, 2008 0.0 B PDF
Installation guide - AN VLT® Wireless Com. Panel LCP 103 English Multiple 01 Mar, 2020 2.3 MB PDF
Installation guide - AN VLT® Wireless Com. Panel LCP 103 English Multiple 01 Oct, 2017 250.2 KB PDF
Installation guide - AN VLT® Wireless Com. Panel LCP 103 English Multiple 01 Nov, 2017 246.7 KB PDF
Installation guide - AN VLT® Wireless Com. Panel LCP 103 English Multiple 01 Feb, 2018 1.1 MB PDF
Installation guide - AN VLT® Wireless Com. Panel LCP 103 English Multiple 01 Aug, 2018 1.1 MB PDF
Case story - AE Wheat biofuel refinery UK English Multiple 01 Jan, 2020 534.6 KB PDF

3D models and drawings

Type Name Language Updated Download File type
EPLAN-files 130B1117 01 Mar, 2019 1.9 MB ZIP
EPLAN-files FC-301P11KT4E20H2XGCXXXSXXXXAXBXCXXXXDX 01 Apr, 2020 1.8 MB ZIP
EPLAN-files FC-301P2K2T4E20H2BGCXXXSXXXXAXBXCXXXXDX 01 Apr, 2020 1.1 MB ZIP
EPLAN-files FC-301P7K5T4E20H2XXXXXXSXXXXAXBXCXXXXDX 01 Apr, 2020 527.0 KB ZIP
EPLAN-files FC-301P7K5T4E55H1XXCXOXSXXXXAXBXCXXXXDX 01 Apr, 2020 496.7 KB ZIP
EPLAN-files FC-301PK55T4Z20H3TXXXXXSXXXXAXBXCXXXXDX 01 Apr, 2020 1.1 MB ZIP
EPLAN-files FC-301PK75T4Z20H2XGXXXXSXXXXA0BXCXXXXDX 01 Apr, 2020 1.3 MB ZIP
EPLAN-files LCP 102 01 Mar, 2019 931.9 KB ZIP
M-Drawing - MD MCAD FC A1 IP20 01 Oct, 2016 1.5 MB PDF
M-Drawing - MD MCAD FC A1 IP20 01 Oct, 2016 2.7 MB DXF
M-Drawing - MD MCAD FC A1 IP20 01 Oct, 2016 2.0 MB JPG
M-Drawing - MD MCAD FC A1 IP20 01 Oct, 2016 7.9 MB STP
M-Drawing - MD MCAD FC A1 IP20 A 01 Oct, 2016 1.5 MB PDF
M-Drawing - MD MCAD FC A1 IP20 A 01 Oct, 2016 2.9 MB DXF
M-Drawing - MD MCAD FC A1 IP20 A 01 Oct, 2016 2.1 MB JPG
M-Drawing - MD MCAD FC A1 IP20 A 01 Oct, 2016 8.2 MB STP
M-Drawing - MD MCAD FC A1 IP21 01 Oct, 2016 1.5 MB PDF
M-Drawing - MD MCAD FC A1 IP21 01 Oct, 2016 2.4 MB DXF
M-Drawing - MD MCAD FC A1 IP21 01 Oct, 2016 2.2 MB JPG
M-Drawing - MD MCAD FC A1 IP21 01 Oct, 2016 7.9 MB STP
M-Drawing - MD MCAD FC A1 IP21 B 01 Oct, 2016 1.5 MB PDF
M-Drawing - MD MCAD FC A1 IP21 B 01 Oct, 2016 2.5 MB DXF
M-Drawing - MD MCAD FC A1 IP21 B 01 Oct, 2016 2.2 MB JPG
M-Drawing - MD MCAD FC A1 IP21 B 01 Oct, 2016 8.1 MB STP
M-Drawing - MD MCAD FC A2 IP20 01 Oct, 2016 5.5 MB DXF
M-Drawing - MD MCAD FC A2 IP20 01 Oct, 2016 1.8 MB PDF
M-Drawing - MD MCAD FC A2 IP20 01 Oct, 2016 2.1 MB JPG
M-Drawing - MD MCAD FC A2 IP20 01 Oct, 2016 8.3 MB STP
M-Drawing - MD MCAD FC A2 IP20 AB 01 Oct, 2016 1.9 MB PDF
M-Drawing - MD MCAD FC A2 IP20 AB 01 Oct, 2016 7.3 MB DXF
M-Drawing - MD MCAD FC A2 IP20 AB 01 Oct, 2016 2.2 MB JPG
M-Drawing - MD MCAD FC A2 IP20 AB 01 Oct, 2016 8.5 MB STP
M-Drawing - MD MCAD FC A2 IP20 ABC 01 Oct, 2016 2.0 MB PDF
M-Drawing - MD MCAD FC A2 IP20 ABC 01 Oct, 2016 2.3 MB JPG
M-Drawing - MD MCAD FC A2 IP20 ABC 01 Oct, 2016 9.4 MB STP
M-Drawing - MD MCAD FC A2 IP20 ABC 01 Oct, 2016 4.6 MB DXF
M-Drawing - MD MCAD FC A2 IP20 B 01 Oct, 2016 5.6 MB DXF
M-Drawing - MD MCAD FC A2 IP20 B 01 Oct, 2016 1.8 MB PDF
M-Drawing - MD MCAD FC A2 IP20 B 01 Oct, 2016 2.1 MB JPG
M-Drawing - MD MCAD FC A2 IP20 B 01 Oct, 2016 8.3 MB STP
M-Drawing - MD MCAD FC A2 IP20 C 01 Oct, 2016 6.0 MB DXF
M-Drawing - MD MCAD FC A2 IP20 C 01 Oct, 2016 1.9 MB PDF
M-Drawing - MD MCAD FC A2 IP20 C 01 Oct, 2016 2.2 MB JPG
M-Drawing - MD MCAD FC A2 IP20 C 01 Oct, 2016 9.0 MB STP
M-Drawing - MD MCAD FC A2 IP21 06 Sep, 2019 2.5 MB DXF
M-Drawing - MD MCAD FC A2 IP21 06 Sep, 2019 1.6 MB PDF
M-Drawing - MD MCAD FC A2 IP21 06 Sep, 2019 2.8 MB JPG
M-Drawing - MD MCAD FC A2 IP21 06 Sep, 2019 6.8 MB STP
M-Drawing - MD MCAD FC A2 IP21 B 01 Oct, 2016 2.6 MB DXF
M-Drawing - MD MCAD FC A2 IP21 B 01 Oct, 2016 1.6 MB PDF
M-Drawing - MD MCAD FC A2 IP21 B 01 Oct, 2016 2.8 MB JPG
M-Drawing - MD MCAD FC A2 IP21 B 01 Oct, 2016 9.0 MB STP
M-Drawing - MD MCAD FC A3 IP20 06 Sep, 2019 3.8 MB DXF
M-Drawing - MD MCAD FC A3 IP20 06 Sep, 2019 1.7 MB PDF
M-Drawing - MD MCAD FC A3 IP20 06 Sep, 2019 2.2 MB JPG
M-Drawing - MD MCAD FC A3 IP20 06 Sep, 2019 10.3 MB STP
M-Drawing - MD MCAD FC A3 IP20 AB 01 Oct, 2016 3.7 MB DXF
M-Drawing - MD MCAD FC A3 IP20 AB 01 Oct, 2016 1.7 MB PDF
M-Drawing - MD MCAD FC A3 IP20 AB 01 Oct, 2016 2.3 MB JPG
M-Drawing - MD MCAD FC A3 IP20 AB 01 Oct, 2016 10.1 MB STP
M-Drawing - MD MCAD FC A3 IP20 ABC 01 Oct, 2016 8.3 MB DXF
M-Drawing - MD MCAD FC A3 IP20 ABC 01 Oct, 2016 2.1 MB PDF
M-Drawing - MD MCAD FC A3 IP20 ABC 01 Oct, 2016 3.4 MB JPG
M-Drawing - MD MCAD FC A3 IP20 ABC 01 Oct, 2016 9.2 MB STP
M-Drawing - MD MCAD FC A3 IP20 B 01 Oct, 2016 3.6 MB DXF
M-Drawing - MD MCAD FC A3 IP20 B 01 Oct, 2016 1.7 MB PDF
M-Drawing - MD MCAD FC A3 IP20 B 01 Oct, 2016 2.2 MB JPG
M-Drawing - MD MCAD FC A3 IP20 B 01 Oct, 2016 9.9 MB STP
M-Drawing - MD MCAD FC A3 IP20 C 01 Oct, 2016 6.5 MB DXF
M-Drawing - MD MCAD FC A3 IP20 C 01 Oct, 2016 2.0 MB PDF
M-Drawing - MD MCAD FC A3 IP20 C 01 Oct, 2016 3.2 MB JPG
M-Drawing - MD MCAD FC A3 IP20 C 01 Oct, 2016 9.1 MB STP
M-Drawing - MD MCAD FC A3 IP21 01 Oct, 2016 2.8 MB DXF
M-Drawing - MD MCAD FC A3 IP21 01 Oct, 2016 3.0 MB JPG
M-Drawing - MD MCAD FC A3 IP21 01 Oct, 2016 10.7 MB STP
M-Drawing - MD MCAD FC A3 IP21 01 Oct, 2016 1.6 MB PDF
M-Drawing - MD MCAD FC A4 to B2 Bracket 01 Jul, 2020 216.8 KB PDF
M-Drawing - MD MCAD FC A4 to B2 Bracket 01 Jul, 2020 311.7 KB STP
M-Drawing - MD MCAD FC A4 to B2 Roof 01 Jul, 2020 237.1 KB PDF
M-Drawing - MD MCAD FC A4 to B2 Roof 01 Jul, 2020 611.3 KB STP
M-Drawing - MD MCAD FC A5 IP55 66 01 Oct, 2019 1.0 MB PDF
M-Drawing - MD MCAD FC A5 IP55 66 01 Oct, 2019 10.2 MB DXF
M-Drawing - MD MCAD FC A5 IP55 66 01 Oct, 2019 27.6 MB STP
M-Drawing - MD MCAD FC A5 IP55 66 w switch 01 Oct, 2019 1.1 MB PDF
M-Drawing - MD MCAD FC A5 IP55 66 w switch 01 Oct, 2019 11.4 MB DXF
M-Drawing - MD MCAD FC A5 IP55 66 w switch 01 Oct, 2019 55.7 MB STP
M-Drawing - MD MCAD FC A5 IP55 Back plate 01 Jul, 2020 183.9 KB PDF
M-Drawing - MD MCAD FC A5 IP55 Back plate 01 Jul, 2020 440.1 KB STP
M-Drawing - MD MCAD FC A5 IP66 Back plate 01 Jul, 2020 137.4 KB PDF
M-Drawing - MD MCAD FC A5 IP66 Back plate 01 Jul, 2020 421.2 KB STP
M-Drawing - MD MCAD FC B1 IP21 01 Oct, 2016 2.1 MB PDF
M-Drawing - MD MCAD FC B1 IP21 01 Oct, 2016 4.4 MB DXF
M-Drawing - MD MCAD FC B1 IP21 01 Oct, 2016 2.2 MB JPG
M-Drawing - MD MCAD FC B1 IP21 01 Oct, 2016 18.6 MB STP
M-Drawing - MD MCAD FC B1 IP21 WITH DISCONNECTOR 01 Oct, 2016 2.2 MB PDF
M-Drawing - MD MCAD FC B1 IP21 WITH DISCONNECTOR 01 Oct, 2016 4.5 MB DXF
M-Drawing - MD MCAD FC B1 IP21 WITH DISCONNECTOR 01 Oct, 2016 20.0 MB STP
M-Drawing - MD MCAD FC B1 IP21 WITH DISCONNECTOR 01 Oct, 2016 2.3 MB JPG
M-Drawing - MD MCAD FC B1 IP55 Back plate 01 Jul, 2020 220.5 KB PDF
M-Drawing - MD MCAD FC B1 IP55 Back plate 01 Jul, 2020 563.8 KB STP
M-Drawing - MD MCAD FC B1 IP66 WITH DISCONNECTOR 01 Oct, 2016 2.3 MB PDF
M-Drawing - MD MCAD FC B1 IP66 WITH DISCONNECTOR 01 Oct, 2016 4.8 MB DXF
M-Drawing - MD MCAD FC B1 IP66 WITH DISCONNECTOR 01 Oct, 2016 20.6 MB STP
M-Drawing - MD MCAD FC B1 IP66 WITH DISCONNECTOR 01 Oct, 2016 2.3 MB JPG
M-Drawing - MD MCAD FC B2 IP21 WITH DISCONNECTOR 01 Sep, 2016 5.0 MB DXF
M-Drawing - MD MCAD FC B2 IP21 WITH DISCONNECTOR 01 Sep, 2016 2.4 MB JPG
M-Drawing - MD MCAD FC B2 IP21 WITH DISCONNECTOR 01 Sep, 2016 2.3 MB PDF
M-Drawing - MD MCAD FC B2 IP21 WITH DISCONNECTOR 01 Sep, 2016 19.4 MB STP
M-Drawing - MD MCAD FC B2 IP21/55/66 29 Jun, 2016 5.0 MB DXF
M-Drawing - MD MCAD FC B2 IP21/55/66 29 Jun, 2016 2.4 MB JPG
M-Drawing - MD MCAD FC B2 IP21/55/66 29 Jun, 2016 7.0 MB STP
M-Drawing - MD MCAD FC B2 IP21/55/66 29 Jun, 2016 2.2 MB PDF
M-Drawing - MD MCAD FC B2 IP55 Back plate 01 Jul, 2020 94.5 KB PDF
M-Drawing - MD MCAD FC B2 IP55 Back plate 01 Jul, 2020 705.9 KB STP
M-Drawing - MD MCAD FC B3 IP20 29 Jun, 2016 2.8 MB DXF
M-Drawing - MD MCAD FC B3 IP20 29 Jun, 2016 1.6 MB JPG
M-Drawing - MD MCAD FC B3 IP20 29 Jun, 2016 9.8 MB STP
M-Drawing - MD MCAD FC B3 IP20 29 Jun, 2016 1.7 MB PDF
M-Drawing - MD MCAD FC B4 IP20 01 Sep, 2016 6.1 MB DXF
M-Drawing - MD MCAD FC B4 IP20 01 Sep, 2016 2.4 MB JPG
M-Drawing - MD MCAD FC B4 IP20 01 Sep, 2016 10.4 MB STP
M-Drawing - MD MCAD FC B4 IP20 01 Sep, 2016 2.0 MB PDF
M-Drawing - MD MCAD FC B4 IP20 Back plate 01 Jul, 2020 160.3 KB PDF
M-Drawing - MD MCAD FC B4 IP20 Back plate 01 Jul, 2020 126.1 KB STP
M-Drawing - MD MCAD FC B4 IP21 01 Sep, 2016 8.4 MB DXF
M-Drawing - MD MCAD FC B4 IP21 01 Sep, 2016 12.7 MB STP
M-Drawing - MD MCAD FC B4 IP21 01 Sep, 2016 2.0 MB PDF
M-Drawing - MD MCAD FC B4 IP21 01 Sep, 2016 2.1 MB JPG
M-Drawing - MD MCAD FC C1 C2 Roof 01 Jul, 2020 234.8 KB PDF
M-Drawing - MD MCAD FC C1 C2 Roof 01 Jul, 2020 622.9 KB STP
M-Drawing - MD MCAD FC C1 C2 Roof bracket 01 Jul, 2020 215.5 KB PDF
M-Drawing - MD MCAD FC C1 C2 Roof bracket 01 Jul, 2020 277.1 KB STP
M-Drawing - MD MCAD FC C1 IP21/55/66 with disconnector 29 Jun, 2016 19.4 MB STP
M-Drawing - MD MCAD FC C1 IP21/55/66 with disconnector 29 Jun, 2016 2.2 MB PDF
M-Drawing - MD MCAD FC C1 IP21/55/66 with disconnector 29 Jun, 2016 4.7 MB DXF
M-Drawing - MD MCAD FC C1 IP21/55/66 with disconnector 29 Jun, 2016 2.4 MB JPG
M-Drawing - MD MCAD FC C1 IP21/55/66 with disconnector 29 Jun, 2016 0.0 B STP
M-Drawing - MD MCAD FC C1 IP21/55/66 with disconnector 29 Jun, 2016 0.0 B PDF
M-Drawing - MD MCAD FC C2 IP21 10 Sep, 2019 22.4 MB DOC
M-Drawing - MD MCAD FC C2 IP21 10 Sep, 2019 1.8 MB JPG
M-Drawing - MD MCAD FC C2 IP21 10 Sep, 2019 6.3 MB PDF
M-Drawing - MD MCAD FC C2 IP21 10 Sep, 2019 21.4 MB STP
M-Drawing - MD MCAD FC C2 IP21 10 Sep, 2019 1.8 MB JPG
M-Drawing - MD MCAD FC C2 IP55 Back plate 01 Jul, 2020 183.5 KB PDF
M-Drawing - MD MCAD FC C2 IP55 Back plate 01 Jul, 2020 743.6 KB STP
M-Drawing - MD MCAD FC C3 Back plate 01 Jul, 2020 150.2 KB PDF
M-Drawing - MD MCAD FC C3 Back plate 01 Jul, 2020 129.8 KB STP
M-Drawing - MD MCAD FC C3 IP20 01 Sep, 2016 14.0 MB DXF
M-Drawing - MD MCAD FC C3 IP20 01 Sep, 2016 2.6 MB JPG
M-Drawing - MD MCAD FC C3 IP20 01 Sep, 2016 14.5 MB STP
M-Drawing - MD MCAD FC C3 IP20 01 Sep, 2016 2.7 MB PDF
M-Drawing - MD MCAD FC C3 IP21 01 Sep, 2016 11.6 MB DXF
M-Drawing - MD MCAD FC C3 IP21 01 Sep, 2016 2.3 MB JPG
M-Drawing - MD MCAD FC C3 IP21 01 Sep, 2016 19.8 MB STP
M-Drawing - MD MCAD FC C3 IP21 01 Sep, 2016 2.2 MB PDF
M-Drawing - MD MCAD FC C4 Back plate 01 Jul, 2020 148.5 KB PDF
M-Drawing - MD MCAD FC C4 Back plate 01 Jul, 2020 130.0 KB STP
M-Drawing - MD MCAD FC C4 IP20 01 Sep, 2016 18.2 MB DXF
M-Drawing - MD MCAD FC C4 IP20 01 Sep, 2016 3.0 MB JPG
M-Drawing - MD MCAD FC C4 IP20 01 Sep, 2016 12.7 MB STP
M-Drawing - MD MCAD FC C4 IP20 01 Sep, 2016 3.2 MB PDF
M-Drawing - MD MCAD FC C4 IP20 OPTION 01 Sep, 2016 19.6 MB DXF
M-Drawing - MD MCAD FC C4 IP20 OPTION 01 Sep, 2016 13.1 MB STP
M-Drawing - MD MCAD FC C4 IP20 OPTION 01 Sep, 2016 3.0 MB JPG
M-Drawing - MD MCAD FC C4 IP20 OPTION 01 Sep, 2016 3.3 MB PDF
M-Drawing - MD MCAD FC C4 IP21 01 Sep, 2016 11.9 MB DXF
M-Drawing - MD MCAD FC C4 IP21 01 Sep, 2016 2.9 MB JPG
M-Drawing - MD MCAD FC C4 IP21 01 Sep, 2016 16.3 MB STP
M-Drawing - MD MCAD FC C4 IP21 01 Sep, 2016 2.3 MB PDF
M-Drawing - MD MCAD FC F1 F2 F3 F4 IP54 Mounting 01 Oct, 2019 28.2 MB DXF
M-Drawing - MD MCAD FC F1 F2 F3 F4 IP54 Mounting 01 Oct, 2019 5.1 MB PDF
M-Drawing - MD MCAD FC F1 F2 F3 F4 IP54 Side Entry Kit 01 Oct, 2019 1.5 MB DXF
M-Drawing - MD MCAD FC F1 F2 F3 F4 IP54 Side Entry Kit 01 Oct, 2019 343.3 KB PDF
E-Drawing - ED Wiring Schematic FC 103, FC 302 01 Jun, 2015 192.5 KB PDF

Software

Type Name Language Updated Version Status Download File type
Software Tools TwinCAT® Danfoss DriveManager Plug-in 30 Mar, 2020 1.40 AL 54.6 MB ZIP
Software Tools TwinCAT® Danfoss DriveManager Plug-in 27 Apr, 2020 1.54 RL 54.6 MB ZIP
Software Tools TwinCAT® Danfoss DriveManager Plug-in 19 Dec, 2019 1.40 RL 54.5 MB ZIP
Software Tools VLT® AutomationDrive FC 301 Simulator 23 Apr, 2018 8.23 RL 3.0 MB ZIP
VLT MCT 10 Support File VLT® AutomationDrive Support File v8.34 06 Jun, 2019 8.34 RL 3.9 MB ZIP
VLT MCT 10 Support File VLT® AutomationDrive Support File v8.43 23 Sep, 2019 8.43 RL 5.9 MB ZIP
VLT MCT 10 Support File VLT® AutomationDrive Support File v8.53 24 Feb, 2020 8.53 RL 5.9 MB ZIP
Fieldbus Configuration Files VLT® Drives DeviceNet EDS 02 Feb, 2011 RL 2.0 MB ZIP
Fieldbus Configuration Files VLT® Drives EtherNet/IP EDS 27 Jun, 2016 RL 59.8 KB ZIP
Fieldbus Configuration Files VLT® Drives PROFIBUS GSD 03 Nov, 2010 RL 76.9 KB ZIP
Fieldbus Configuration Files VLT® Drives PROFIBUS PCA Block 19 Mar, 2008 RL 465.8 KB ZIP
Fieldbus Configuration Files VLT® MCA101 PROFIBUS GSD 03 Nov, 2010 RL 76.9 KB ZIP
Fieldbus Configuration Files VLT® MCA104 CANopen EDS 23 Jun, 2014 RL 82.7 KB ZIP
Fieldbus Configuration Files VLT® MCA120 PROFINET GSDML 21 Feb, 2018 RL 719.2 KB ZIP
Fieldbus Configuration Files VLT® MCA123 POWERLINK XDD 02 Aug, 2013 RL 27.0 KB ZIP
Software Tools VLT® Motion Control Tool MCT10 02 Dec, 2019 4.61 RL 802.6 MB ZIP
Software Tools VLT® Motion Control Tool MCT10 16 Mar, 2020 5.00 RL 846.2 MB ZIP
Software Tools VLT® Motion Control Tool MCT10 03 Jul, 2020 5.10 RL 891.7 MB ZIP
Software Tools VLT® Motion Control Tool MCT31 17 Oct, 2017 2.0.4 RL 25.2 MB ZIP

Related applications

Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.

  • Drives for conveyors in food and beverage applications

    Ensure maximum uptime and lowest possible cost of ownership with hygienic, variable-speed conveyor control. EHEDG- and IPA-certified.

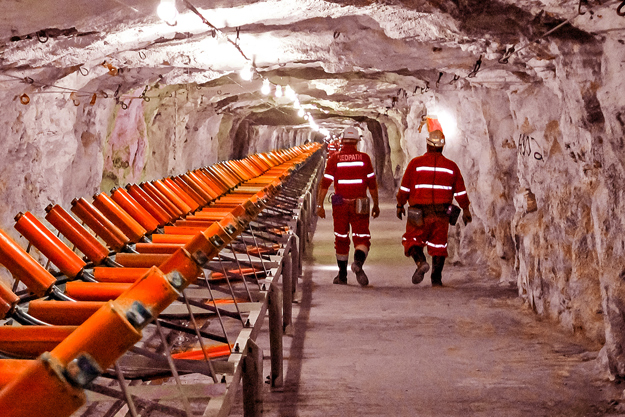

  • Drives for conveyors in mining
    Drives for conveyors in mining

    Flexibility to control the speed of long conveyors can help optimize the complete system, reduce bottlenecks and extend motor lifetime.

  • Drives for positioning & synchronization in food & beverage

    Reduce cost, complexity, and programming time in servo applications by using an AC drive for high-precision positioning and synchronization.

Case studies

  • Holcim Cement
    Cement Plant Realizes Solid Energy Savings with Variable Frequency Drives

     Holcim (US) engaged Danfoss for advanced variable frequency drive technology to assist in making its manufacturing site one of the most energy-efficient cement plants in the world.

  • Shore power supply is a cost-effective solution for Maersk Supply Service’s parked vessels
    Shore power supply is a cost-effective solution for Maersk Supply Service’s parked vessels

    Thanks to shore power supply during parking, Maersk Supply Service can keep diesel exhaust pollution, noise nuisance and maintenance costs to a minimum.

  • Bottling is more competitive when it is sensorless
    Bottling is more competitive when it is sensorless

    To achieve higher productivity and energy efficiency on two new bottling lines, Tavina chose the Danfoss VLT® FlexConcept drive system.

  • Peroni wins >30% in conveyor efficiency
    Peroni wins >30% in conveyor efficiency

    Peroni Brewery wins at least 30% better conveyor belt efficiency in a bottling line upgrade with VLT® FlexConcept®.

  • Powder mixing productivity triples with wireless PROFINET
    Powder mixing productivity triples with wireless PROFINET

    Triple the throughput and decimate the downtime? That’s what the Dutch powder mix provider, Huijbregts Groep, achieved by automation of mixers using VLT® AutomationDrive with wireless PROFINET.

  • Traditional brewery engineers tomorrow
    Traditional brewery engineers tomorrow

    Since upgrading its filling plant to energy-efficient drives from Danfoss, Stiegl Brewery of Salzburg saves about EUR 15,000 annually in maintenance and energy consumption.
