Poppet type solenoid valves

Where to buy
  • Overview
  • Product range
  • Documents
Where to buy

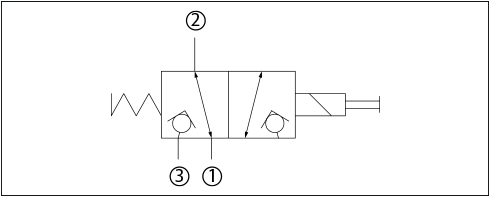

Direct acting 3-way

Model code

Cavity

Rated pressure

Rated flow

3D model
EVH 06/D5 NCS06/3 230 bar (3300 psi) 20 lpm
(5 gpm)		 STP files

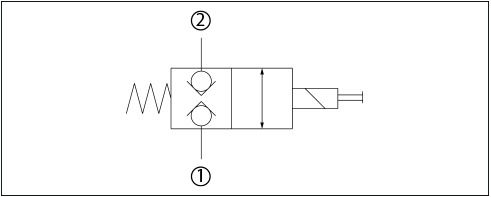

Direct acting normally closed double blocking

Model code

Cavity

Rated pressure

Rated flow

3D model
SVP08-CDB SDC08-2 230 bar (3300 psi) 16 lpm
(4 gpm)		 STP files
EVK 06/C5 NCS06/2 210 bar (3000 psi) 40 lpm
(10.6 gpm)		 STP files

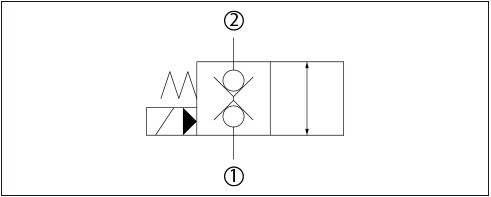

Pilot operated normally closed double blocking

Model code

Cavity

Rated pressure

Rated flow

3D model
HSVP10-CDB SDC10-2 350 bar (5075 psi) 50 lpm
(13.2 gpm)		 STP files

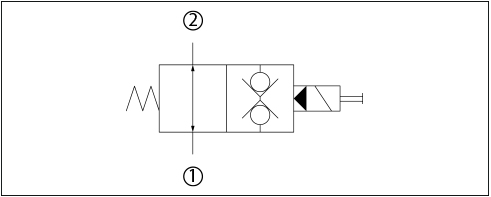

Pilot operated normally open double blocking

Model code

Cavity

Rated pressure

Rated flow

3D model
HSVP10-ODB SDC10-2 350 bar (5075 psi) 50 lpm
(13.2 gpm)		 STP files



2-way, pilot operated normally closed

Model code

Cavity

Rated pressure

Rated flow

3D model
SVP08-NC SDC08-2 230 bar (3300 psi) 35 lpm
(9 gpm)		 STP files
SVP10-NC SDC10-2 230 bar (3300 psi) 80 lpm
(21 gpm)		 STP files
HSVP10-NC SDC10-2 350 bar (5075 psi) 65 lpm
(17 gpm)		 STP files
SVP12-NC CP12-2 230 bar (3300 psi) 114 lpm
(30 gpm)		 STP files
HSVP12-NC CP12-2 350 bar (5075 psi) 114 lpm
(30 gpm)		 STP files
SVP16-NC SDC16-2 230 bar (3300 psi) 152 lpm
(40 gpm)		 STP files
HSVP16-NC SDC16-2 350 bar (5075 psi) 152 lpm
(40 gpm)		 STP files
SVP20-NC SDC20-2 230 bar (3300 psi) 227 lpm
(60 gpm)		 STP files
HSVP20-NC SDC20-2 350 bar (5075 psi) 227 lpm
(60 gpm)		 STP files

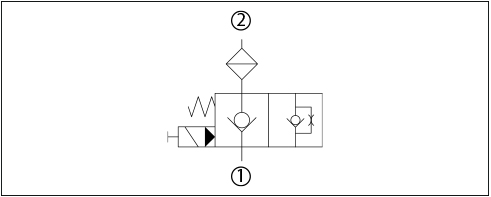

2-way, pilot operated normally closed  (flow control)

Model code

Cavity

Rated pressure

Rated flow

3D model
SVP08-NCF SDC08-2 230 bar (3300 psi) 16 lpm
(4.2 gpm)		 STP files

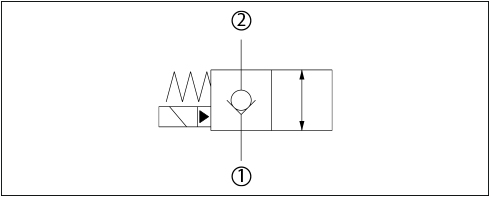

2-way, pilot operated normally closed (with reverse free flow)

Model code

Cavity

Rated pressure

Rated flow

3D model
SVP08-NCR SDC08-2 230 bar (3300 psi) 35 lpm
(9 gpm)		 STP files
SVP10-NCR SDC10-2 230 bar (3300 psi) 80 lpm
(21 gpm)		 STP files
HSVP10-NCR SDC10-2 350 bar (5075 psi) 65 lpm
(17 gpm)		 STP files
SVP12-NCR CP12-2 230 bar (3300 psi) 114 lpm
(30 gpm)		 STP files
HSVP12-NCR CP12-2 350 bar (5075 psi) 114 lpm
(30 gpm)		 STP files
SVP16-NCR SDC16-2 230 bar (3300 psi) 152 lpm
(40 gpm)		 STP files
HSVP16-NCR SDC16-2 350 bar (5075 psi) 152 lpm
(40 gpm)		 STP files
SVP20-NCR SDC20-2 230 bar (3300 psi) 227 lpm
(60 gpm)		 STP files
HSVP20-NCR SDC20-2 350 bar (5075 psi) 227 lpm
(60 gpm)		 STP files

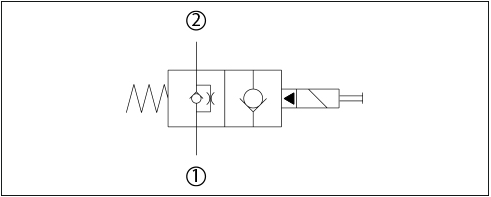

2-way, normally open pilot operated

Model code

Cavity

Rated pressure

Rated flow

3D model
SVP08-NO SDC08-2 230 bar (3300 psi) 35 lpm
(9 gpm)		 STP files
SVP10-NO SDC10-2 230 bar (3300 psi) 80 lpm
(21 gpm)		 STP files
HSVP10-NO SDC10-2 350 bar (5075 psi) 65 lpm
(17 gpm)		 STP files
SVP12-NO CP12-2 230 bar (3300 psi) 114 lpm
(30 gpm)		 STP files
HSVP12-NO CP12-2 350 bar (5075 psi) 114 lpm
(30 gpm)		 STP files
SVP16-NO SDC16-2 230 bar (3300 psi) 152 lpm
(40 gpm)		 STP files
HSVP16-NO SDC16-2 350 bar (5075 psi) 152 lpm
(40 gpm)		 STP files
SVP20-NO SDC20-2 230 bar (3300 psi) 265 lpm
(60 gpm)		 STP files
HSVP20-NO SDC20-2 350 bar (5075 psi) 265 lpm
(70 gpm)		 STP files

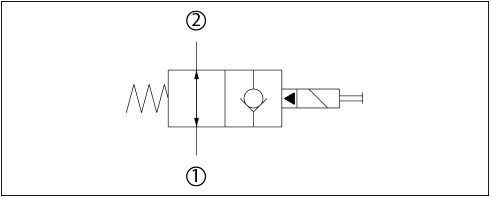

2-way, pilot operated normally open (with reverse free flow)

Model code

Cavity

Rated pressure

Rated flow

3D model
SVP08-NOR  SDC08-2 230 bar (3300 psi) 35 lpm
(9 gpm)		 STP files
SVP10-NOR SDC10-2 230 bar (3300 psi) 80 lpm
(21 gpm)		 STP files
HSVP10-NOR SDC10-2 350 bar (5075 psi) 65 lpm
(17 gpm)		 STP files
SVP12-NOR CP12-2 230 bar (3300 psi) 114 lpm
(30 gpm)		 STP files
HSVP12-NOR CP12-2 350 bar (5075 psi)

114 lpm
(30 gpm)

 STP files
SVP16-NOR SDC16-2 230 bar (3300 psi) 153 lpm
(40 gpm)		 STP files
HSVP16-NOR SDC16-2 350 bar (5075 psi) 153 lpm
(40 gpm)		 STP files
SVP20-NOR SDC20-2 230 bar (3300 psi) 265 lpm
(70 gpm)		 STP files
HSVP20-NOR SDC20-2 350 bar (5075 psi) 265 lpm
(70 gpm)		 STP files







Product range

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Solenoid Valves Technical Information English Multiple 22 Dec, 2022 28.9 MB .pdf
