Differential area relief valves

Where to buy
  • Overview
  • Related products
  • Documents
Where to buy

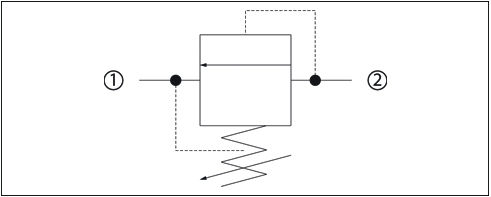

Poppet type valves

Model Code Cavity Rated Pressure Rated Flow  3D Model
CP200-2 SDC10-2 350 bar
(5075 psi)		 40 lpm
(11 gpm)		 STP files
CP208-1 SDC08-2 250 bar
(3600 psi)		 40 lpm
(11 gpm)		 STP files
CP200-1 SDC10-2 250 bar
(3600 psi)		 75 lpm
(20 gpm)		 STP files
CP201-1 CP12-2 250 bar
(3600 psi)		 150 lpm
(40 gpm)		 STP files

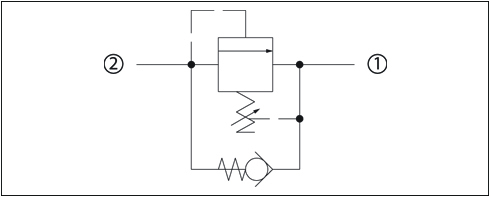

Poppet type valve (with reverse free flow)

Model Code Cavity Rated Pressure Rated Flow  3D Model
VSB 06-EN NCS06/2 350 bar
(5075 psi)		 80 lpm
(21 gpm)		 STP files
VSB 12-EN NCS12/2 350 bar
(5075 psi)		 140 lpm
(37 gpm)		 STP files



Poppet type valve (with atmospheric vent and reverse free flow)

Model Code Cavity Rated Pressure Rated Flow  3D Model
VSB 06-CN NCS06/2 350 bar
(5075 psi)		 80 lpm
(21 gpm)		 STP files
VSB 12-CN NCS12/2 350 bar
(5075 psi)		 140 lpm
(37 gpm)		 STP files



Related products

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Relief Valves Technical Information English Multiple 22 Dec, 2022 1.5 MB .pdf
