Pilot to close check valves

Where to buy
  • Overview
  • Related products
  • Documents
Where to buy

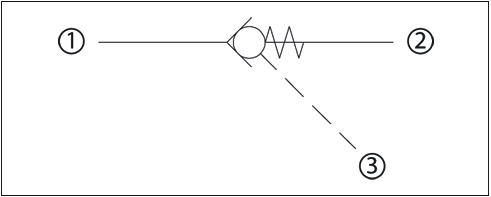

Port 3 pilot

Model code

Cavity

Rated pressure

Rated flow

3D model
CP460-1 SDC10-3 210 bar (3045 psi) 22 lpm
(5.8 gpm)		 STP files
CP461-1 CP12-3S 210 bar (3045 psi) 60 lpm
(16 gpm)		 STP files
CP462-1 SDC16-3S 210 bar (3045 psi) 190 lpm
(50 gpm)		 STP files



Related products

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Pilot Operated Check Valves Technical Information English Multiple 22 Dec, 2022 1.8 MB .pdf
