Needle valves

Where to buy
  • Overview
  • Product range
  • Documents
Where to buy

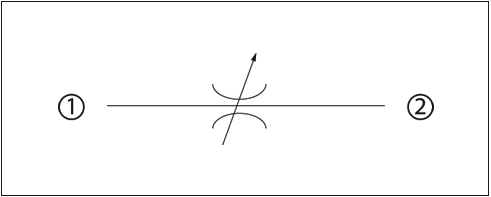

Bi-directional

Model code Cavity Rated pressure Rated flow 3D model
CP618-1 SDC08-2 210 bar
(3000 psi)		 25 lpm
(7 gpm)		 STP files
CP618-2 SDC08-2 210 bar
(3000 psi)		 45 lpm
(12 gpm)		 STP files
CP610-1 SDC10-2 210 bar
(3000 psi)		 50 lpm
(13 gpm)		 STP files
CP610-2 SDC10-2 210 bar
(3000 psi)		 50 lpm
(13 gpm)		 STP files
CP611-2 CP12-2 210 bar
(3000 psi)		 115 lpm
(30 gpm)		 STP files
CP612-1 SDC16-2 210 bar
(3000 psi)		 190 lpm
(50 gpm)		 STP files
CP612-2 SDC16-2 210 bar
(3000 psi)		 190 lpm
(50 gpm)		 STP files
CP613-1 SDC20-2 210 bar
(3000 psi)		 380 lpm
(100 gpm)		 STP files

Bi-directional (with fine metering)

Model code Cavity Rated pressure Rated flow 3D model
CP618-6 SDC08-2 310 bar (4500 psi) 10 lpm
(3 gpm)		 STP files



Needle Valves

Bi-directional (with fine metering and reverse free flow)

Model code Cavity Rated pressure Rated flow 3D model
CP610-7 SDC10-2 350 bar
(5075 psi)		 55 lpm
(15 gpm)		 STP files



Needle Valve with Reverse Free Flow

Product range

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Flow Control Valves Technical Information English Multiple 22 Dec, 2022 3.2 MB .pdf
