Manual directional valves

Where to buy
  • Overview
  • Product range
  • Documents
Where to buy

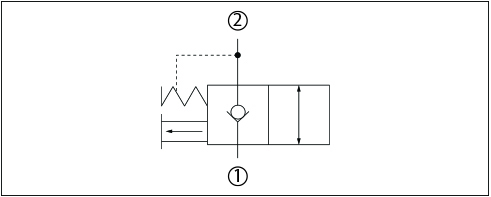

Normally closed poppet type (pull to open)

Model code

Cavity

Rated pressure

Rated flow

3D model
CP600-1 SDC10-2 210 bar (3000 psi) 68 lpm
(18 gpm)		 STP files

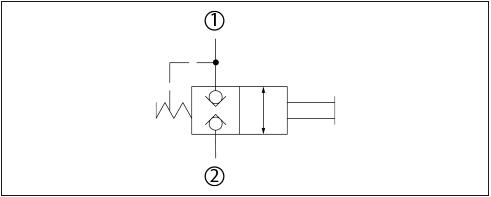

Normally closed poppet type (push to open)

Model code

Cavity

Rated pressure

Rated flow

3D model
CE 06 NCS06/2 315 bar (4500 psi) 20 lpm
(5 gpm)		 STP files
CP600-2 SDC10-2 210 bar (3000 psi) 50 lpm
(13 gpm)		 STP files

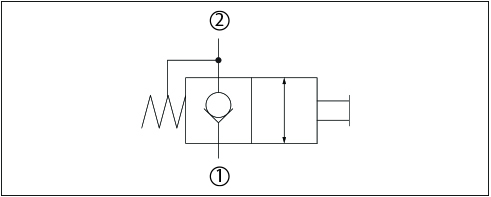

Normally closed poppet type (lever to open)

Model code

Cavity

Rated pressure

Rated flow

3D model
DMP08-NO SDC08-2 210 bar (3000 psi) 48 lpm
(12.7 gpm)		 STP files



Normally open poppet type (lever to close)

Model code

Cavity

Rated pressure

Rated flow

3D model
DMP08-NO SDC08-2 210 bar (3000 psi) 48 lpm
(12.7 gpm)		 STP files

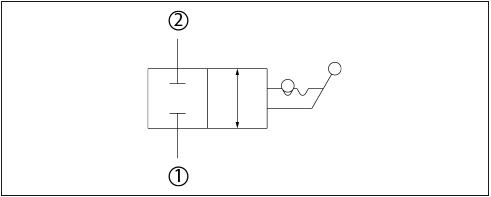

Rotary spool type, 2-position 2-way

Model code

Cavity

Rated pressure

Rated flow

3D model
CP620-1 SDC10-2 210 bar (3000 psi) 75 lpm
(20 gpm)		 STP files

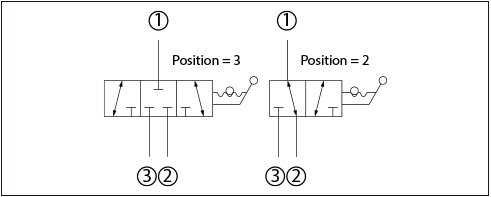

Rotary spool type, 2 or 3-position 3-way

Model code

Cavity

Rated pressure

Rated flow

3D model
CP630-1 SDC10-3 210 bar (3000 psi) 30 lpm
(8 gpm)		 STP files

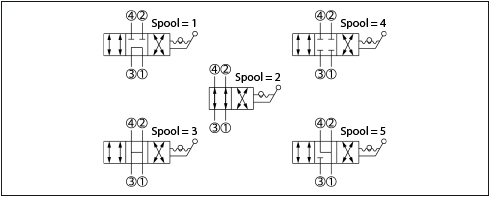

Rotary spool type, 2 or 3-position 4-way

Model code

Cavity

Rated pressure

Rated flow

3D model
CP640-1 SDC10-4 210 bar (3000 psi) 10 lpm
(3 gpm)		 STP files



Product range

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Directional Control Valves Technical Information English Multiple 22 Dec, 2022 3.4 MB .pdf
