In-line check valve

Where to buy
  • Overview
  • Documents
  • Product range
Where to buy

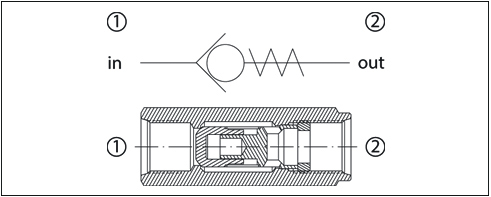

Female ports

Model code Cavity Rated pressure Rated flow  3D model
3C11-01 None 350 bar (5075 psi) 20 lpm
(5 gpm)		 STP files
3C12-01 None 350 bar (5075 psi) 35 lpm
(9 gpm)		 STP files
3C13-01 None 350 bar (5075 psi) 70 lpm
(19 gpm)		 STP files
3C14-01 None 350 bar (5075 psi) 95 lpm
(25 gpm)		 STP files
3C15-01 None 350 bar (5075 psi) 150 lpm
(40 gpm)		 STP files
3C16-01 None 350 bar (5075 psi) 230 lpm
(61 gpm)		 STP files
RS 06 None 350 bar (5075 psi) 30 lpm
(8 gpm)		 STP files
RS 10 None 350 bar (5075 psi) 60 lpm
(16 gpm)		 STP files
RS 13 None 315 bar (4500 psi) 100 lpm
(26 gpm)		 STP files
RS 19 None 280 bar (4000 psi) 140 lpm
(37 gpm)		 STP files
RS 25 None 245 bar (3500 psi) 200 lpm
(53 gpm)		 STP files



Male ports

Model code Cavity Rated pressure Rated flow  3D model
3CM11-01 None 350 bar (5075 psi) 20 lpm
(5 gpm)		 STP files
3CM12-01 None 350 bar (5075 psi) 35 lpm
(9 gpm)		 STP files
3CM15-01 None 350 bar (5075 psi) 150 lpm
(40 gpm)		 STP files

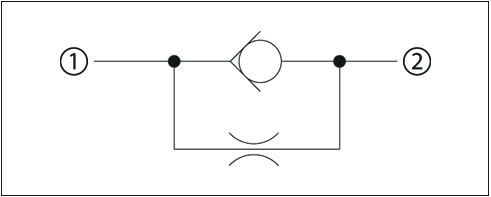

Female ports with orifice

Model code Cavity Rated pressure Rated flow  3D model
2RN11-01 None 350 bar (5075 psi) 20 lpm
(5 gpm)		 STP files



Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Check Valves Technical Information English Multiple 15 Mar, 2024 5.8 MB .pdf
