DS Series snow and ice melt controllers

DS-224 & DS-824

The DS-224 and DS-824 are economy controllers primarily designed for hydronic pavement snow and ice melting applications.

The units can be powered from a 24VAC/VDC source and are available with an integrated or remote precipitation sensor.

Features and benefits

Designed for low voltage hydronic and battery powered systems
Automatic activation provides lower deicing costs
24 VAC/VDC Operation, only 20VA required
Replaceable precipitation sensor
Easy installation
Adjustable temperature trigger point
Adjustable delay off cycle, selectable 30-90 mins. or 2-6 hrs.
Selectable low temperature cut-off

Products

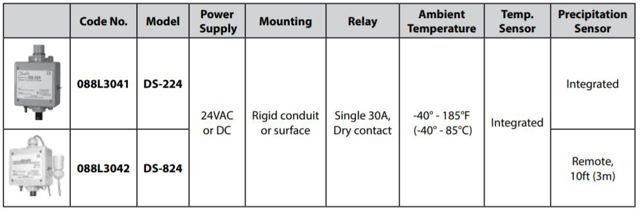

Technical data

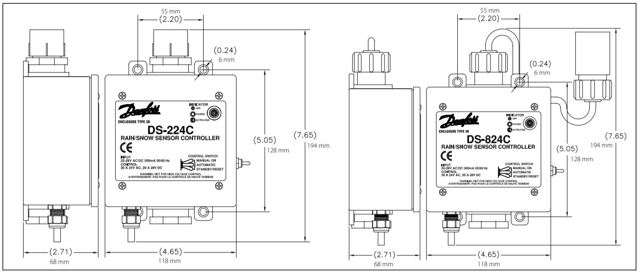

Dimensions

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Installation guide	DS 224 Installation instructions	English	Multiple	31 Aug, 2020	301.2 KB	.pdf
Installation guide	DS 824 Installation Manual	English	Multiple	31 Aug, 2020	325.4 KB	.pdf
Data sheet	DS-224 / DS-824 Snow Melt Controllers Datasheet	English	Multiple	15 Sep, 2010	153.1 KB	.pdf
Catalog	Hydronic Specialties Controls Catalog and Application Guide	English	Multiple	24 Mar, 2022	2.4 MB	.pdf
