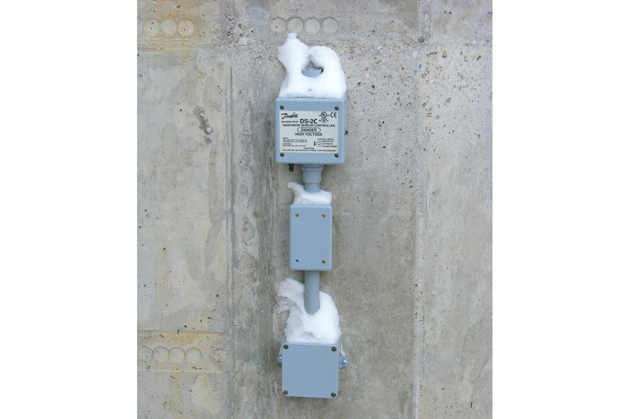

For pavement snow melt applications...

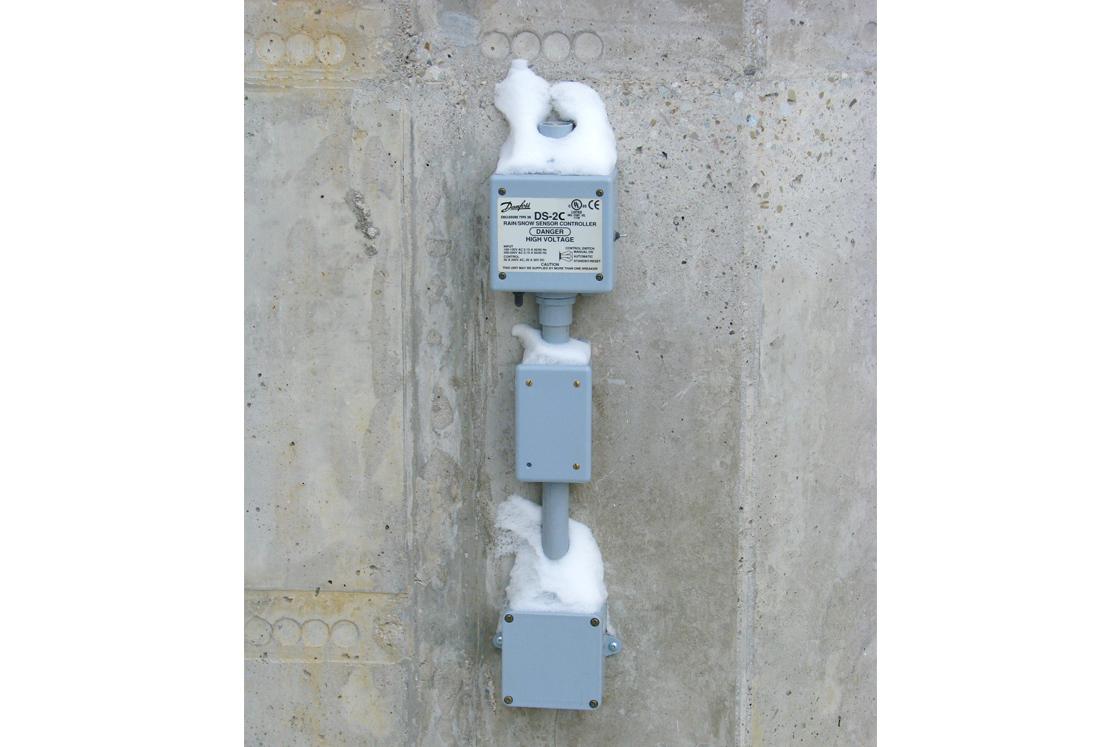

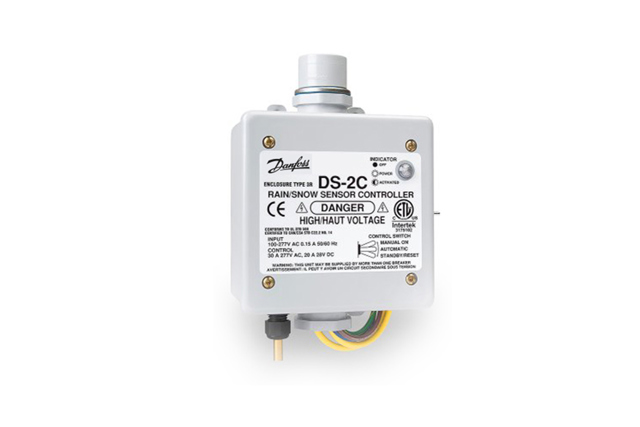

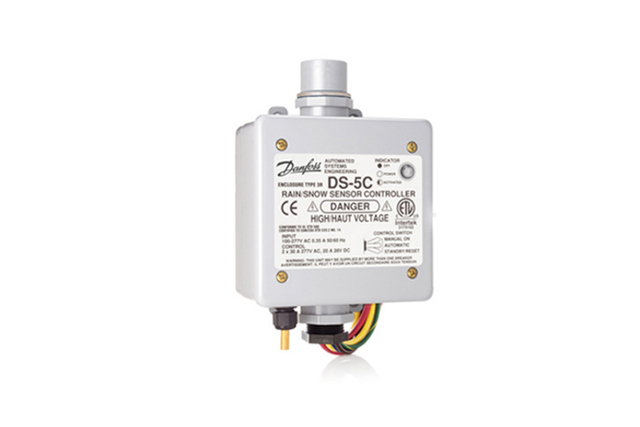

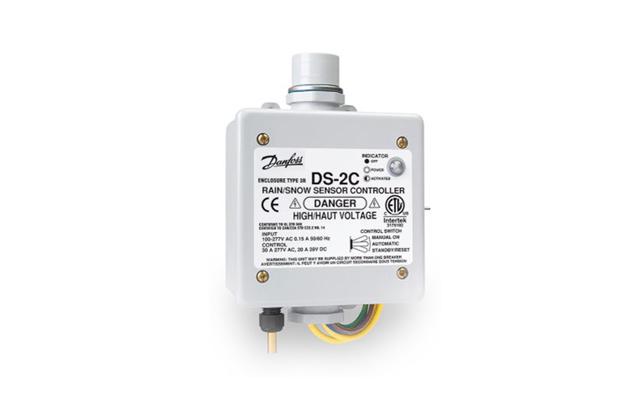

The DS-2C and DS-5C electric snow melt controllers are designed for pavement snow melting applications.
They can be used as a stand alone controller or as a sensor for larger control systems.
Product range
Technical data
Power Control Voltage:
DS-2C: 100-277V universal input
DS-5C: 100-277V field selectable
Max. Heating Load:
DS-2C: 30A
DS-5C: 60A
Max. Ambient Temperature:
-40°F to +185°F (-40°C to +85°C)
Enclosure Type: NEMA 3R
Mounting: Wall/pole mounted, outdoors
Dimensions (HxWxD): 4.75" x 7.00" x 2.75" (121mm x 178mm x 70mm)
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| Data sheet | DS-2C Controller Datasheet | English | Multiple | 01 Aug, 2016 | 241.4 KB | |
| Operating guide | DS-5C Installation Manual | English | United States | 26 Jul, 2016 | 426.6 KB | |
| Data sheet | DS-5C Snow Melt Controller Datasheet | English | Multiple | 25 Jul, 2016 | 369.2 KB | |
| Catalog | Electric Heating Product Catalog VKAPA1022_2 | English | Multiple | 14 Mar, 2019 | 2.6 MB | |
| Brochure | GX Snow Melting Brochure | English | Multiple | 21 Aug, 2017 | 1.4 MB |
Related products
-
if (isSmallPicture) {
Danfoss GX snow and ice melting mats are available in a wide range of sizes and voltages and can be used in a variety of applications from residential driveways and sidewalks to commercial building ramps, steps and parking areas.
-
if (isSmallPicture) {
GX Snow melting cables are available in a wide range of voltages (208V, 240V, 277V, 480V, 600V) and lengths (from 40ft. to 940ft). The GX cable allows for more flexibility during installation as the cables may be spaced at different increments depending on your application area.
-
if (isSmallPicture) {
The AWARD WINNING Danfoss GX Dual Zone Automatic Control Panel (ACP) and GX850M are the most optimal solution for keeping any area free of ice and snow. The GX 850 acts on information received from sensors which register both temperature and moisture, then calculates the information ensuring that the heat will only be turned on when snow and/or ice is present. The result is optimal performance with maximum energy savings and minimum operating costs.
-
if (isSmallPicture) {
Contactor and timer panels, GFEP Panels, and single contactors are all available.
-
if (isSmallPicture) {
Accessories for the outdoor GX snow melting system. Products include cable strapping, ground sensors, repair kits and more.
