Connecto Power Connection/End Kit

Simple, reliable and easy-to-install...

Danfoss Connecto NA is a new & improved line of power connection kits for Danfoss self-regulating heating cables. Enjoy savings with reduced installation times and a product that’s simple to use!

With new Danfoss Connecto connection kits, experience a reliable & solid connection, every time!

Connecto is designed for use with both:

Learn more about Danfoss Connecto

Discover benefits, and see just how easy it is to install, in our new Connecto Installation video on YouTube.

Watch Now

Features and benefits

Installation Simplified: Slide on components, cut, align and connect!

Save Time: Connecto takes no more than three minutes to setup versus conventional methods that took 15-20 minutes.

New & Improved: New Connecto products make the process of adding power to self-regulation cables quicker and easier.

Solid Connection Every Time: Quality products ensure the strongest, hassle-free connection.

Reliable: When manufacturer's installation manual is followed and installed by a licensed professional.

Easy-to-use: Connecto Components are quick to attach to cables and connect with a simple twist and screw of the assembly.

Technical Data:

Operating Voltage	Max. 250 VAC
Current	Max. 16A
Ambient Temperature Range	-40°F to 185°F (-40°C to 85°C)
Operation Temperature Range	-40°F to 150°F (-40°C to 65°C)
Protection Class	NEMA Type 4X / IP66

Product range

Danfoss Connecto NA Power Connection Kit varieties and included components:

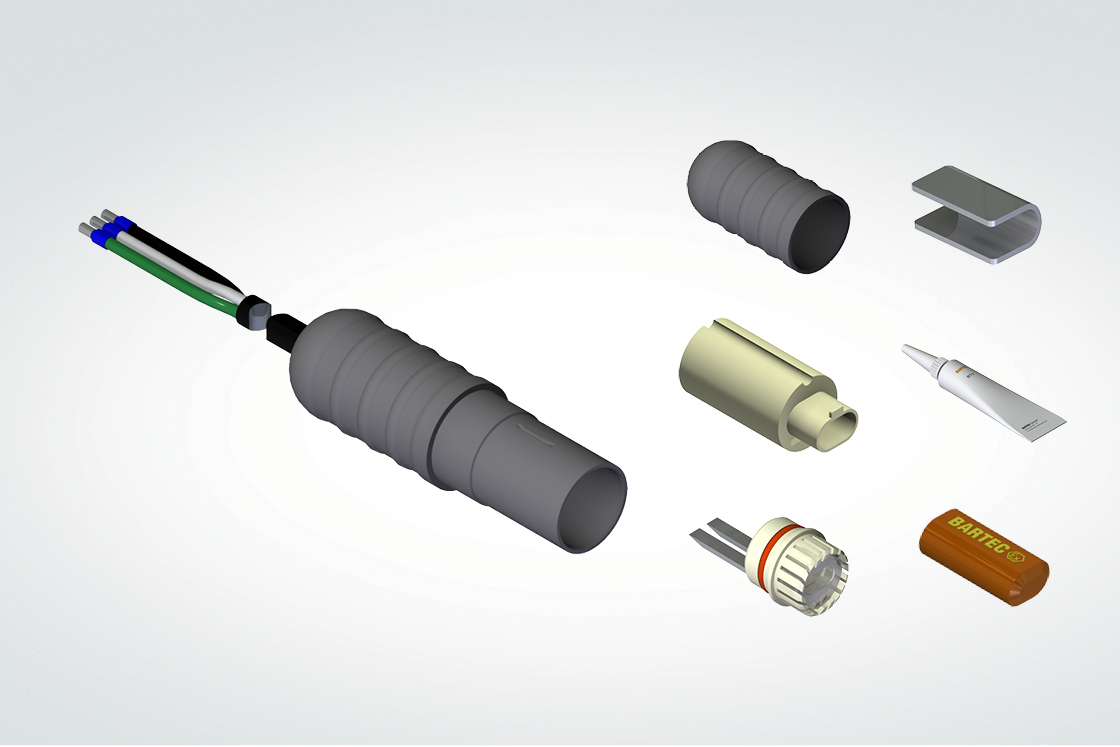

Power Connection/End Kit

NA-B-PK / Code No.: 088L0760
Includes:

Power connection assembly
threaded cap
sleeve
clamping sleeve
clamping sheet
end cap
silicone adhesive

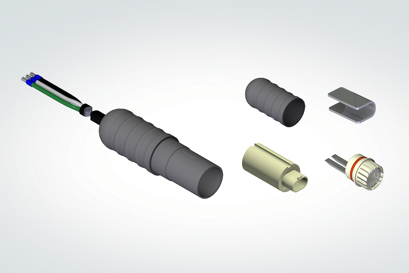

Power Connection Kit

NA-B-P / Code No.: 088L0761
Includes:

Power connection assembly
threaded cap
sleeve
clamping sleeve
clamping sheet

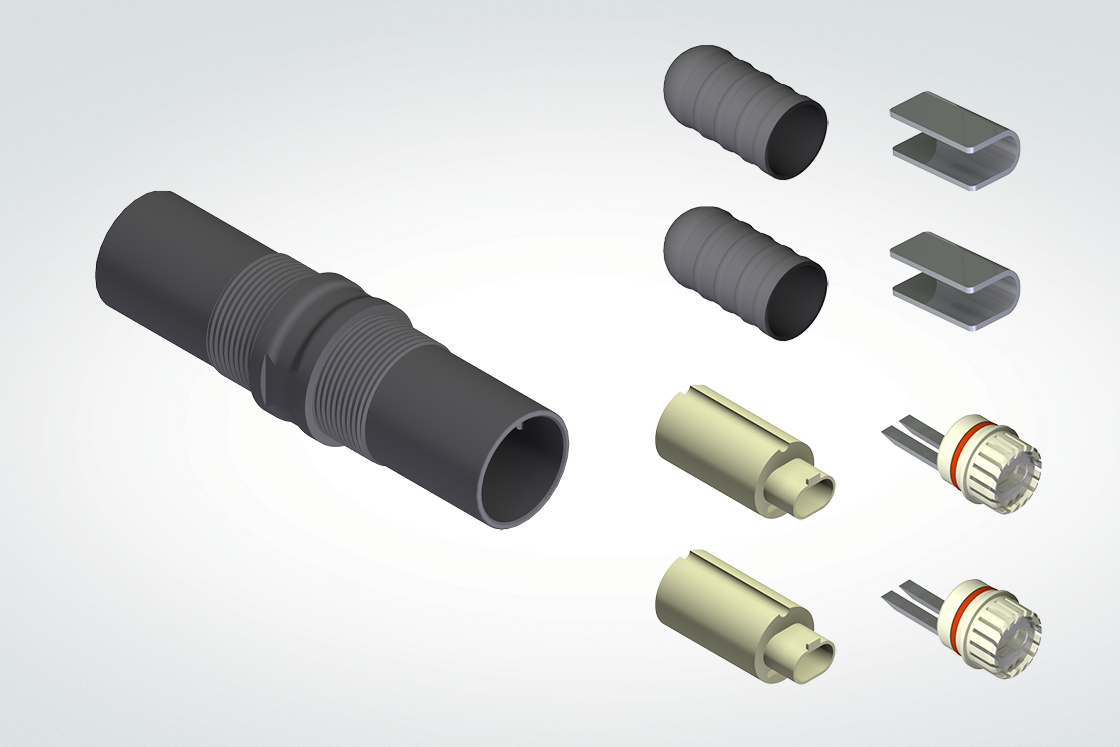

Splice Kit

NA-B-S / Code No.: 088L0762
Includes:

Splice assembly
(2) threaded caps
(2) sleeves
(2) clamping sleeves
(2) clamping sheets

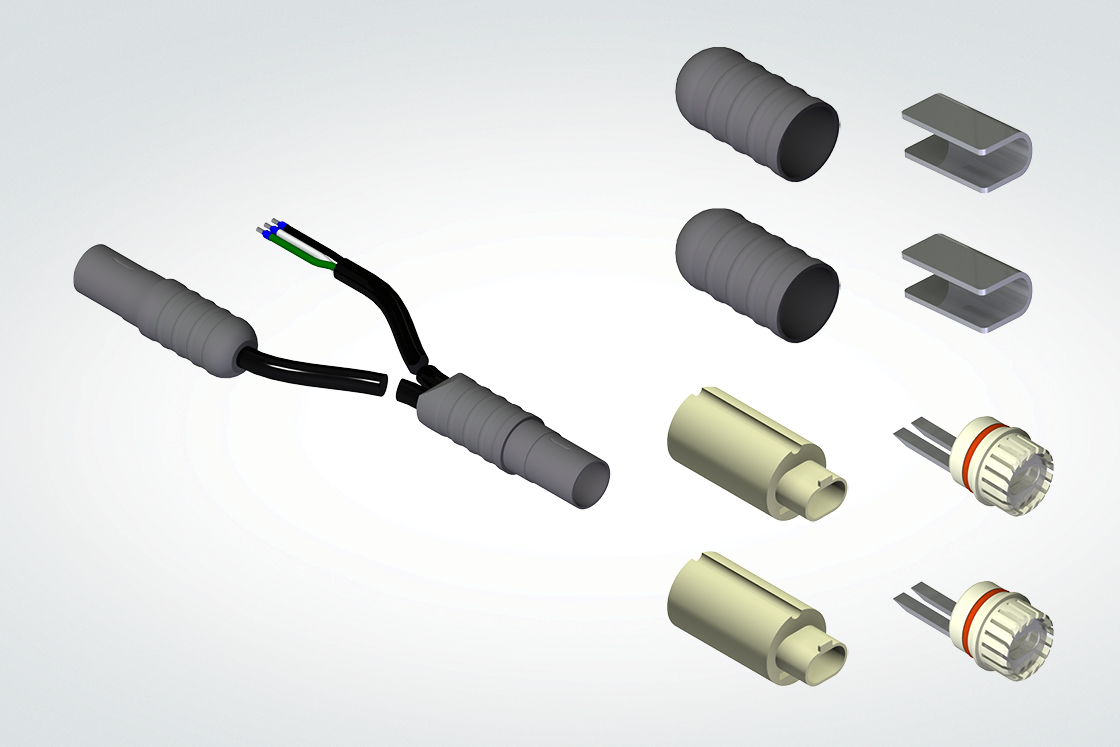

Powered Splice Kit

NA-B-PS / Code No.: 088L0763
Includes:

Powered splice assembly
(2) threaded caps
(2) sleeves
(2) clamping sleeves
(2) clamping sheets

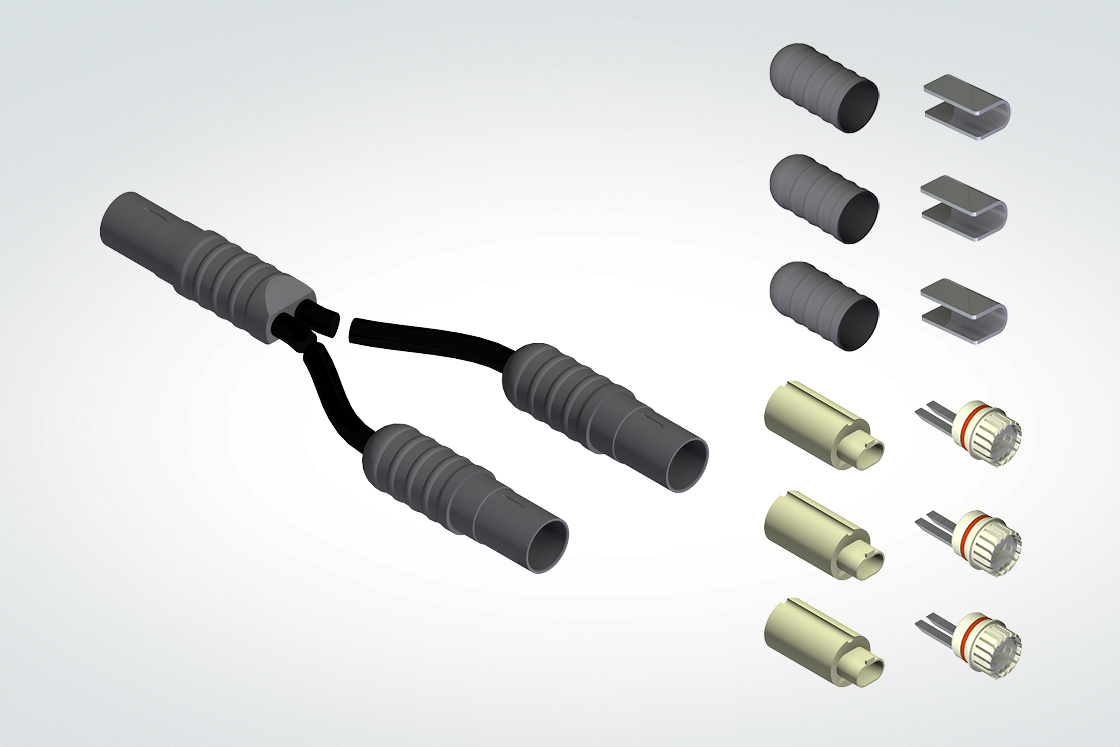

T-Splice Kit

NA-B-T / Code No.: 088L0764
Includes:

T-assembly
(3) threaded caps
(3) sleeves
(3) clamping sleeves
(3) clamping sheets

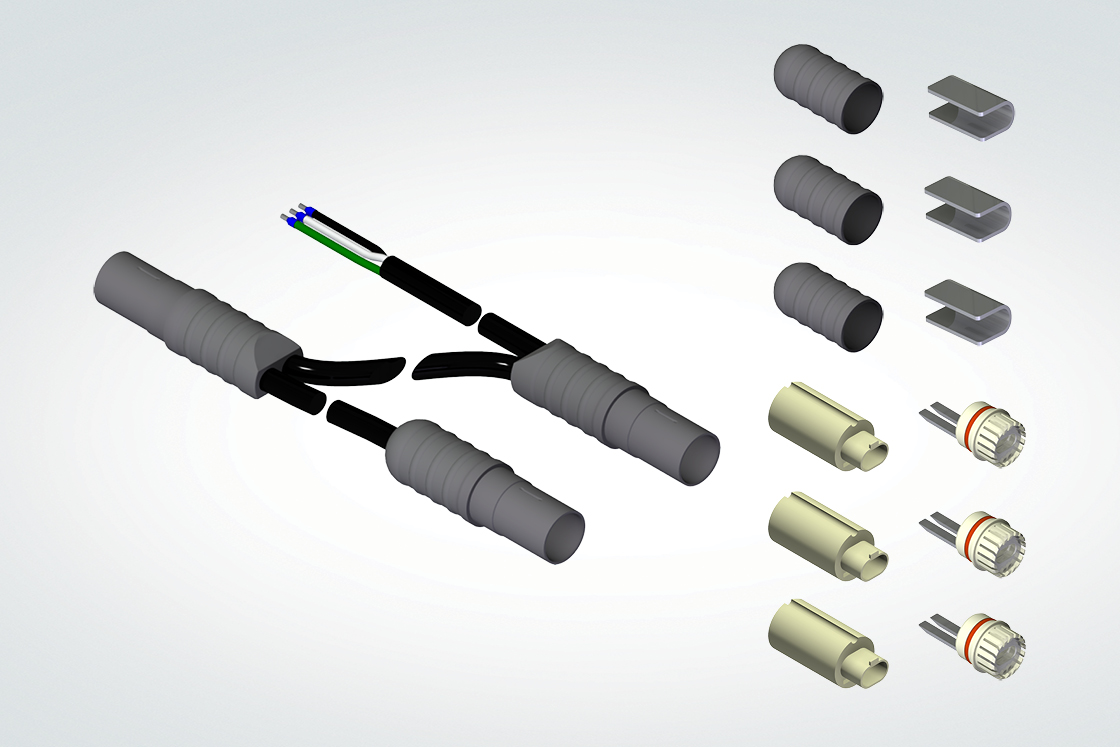

Powered T-Splice Kit

NA-B-PT / Code No.: 088L0765
Includes:

Powered T-assembly
(3) threaded caps
(3) sleeves
(3) clamping sleeves
(3) clamping sheets

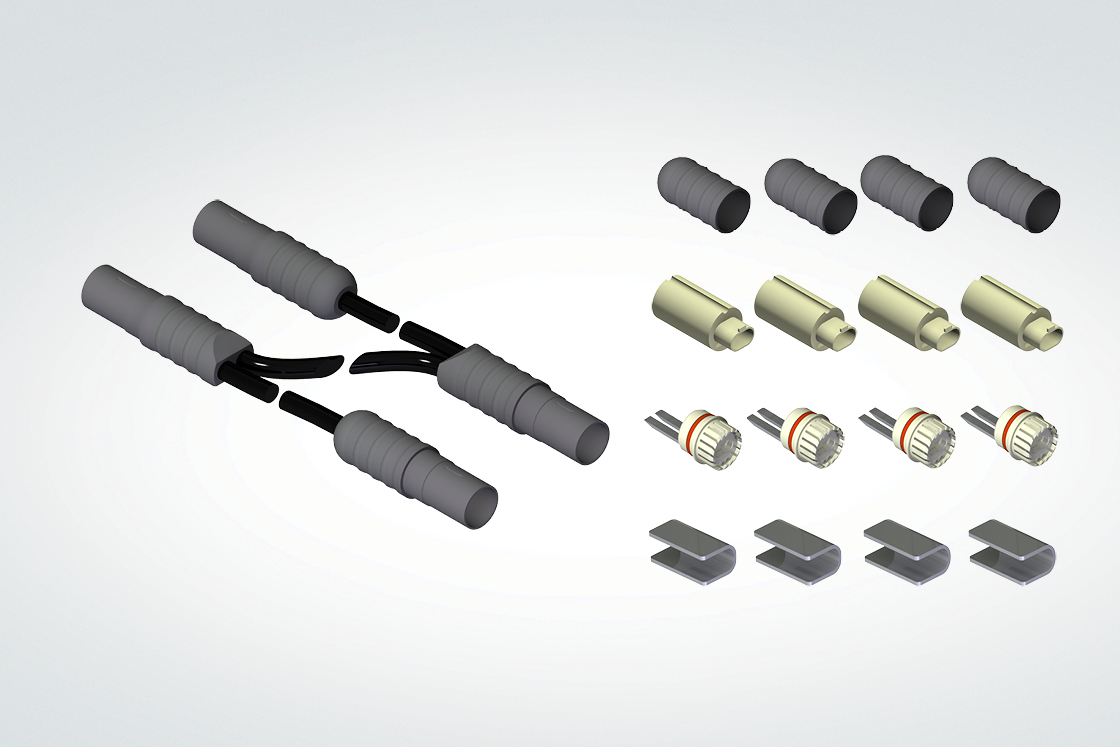

X-Splice Kit

NA-B-X / Code No.: 088L0766
Includes:

X-assembly
(4) threaded caps
(4) sleeves
(4) clamping sleeves
(4) clamping sheets

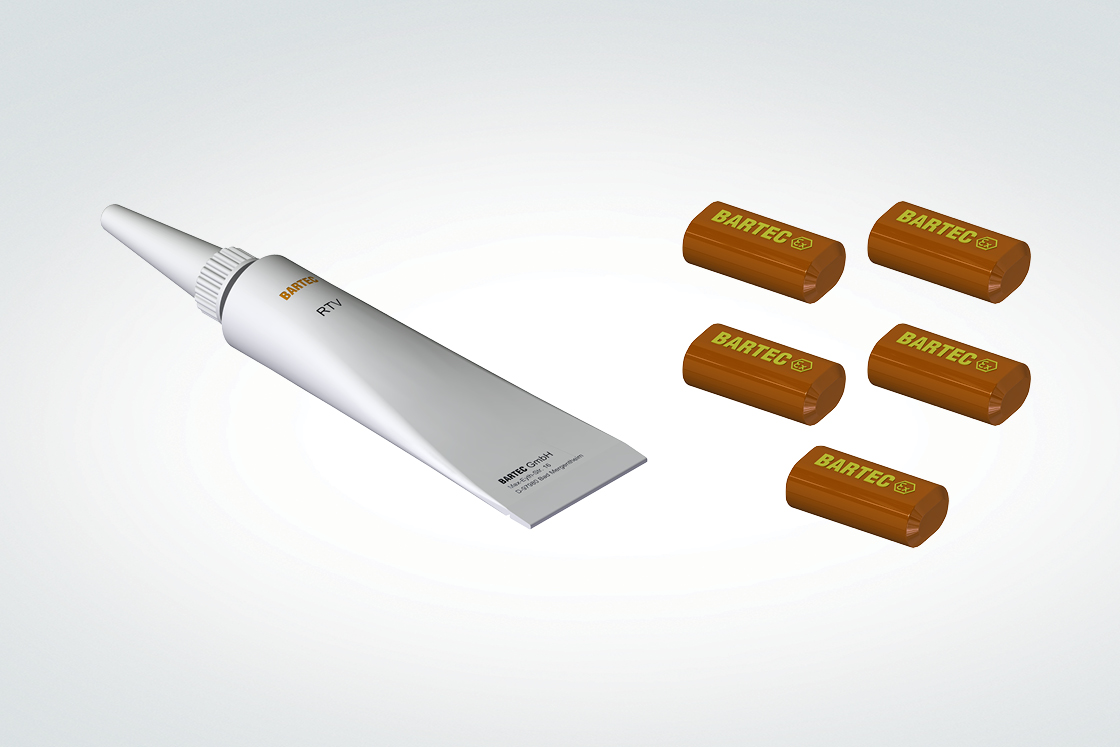

Silicone/End Seal Kit

NA-B-E / Code No.: 088L0767
Includes:

Silicone adhesive
(5) end caps

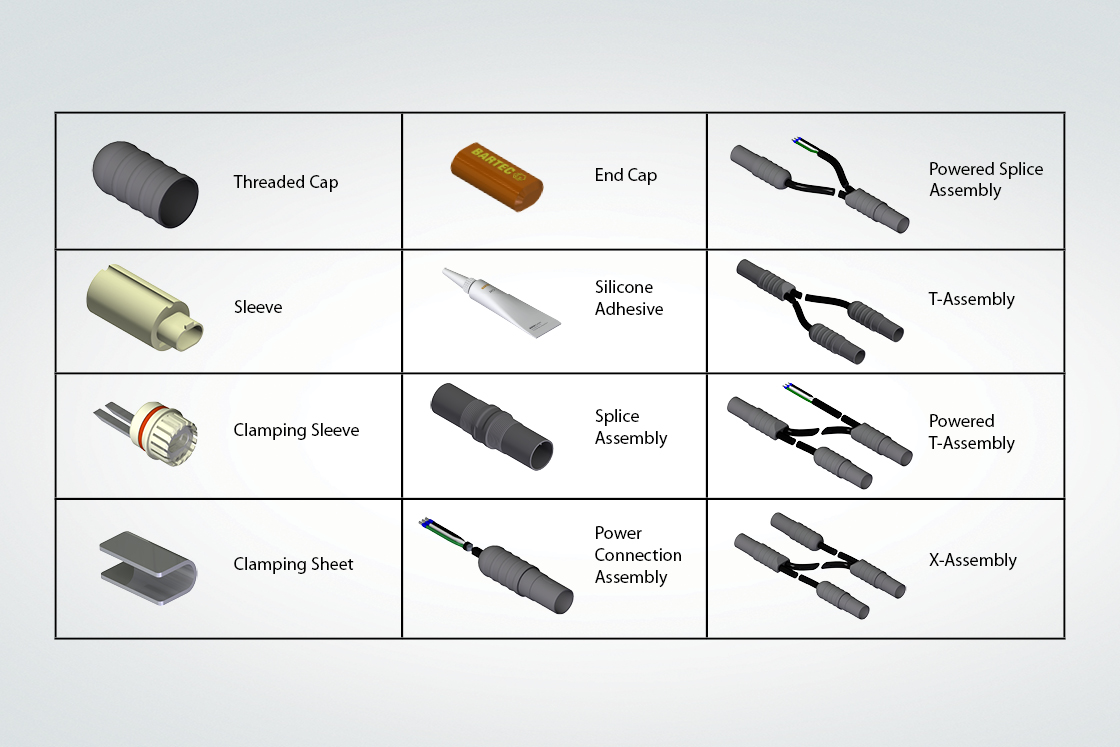

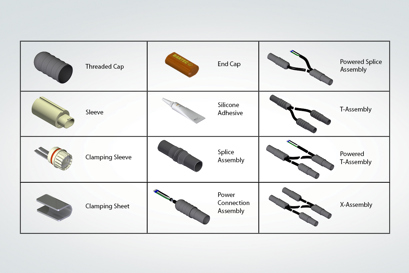

Component Identification

This visual guide with help identify the various products included in each of the Danfoss Connecto kits.
