Open up for intelligent power conversion
The iC7-Hybrid power converter is your ticket to join the energy transition. Tap into energy savings with hybrid and pure electric solutions in marine power conversion. Enhance smart grid applications such as energy storage, shore supply, charging and electrolysis.
Supply voltage and power range
- Voltage rating:
- 3 x 380-500 VAC, 460-800 VDC
- 3 x 525-690 VAC, 640-1100 VDC
- Current rating: 170-6400A
- Power range: 0.25-6.8 MVA and beyond
Need compact power conversion?
iC7-Hybrid is optimized for all power conversion applications and has an unrivaled power density with new filter technology.
Superior power conversion hardware
Intelligent power conversion for your industry
Join the energy transition
Features and benefits
Fit-for-purpose power conversion improves competitiveness and reduces engineering effort
Fast control loops meet the modern low-inertia network requirements

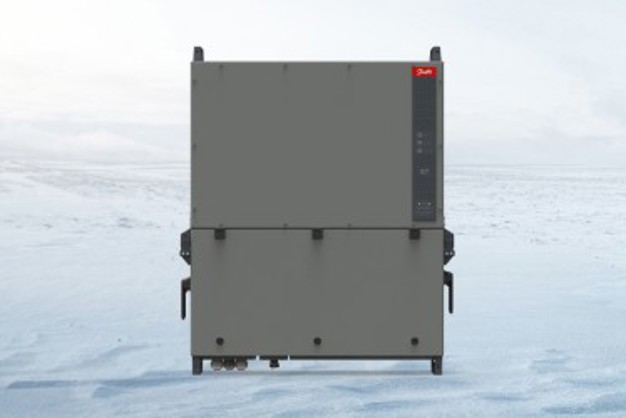

Highly compact design minimizes weight, space, and cooling costs
Reliable in difficult installation and operating conditions
True digital twin simulation models are always up-to-date and accurate, ready to use in your system simulation
Access and transfer data securely via cloud. Tamper-proof hardware protects your intellectual property
Modular concept scales to any application, with power range up to 6.8 MVA and beyond
One common iC7 platform serves both power conversion and AC drives in your applications, for shorter time to market and lower lifecycle costs
iC7-Hybrid – Engineered to order
Engineered-to-order (ETO) enclosed power conversion solutions give you a competitive edge on your competitors in both offshore and land-based power conversion applications. These ETO solutions can flexibly include Grid Converter, DC/DC Converter and Generator applications to match operational needs precisely. Whether it's for shaft generator, energy storage, or grid forming applications, or even more.
ETO solutions speed up your project delivery, while elevating performance and efficiency, and reducing commissioning effort. No matter the solution, our engineering expertise enables us to deliver solutions that precisely align with your operational needs.
You get project engineering solutions comprising pre-designed sections that reduce technical risk and cost for fully-electric and hybrid systems. Interested? Please contact your local sales office for further information.
Highly compact cooling unit
The iC7 series liquid-cooled system modules empower you to pack a lot of power into a small space, to optimize your systems – and give you new application opportunities. At the heart of this groundbreaking technology is the cooling unit. The cooling unit is service-friendly with easy access to the pump and pump shut-off valves.
