Simple selection and full flexibility
Danfoss' pilot valves mechanically control main valves and can be screwed directly to the main valve without the need for welding, soldering, or separate pilot lines. Small capacities can be controlled directly by the pilot valve without a main valve when installed in the matching CVH housing.
Featuring backwards compatibility, the complete line of pilots for ICS Flexline™ reduces the number of variants from eight to only four, simplifying ordering, inventory management, and storage.
With market trends moving in the direction of higher pressure systems, Danfoss' pilot valves cover all regulation, types, and ranges, including ammonia and CO2 applications.
The range of pilot valves consists of:
- Constant-pressure pilot valve, type CVP
- Differential-pressure pilot valve, type CVPP
- Pressure-operated pilot valve with reference pressure connection, type CVC
- Electronically operated constant-pressure pilot valve, type CVE
- Solenoid pilot valve, type EVM (NC)
- Solenoid pilot valve, type EVM (NO)
- Housing, type CVH for mounting in external pilot lines
These high quality pilot valves are based on Danfoss' patented membrane package and can either be screwed directly into ICS valves or connected via an external pilot line. Some valves feature surface-treatments (CVC, CVP, and CVPP) or stainless steel construction (CVE) for enhanced durability.
Features and benefits
One platform for all specifications—all pilot valves can be used on all main valve sizes
Several pilot valves can be connected in series or in parallel to provide many functions in the same main valve
Accurate pressure and temperature control
Full backwards compatibility
Compatible with HCFCs, non-flammable HFCs, R-717 (ammonia), and R-744 (CO2); use flammable hydrocarbons is not recommended
New pilot valves: Simple selection and full flexibility
The new Danfoss Pilot Valve program for ICS control valves is based on our patented and standardized membrane package, which ensures that all valves live up to the renowned Danfoss quality and reliability standards.

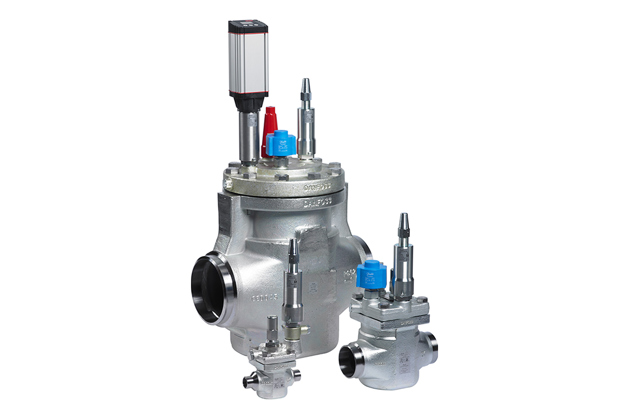

ICS, pilot operated servo valve
ICS is a compact, pilot operated servo valve. An ICS valve comprises three main components: a valve body, a function module and a top cover. The function of the ICS valve is defined by the pilot valves connected.
|Type||Name||Language||Valid for||Updated||Download||File type|
|Brochure||IR Pilot valves||English||Multiple||12 Sep, 2016||698.2 KB|
|Data sheet||Pilot valve, type CVP, CVPP, CVC, CVE, EVM and CVH||English||Multiple||29 Mar, 2021||3.4 MB|
|Installation guide||Pilot valves - CVP, CVPP, CVC, CVE and EVM||English||Multiple||22 Mar, 2017||803.4 KB|
|Data sheet||Pilot valves, types CVP, CVPP, CVC, CVE, EVM and CVH||English||United States||08 Oct, 2020||1.6 MB|
|Data sheet||Pilot-operated servo valve, type ICS||English||Multiple||07 Apr, 2022||25.5 MB|
|Data sheet||Pilot-operated servo valve, type ICS||English||United States||15 Oct, 2018||10.6 MB|
|Data sheet||Spare parts and accessories - Pilot valves Type CVP, CVPP, CVC and CVT||English||Multiple||12 Mar, 2018||361.2 KB|
